The PUK-STRUT mounting system consists of mounting channels, bracket supports, brackets and head plates. The mounting channels are perforated profiles C+ with slots 22 mm wide. The brackets can be mounted on the channels and continuously adjusted so they can be set at any height. The KA 30 arms are suitable for suspending mesh cable trays and cable trays up to 400 mm wide. The KA 41 brackets are also designed for cable ladders and trays up to 600 mm wide. The PUK-STRUT mounting system has versatile possible uses and is suitable for most areas of application..
PUK-STRUT Mounting System

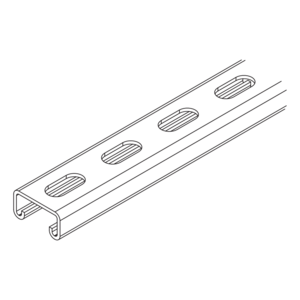

KHA 21
41x21 mm profile rail, perforated

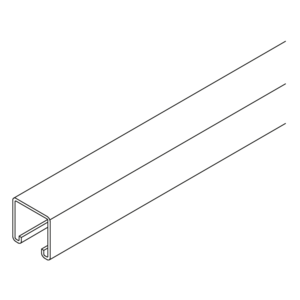

A 41
41x41 mm profile rail, unperforated

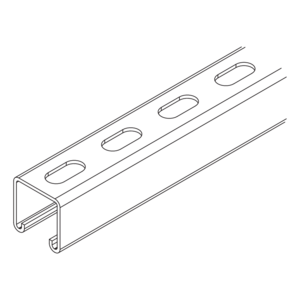

KHA 41
41x41 mm profile rail, perforated

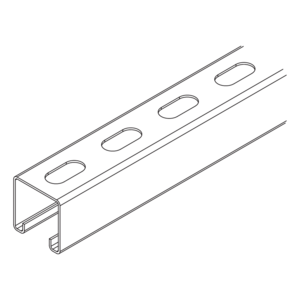

KHAL 41
41x41 mm profile rail, perforated

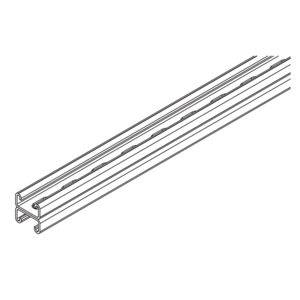

KHA 42
41x42 mm profile rail, perforated

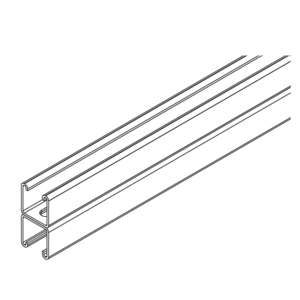

KHA 82
41x82 mm profile rail, perforated
KDAG 41
Ceiling bracket support, 41x41 mm

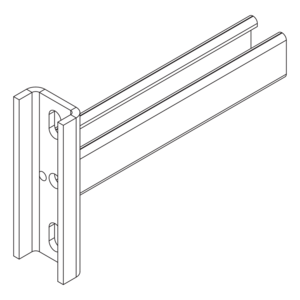

KA 41
Stem support, standard, KDAG 41, A/KHA 21/41/42/82

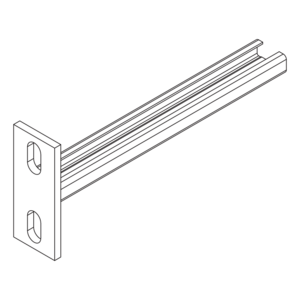

KA 30
Bracket, light

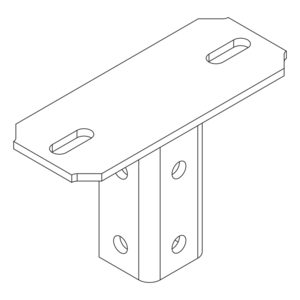

BGA 41
Screw-on head plate, KHA 41

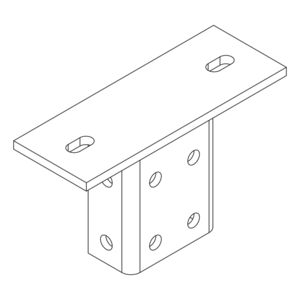

BGA 41/2
Screw-on head plate, KHA 41/82
BL 5
Mounting bracket

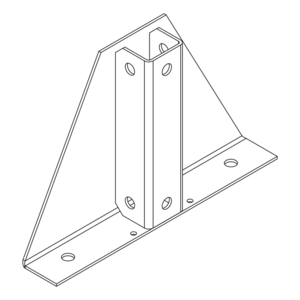

BGF 41
Screw-on head plate, KHA 41

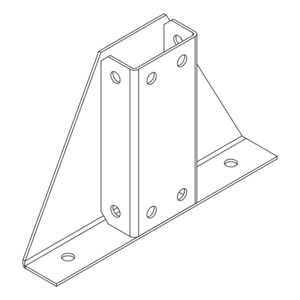

BGF 82
Screw-on head plate, KHA 82

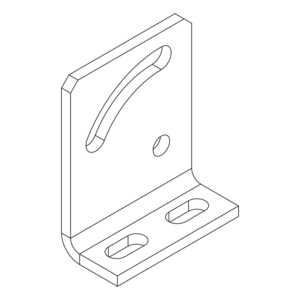

BLD
Diagonal adaptor

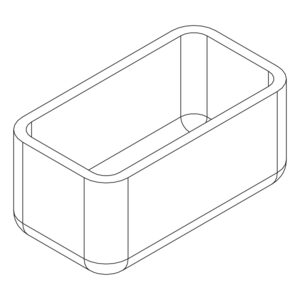

SA 1
Protection cap, cadmium yellow RAL 1021

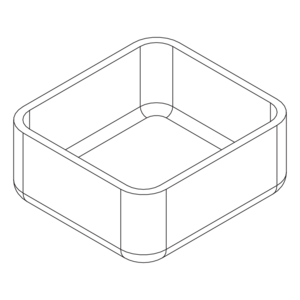

SA 2
Protection cap, cadmium yellow RAL 1021

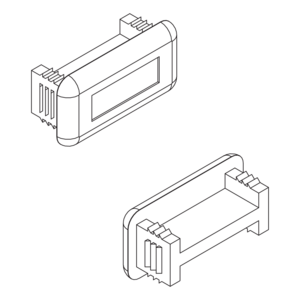

SAI 21
Protection cap, white/black
SAI 41
Protection cap, white/black

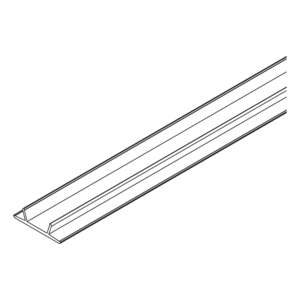

KHAD 22
Cover strip for mounting channel

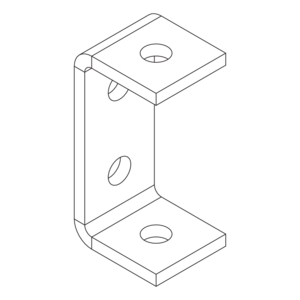

AKL 41
Rail clamp

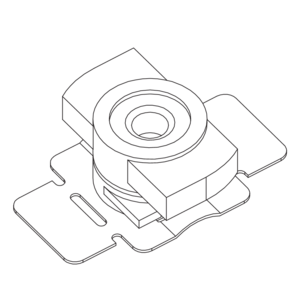

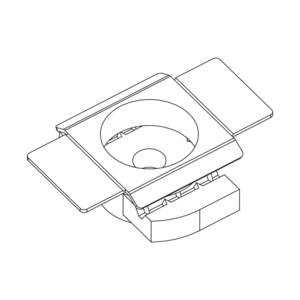

AMK 22
Channel nut with plastic bracket

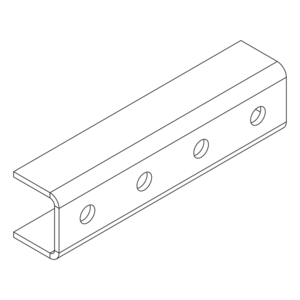

AV 41
Connector, A/KHA 21/41/42/82

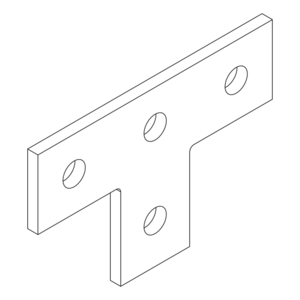

AVA
Rail connector, branch

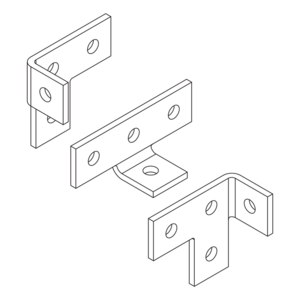

AVAW
Rail connector bracket

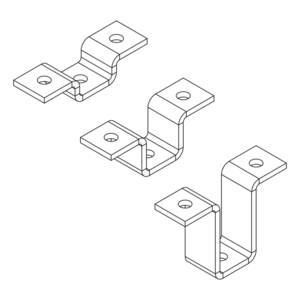

AVB
Rail connector bracket

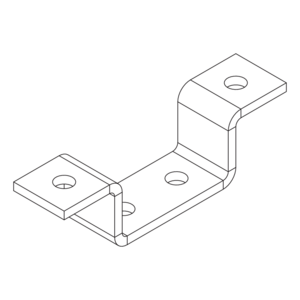

AVBD
Double channel connector bracket

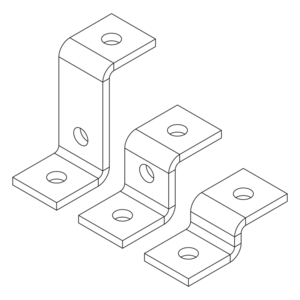

AVBL
Channel support bracket

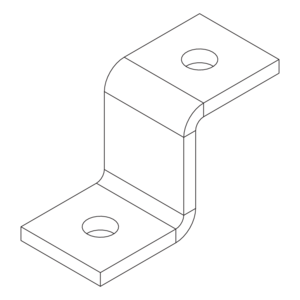

AVBLA
Channel joint connector

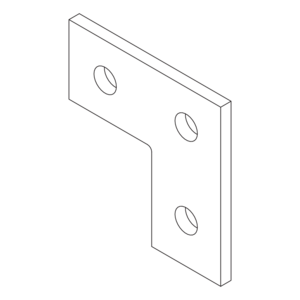

AVE
Rail connector, corner

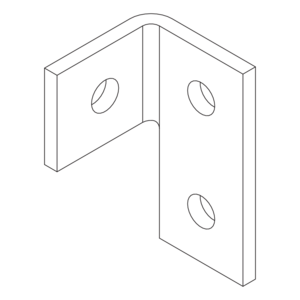

AVE-L
Left-hand channel joint connector

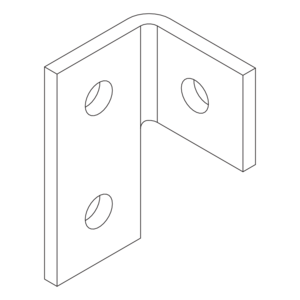

AVE-R
Right-hand channel joint connector

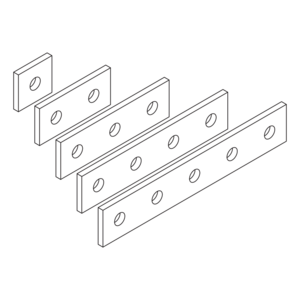

AVL
Rail connector

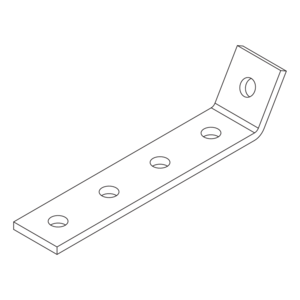

AVL 60
Channel connector, 60°

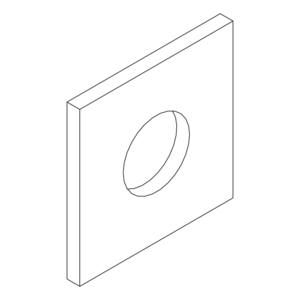

AVLI
Internal channel connector

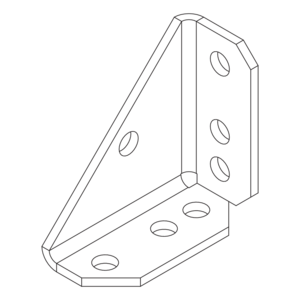

AVLK
Channel joint connector

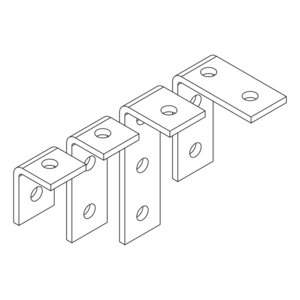

AVLW
Channel connector, 90°

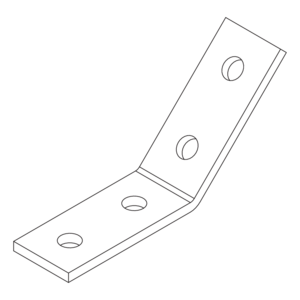

AVLW 45
Channel connector, 45°

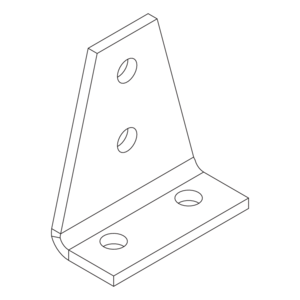

AVLWB
Channel connector

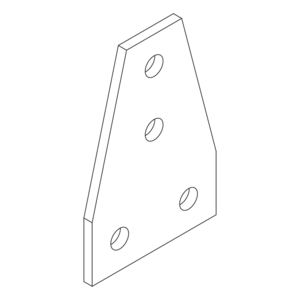

AVLWBF
Channel joint connector

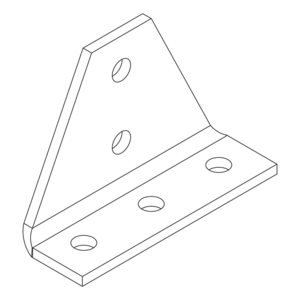

AVLWBL
Channel joint connector

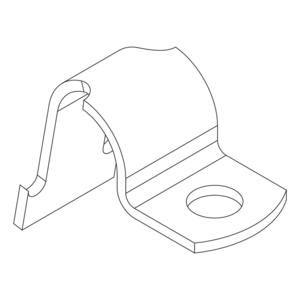

AVRS
Pipe clamp for mounting channels

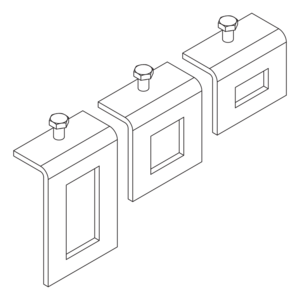

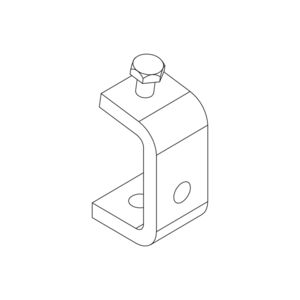

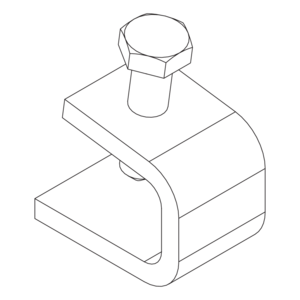

AVSK
Beam clamp for mounting channels

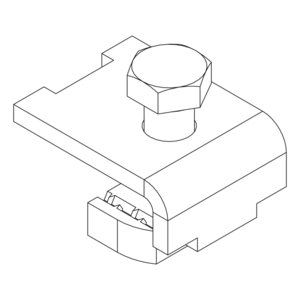

AVSKA
Beam clamp for mounting channels

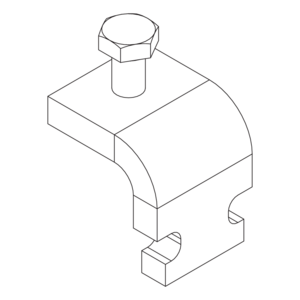

AVSKH
Beam clamp for mounting channels

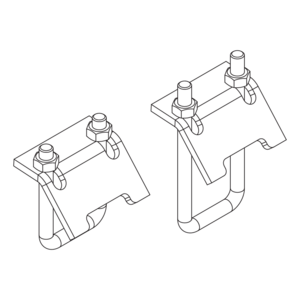

AVSKGB
Beam clamp for mounting channel

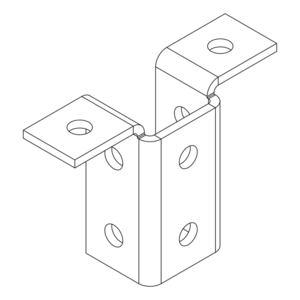

AVT
Channel joint connector
KZS
Cold zinc spray

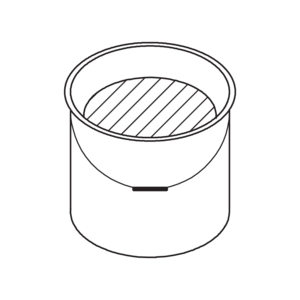

KZF
Cold zinc paint
