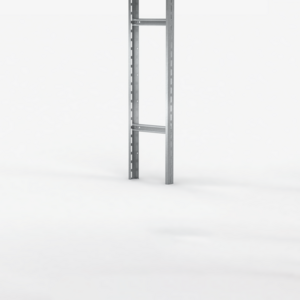

Vertical ladders are the ideal solution for routing cables and lines vertically. Typical areas of application include vertical ducts in buildings or industrial halls. The vertical ladders can be quickly and easily mounted directly on the wall or installed free-standing (STU 60/62 as well as ST 81/82) using head and foot plates, brackets or corresponding mounting accessories. The product’s strength is the way it allows cables to be attached securely in conjunction with cable clamps. The standard range includes vertical ladders in light, medium and heavy-duty designs. For truly effective cable routing, our heavy-duty vertical ladders enable you to attach cables on both sides. The system is available with perforated side rails with L, U or I profiles.

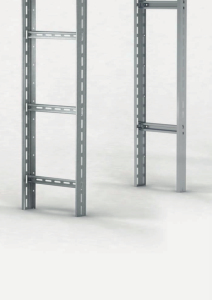

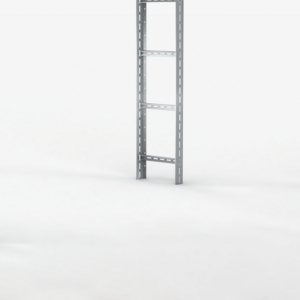

Vertical Ladders
Accessories

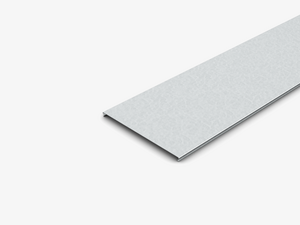

Vertical Ladder Covers

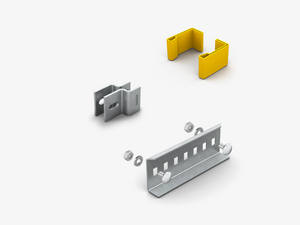

Vertical Ladder Accessories LGG 60

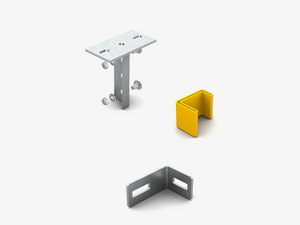

Vertical Ladder Accessories STU 50

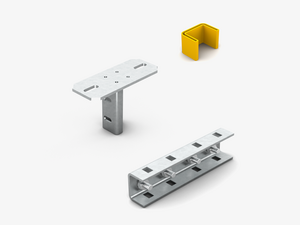

Vertical Ladder Accessories STU 60/62

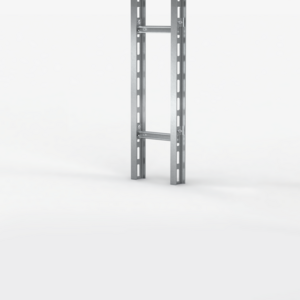

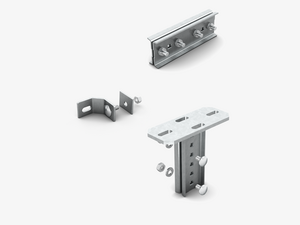

Riser Duct Accessories ST 81/82
Downloads
de
en
de
en
es
de
en
es
de
en
de
en
de
Cable Route Technical Information
Technical Information for vertical ladders LGG, STU, ST and accessories.
Cable support systems - Complete catalogue
Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.
Vertical Ladders - Complete Catalogue
Excerpt from the complete catalogue for Cable Support Systems
Installation Instruction Vertical Ladders
Assembly instruction for vertical ladders LGG 60, STU 50, STU 60, STU 62, ST 81, ST 82
Vertical ladder LGG, STU, ST - Compact overview
Compact overview for LGG 60, STU 50, STU 50-3E, STU 60, STU 62, ST 81, ST 82, LGV, LGTR, STD-A, RD, STLS, STUS
GA-2025/097 - YN - Fire protection statement
DIN 4102-12
Standardised load-bearing structure: Rising routes
Fire resistance duration: F30; F60; F90
Functional maintenance classes: E30; E60; F90
Cable load: ≤ 20 kg/m
Fastening distance: ≤ 1.2 m
Product/width: STU-BS 50 ≤ 600; LGG 60 ≤ 400; ST-BS 81 ≤ 600
Validity period: 3 February 2031
