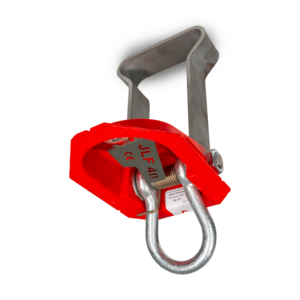

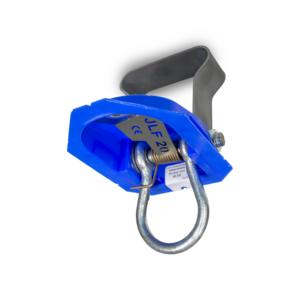

The JLF lift shaft anchor is an anchor point concreted into the ceiling of the lift shaft for material loads, e.g. protective equipment or spare parts, in the course of assembly or maintenance work. It consists of a plastic housing and a stirrup anchor, which is connected to a steel shackle via a steel bolt. The anchor is positioned on the cover by means of marking points and then nailed to the formwork. It is concreted flush with the slab into the reinforced concrete slab with a minimum concrete quality of C25/30. The JLF is delivered as a ready-to-install component with a load capacity of 20 kN or 40 kN.
Lift Shaft Anchor JLF
Downloads
de
de
en
de
en
de
en
Flyer Lift Shaft Anchor JLF
Flyer
PDF, 171.43 KB
Lift shaft anchor JLF - Assembly instruction
Assembly Instructions
European Technical Assessment (ETA) for Lift Shaft Anchor JLF
ETA 21/1071 of 02/12/2023

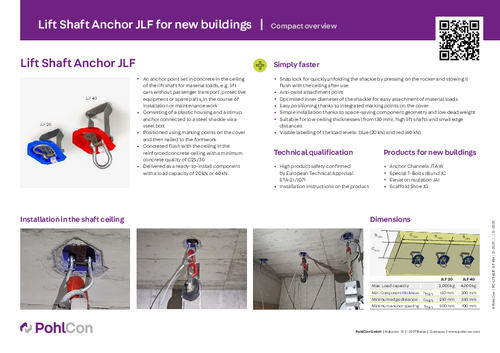

Lift Shaft Anchor JLF - Compact overview
Compact overview for Lift shaft anchor JLF
Services: From planning to utilisation
We support you at every step of your construction project. With high-quality products including dimensioning software for optimum planning. If the standard product is not suitable for your project, our manufacturers will configure a product that is precisely tailored to your needs.
