JXA W hot-rolled, toothed anchor channels form a secure, interlocking, non-sip connection when used with the suitable toothed t-bolts. They can absorb high longitudinal, transverse and centric loads and so can be used flexibly in different environments. As hot-rolled rails, they are concreted into reinforced and non-reinforced components. They are ideal for dynamic and seismic loads. On request, they are available as anchor channel pairs, corner pieces or as special solutions.
Anchor Channel JXA W, toothed
JXA W 29/20
Anchor channel, hot-rolled, toothed, with round or I anchor
JXA W 38/23
Anchor channel, hot-rolled, toothed, with round or I anchor

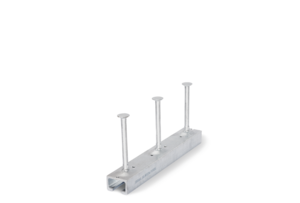

JXA W 53/34
Anchor channel, hot-rolled, toothed, with round or I anchor

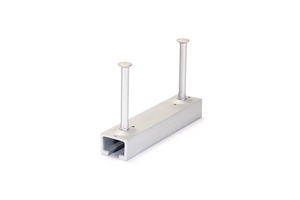

JXA W 64/44
Anchor channel, hot-rolled, toothed, with round or I anchor
Vorteile
- Fast, efficient and reliable fixing of heavy loads in all directions
- High fatigue strength under dynamic loads
- Time-saving and cost-effective assembly using toothed t-bolts without drilling
- Available in stainless steel for corrosive environments
- Small edge clearances possible
- Reusable attachment
- Easy compensation of structural tolerances
- Approved almost worldwide
- Suitable for DGNB and LEED certified projects
- Special lengths available on request
Downloads
de
en
de
en
de
en
de
en
de
en
de
en
pl
de
en
Technical information Channels and Accessories
Technical information

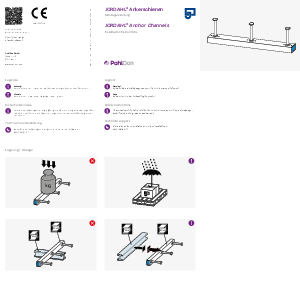

Installation instructions Anchor Channels JTA
Assembly Instructions
Anchor Channels for new buildings - Compact overview
Compact overview of anchor channels JTA K, JTA W, JZA K, JXA W, JTA-PC W

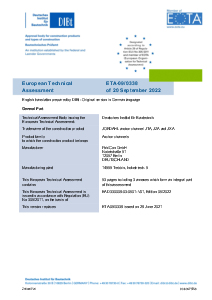

ETA 09/0338 Anchor Channels JTA, JZA, JXA and JXA-PC
Approval

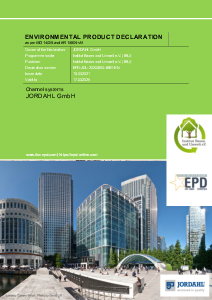

EPD Environmental Product Declaration Channel Systems
Declaration

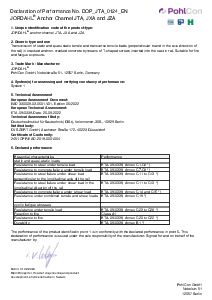

Declaration of Performance Anchor Channels JTA, JZA, JXA und JXA-PC
Declaration of Performance No. DOP_JTA_1124_EN
Price list 2026 Shell construction / facade
Valid from February 1st, 2026
