Stainless steel installation units provide direct and safe access to power and data connections. The high-quality material and classic design make them ideal for use in modern offices, event venues and showrooms. The cartridges are especially suitable for rooms with damp-cleaned or dry-cleaned floors with office traffic loads, e.g. parquet. They have a floor covering protection frame and are available in both square and round versions.
Installation Units Made of Stainless Steel

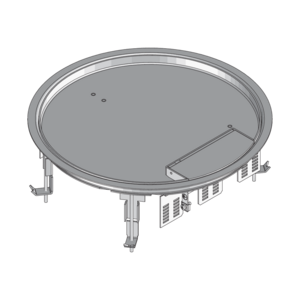

UEKDD R E
Stainless steel hinged cover unit, 3x, round

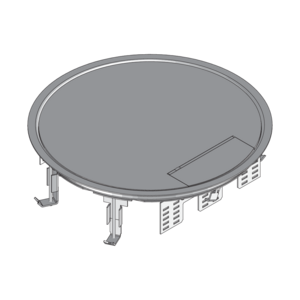

UEKDD RP E
Stainless steel hinged cover unit, 3x, round, flat

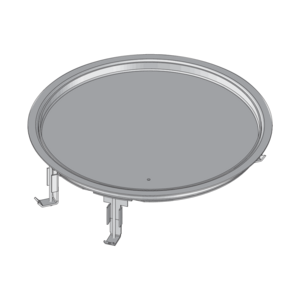

UEBDD R E
Stainless steel dummy cover unit, 3x, round

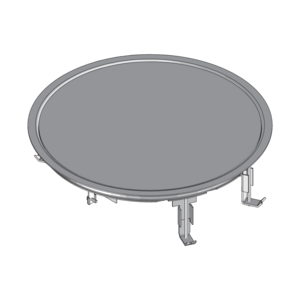

UEBDD RP E
Stainless steel dummy cover unit, 3x, round, flat

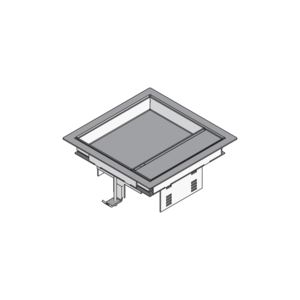

UEKDD1-2 V E
Stainless steel hinged cover unit, 1x, square

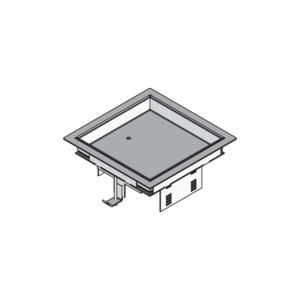

UEBDD1-2 V E
Stainless steel dummy cover unit, 1x, square

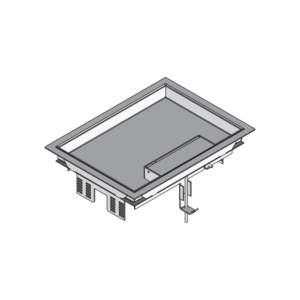

UEKDD2 V E
Stainless steel hinged cover unit, 2x, square

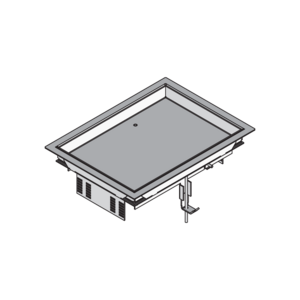

UEBDD2 V E
Stainless steel dummy cover unit, 2x, square

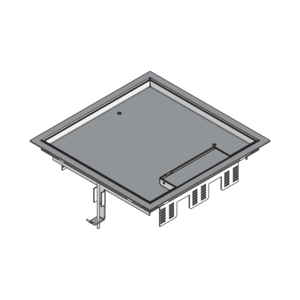

UEKDD V E
Stainless steel hinged cover unit, 3x, square

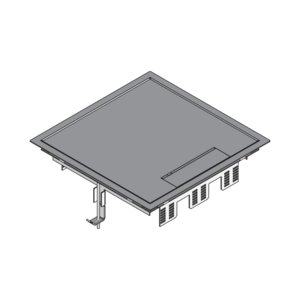

UEKDD VP E
Stainless steel hinged cover unit, 3x, square, flat

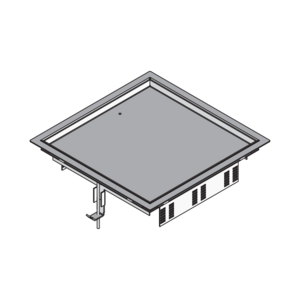

UEBDD V E
Stainless steel dummy cover unit, 3x, square
