In addition to the covers, optional accessories in various materials and coatings are available to supplement the cable support system, e.g. side connectors, separating strips, exit plates or assembly plates.
Cable Ladder Accessories

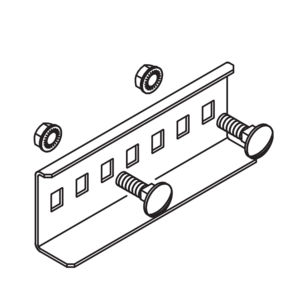

LGV 60
Cable ladder connector, height = 60 mm

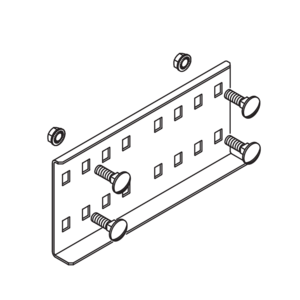

LGV 100
Cable ladder connector, height = 100 mm

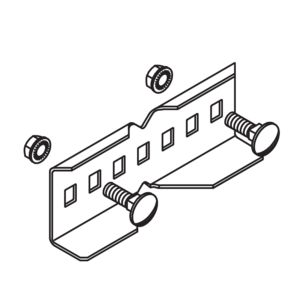

LGVH 60
Cable ladder connector, horizontal, height = 60 mm

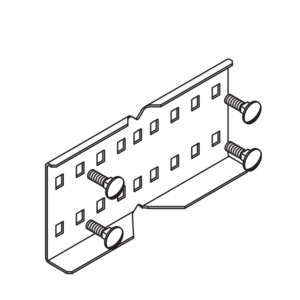

LGVH 100
Cable ladder connector, horizontal, height = 100 mm

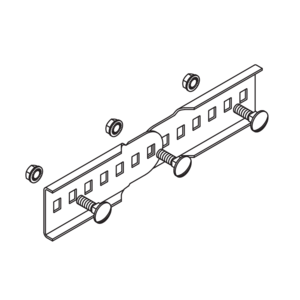

LGVV 60
Cable ladder connector, vertical, height = 60 mm

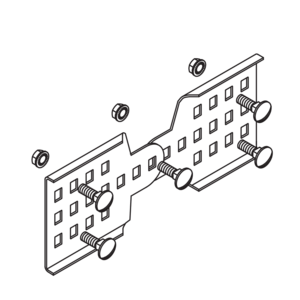

LGVV 100
Cable ladder connector, vertical, height = 100 mm

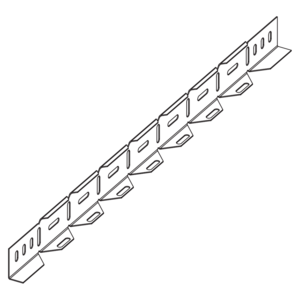

LGVHV 60
Cable ladder connector, horizontal, variable, height = 60 mm

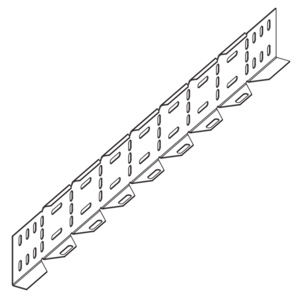

LGVHV 100
Cable ladder connector, horizontal, variable, height = 100 mm
KLU
Clamp fastening set
KLTL
Beam clamp for cable ladders
KLUT
Clamping fasteners
LGTR 60
Cable ladder divider, height = 33 mm
LGTR 100
Cable ladder divider, height = 80 mm

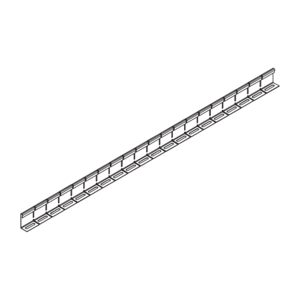

LGTRV 60
Cable ladder divider, variable, height = 33 mm

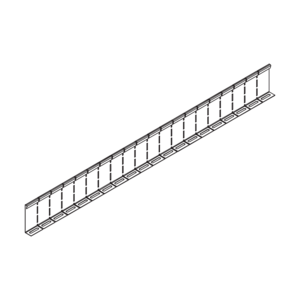

LGTRV 100
Cable ladder divider, variable, height = 80 mm
LAB 60
Cable ladder end plate
LAB 100
Cable ladder end plate
LGKAB
Cable ladder drop-out plate

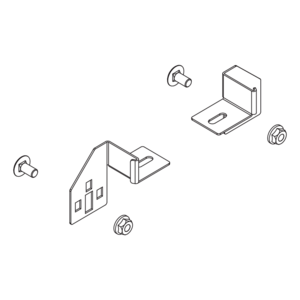

SABL
Side outlet plate Cable ladder
KATB
T-joint connector plate
KATBS
T-joint connector plate, sideways
LGVTO
Cable ladder connector, T-joint, top

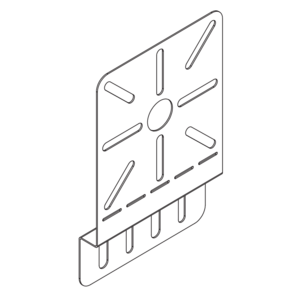

MP-L
Mounting plate

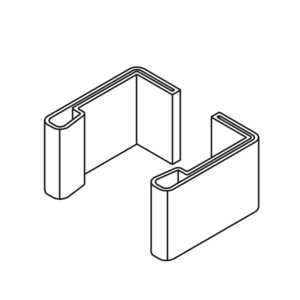

SL 60
Protection cap
SL 100
Protection cap
EL
Fibre cement panel
KZS
Cold zinc spray

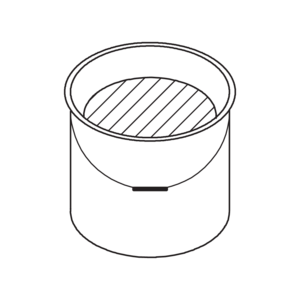

KZF
Cold zinc paint
