Wide-span cable trays are a flexible, integrated cable support system when used in combination with the corresponding formed parts, covers, accessories and support structures. The formed parts include horizontal and vertical arches, crossings and branches – i.e. elements that create changes of direction. The formed parts are available in various materials and coatings.
Wide-Span Cable Ladder Formed Parts

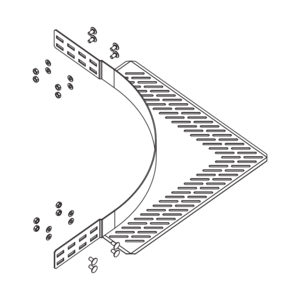

WPEA 100
Wide-span add-on corner

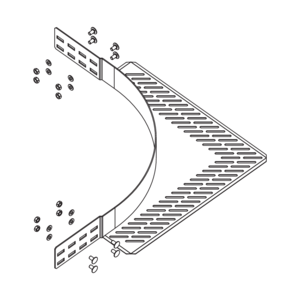

WPEA 120
Wide-span add-on corner

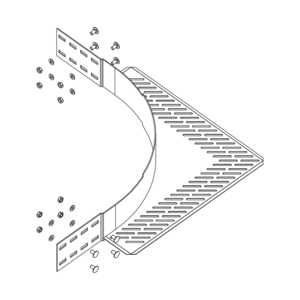

WPEA 150
Wide-span add-on corner

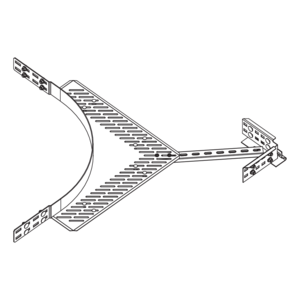

WPLEAB 100
Wide-span cable ladder add-on corner

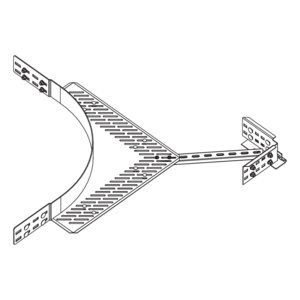

WPLEAB 120
Wide-span cable ladder add-on corner

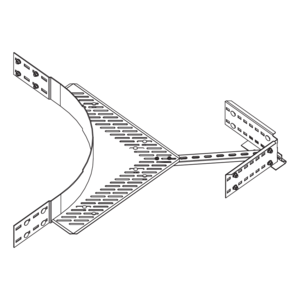

WPLEAB 150
Wide-span cable ladder add-on corner

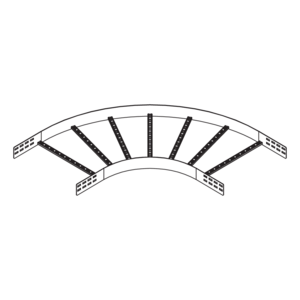

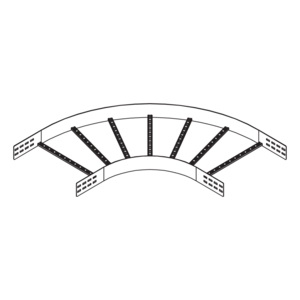

WPLB 100
Wide-span cable ladder bend, height = 100 mm

WPLB 120
Wide-span cable ladder bend, height = 120 mm

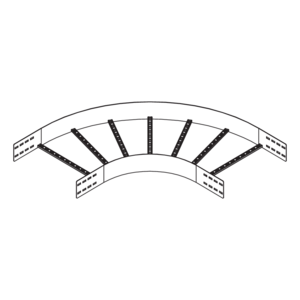

WPLB 150
Wide-span cable ladder bend, height = 150 mm

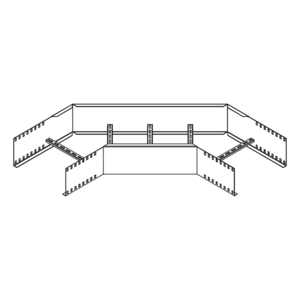

WLB 200
Wide-span cable ladder bend, height = 200 mm

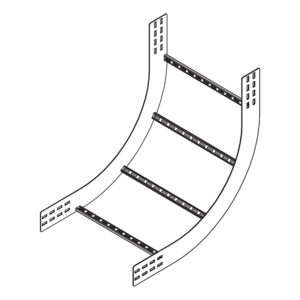

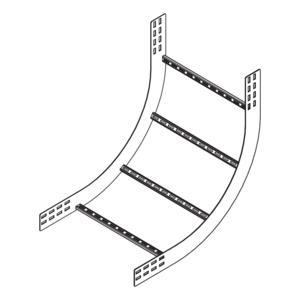

WPLS 100
Wide-span cable ladder riser, height = 100 mm

WPLS 120
Wide-span cable ladder riser, height = 120 mm

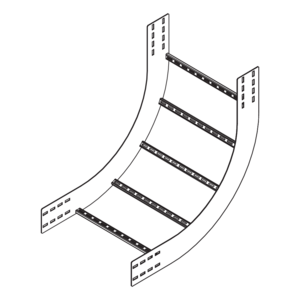

WPLS 150
Wide-span cable ladder riser, height = 150 mm

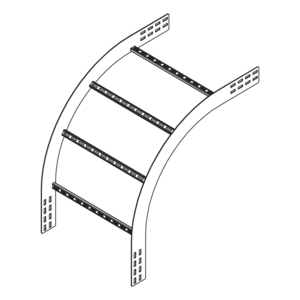

WPLF 100
Wide-span cable ladder riser, height = 100 mm

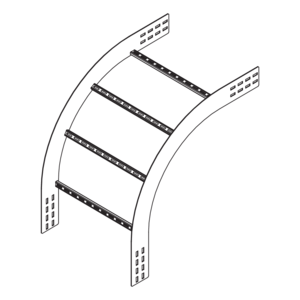

WPLF 120
Wide-span cable ladder riser, height = 120 mm

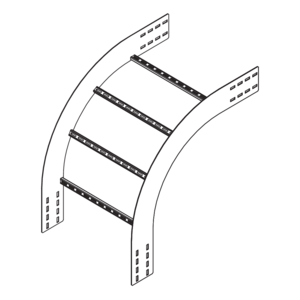

WPLF 150
Wide-span cable ladder riser, height = 150 mm

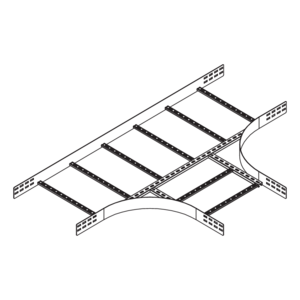

WPLA 100
Wide-span cable ladder tee, height = 100 mm

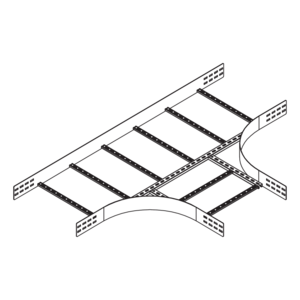

WPLA 120
Wide-span cable ladder tee, height = 120 mm

WPLA 150
Wide-span cable ladder tee, height = 150 mm

WLA 200
Wide-span cable ladder branch, height = 200 mm

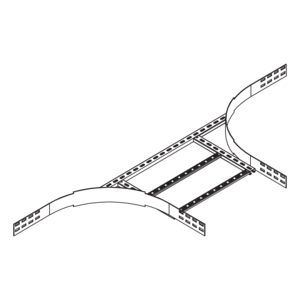

WPLAA 100
Wide-span cable ladder add-on tee, height = 100 mm

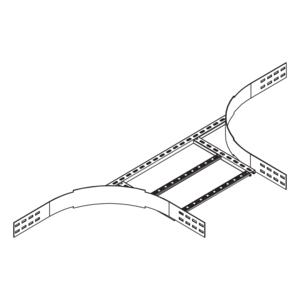

WPLAA 120
Wide-span cable ladder add-on tee, height = 120 mm

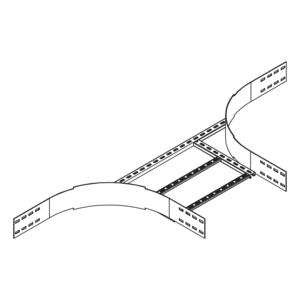

WPLAA 150
Wide-span cable ladder add-on tee, height = 150 mm

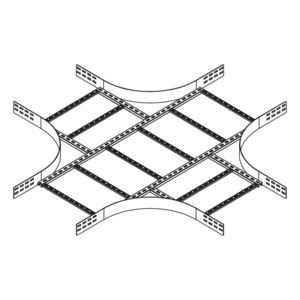

WPLK 100
Wide-span cable ladder crossing, height = 100 mm

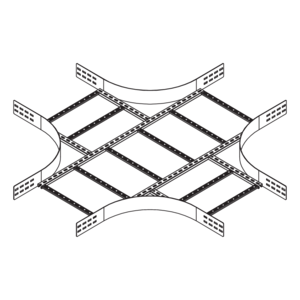

WPLK 120
Wide-span cable ladder crossing, height = 120 mm

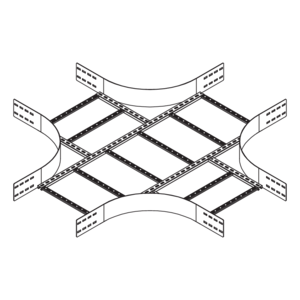

WPLK 150
Wide-span cable ladder crossing, height = 150 mm

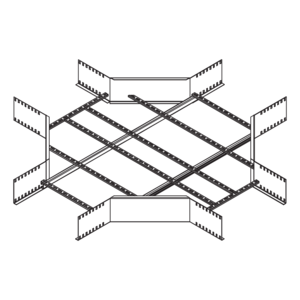

WLK 200
Wide-span cable ladder crossing, height = 200 mm
Benefits
- Creates changes of the cable routing direction
- Cable-friendly guide
- Easy to assemble
Downloads
en
de
es
ru
de

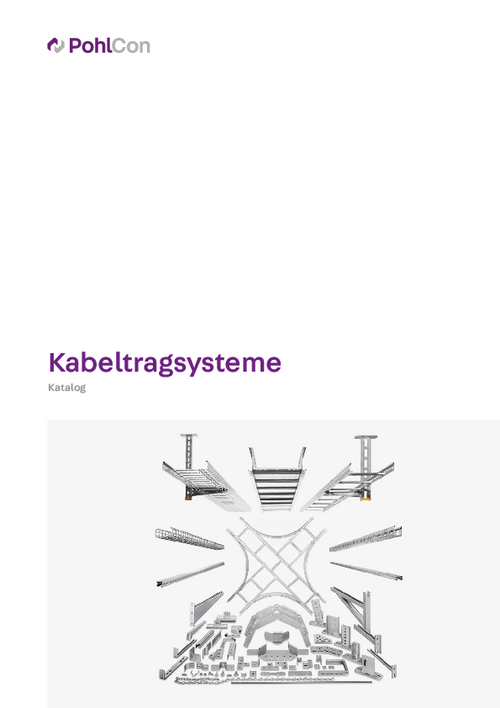

Cable support systems - Complete catalogue
