Cable management in data centers
The basis for efficient data center infrastructures
Well-designed cable management in the data center is crucial for secure, efficient and future-proof operation. In modern data centers, both the power density and the requirements for scalability, ease of maintenance and fire protection are constantly increasing. Orderly cable routing not only ensures clarity, but also improves cooling, reduces the risk of failure and facilitates future expansion.
We support you in planning cable infrastructures that will function in the long term. With generously dimensioned cable trays, clear structures and flexibly expandable systems, you can create the basis for efficient data centre operation – regardless of whether it is a new installation, a conversion or the expansion of an existing data centre.
Cable trays in data centers
Flexible systems for every requirement
Cable trays in data centers must meet high technical and organisational requirements. Different cable types, high loads and changing tray routes require modular and robust solutions. PohlCon offers a comprehensive cable management system that can be precisely adapted to your plans.

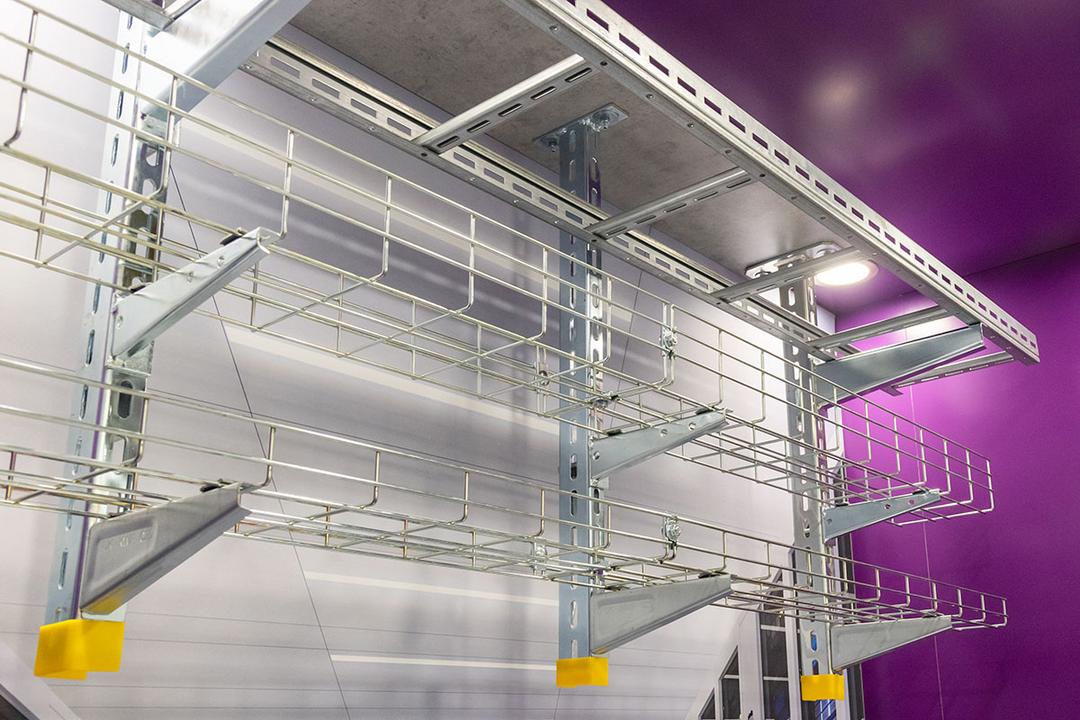

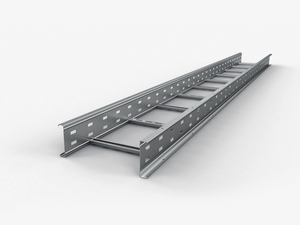

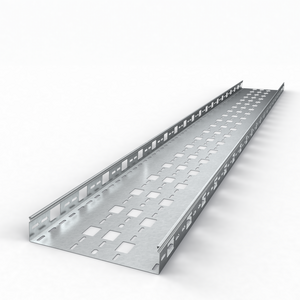

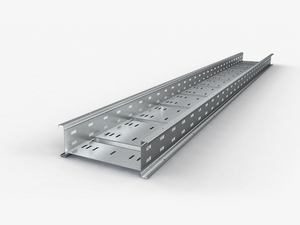

The product range includes cable trays and installation trays for structured cable routing, mesh trays and cable ladders for optimum ventilation, as well as wide-span cable trays and wide-span cable ladders with support distances of up to 10 metres. The system is supplemented by brackets for wall, ceiling or beam mounting, as well as support structure systems in U, I and STRUT designs. Swing hangers and flexible C-profile rails are also available for special requirements. This allows you to implement stable, easy-to-install and scalable cable tray solutions in your data center.
Your requirements, our product solutions
Our extensive product range gives you access to a wide variety of solutions and options – including customised special solutions. High quality, flexible, from a single source.
Scalable size
When planning the network infrastructure, consideration should be given to future conversion and expansion capabilities.
PohlCon's cable management systems such as the U-System are ideally suited to variable requirements. They can be individually adapted, are easy to install and can be easily expanded thanks to a wide range of moulded parts. The flexibility of our system is an advantage that data centre operators can rely on.
Protection in case of fire
Separate fire protection zones and the redundant design of the network infrastructure enable the system to continue operating in the event of a fire. Components designed to maintain functionality allow more time for evacuation and firefighting measures.

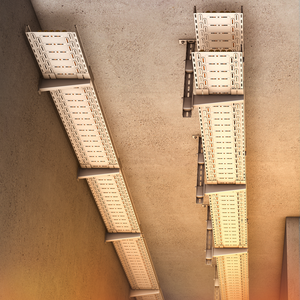

PohlCon offers cable management systems that can be used as system-tested support structures or standard support structures in accordance with DIN 4102-12. Thanks to their higher fire resistance, the cable systems remain functional even under high fire loads.
Material and surface coating
Our products are available in various material and surface variants to meet the prevailing conditions and specific surface requirements. Corrosion protection is our top priority.
PohlCon manufactures hot-dip galvanised, Sendzimir galvanised and electro-galvanised components. Thanks to the cathodic protection effect, they are permanently protected against corrosion even after subsequent processing. Products made of stainless steel are used for the most demanding corrosion protection requirements.
Cable tray planning in data centers
Secure, scalable and future-proof
Professional cable tray planning in data centers takes into account not only current requirements but also future expansion stages. Clear reserves, easy accessibility and compliance with relevant standards are crucial. Our cable management systems support you with tried-and-tested solutions that are designed for durability.
Thanks to a variety of materials and surface options, the systems can be adapted to almost any environment – depending on the product, also in compliance with fire protection regulations, such as DIN 4102-12. Whether you have a hyperscale data center or a specialised computer center, PohlCon helps you plan cable routes in a structured, economical and sustainable manner. We accompany you from planning to implementation and help you to actively future-proof your cable management in the computer center.
Cable management systems for data centers
Expertise and quality – our performance promise
Creating, sharing and managing large amounts of data is a defining feature of our time – and the infrastructure required for this is correspondingly complex. Data centers are the place where everything comes together.
PohlCon has long been your trusted partner when it comes to high-quality building products for the construction of data centers. Our product solutions and systems cover a wide range of applications. A broad range of services rounds off our customer-oriented service profile.
Documents
de
en
es
Cable support systems - Complete catalogue
Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.
PDF
Choose languageChoose language
de
en
Data Center focus brochure
Product solutions by PohlCon for data centers
PDF
Choose languageChoose language
