Double channel connector bracket
The double channel connector bracket AVBD connects two parallel mounting channels (two A 41, KHA 41, KHAL 41 or one KHA 82) with a crossing channel as an intersection. It has fixing holes with Ø 13 mm and is made of hot-dip galvanised steel. Fastening accessories must be ordered separately, depending on the application.

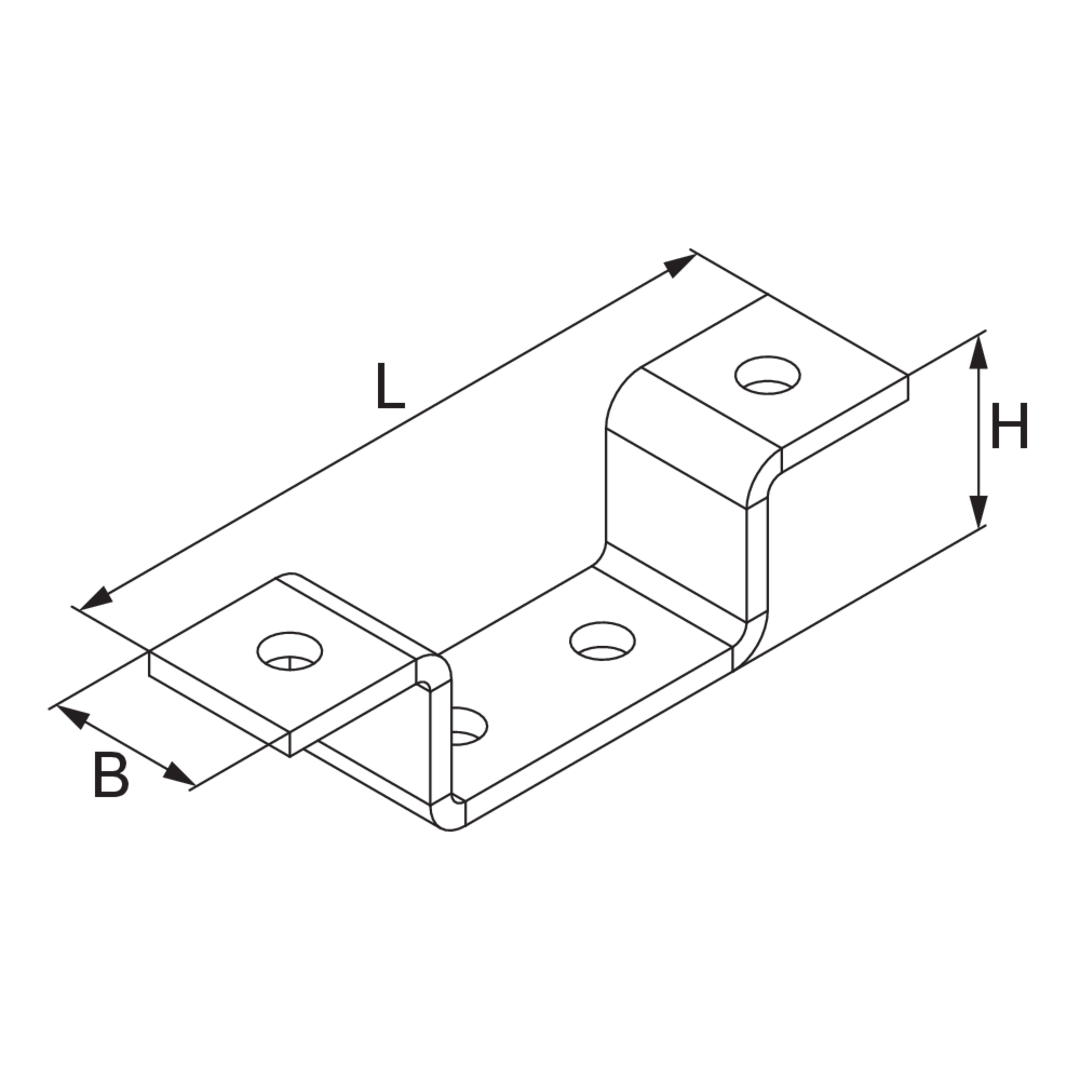

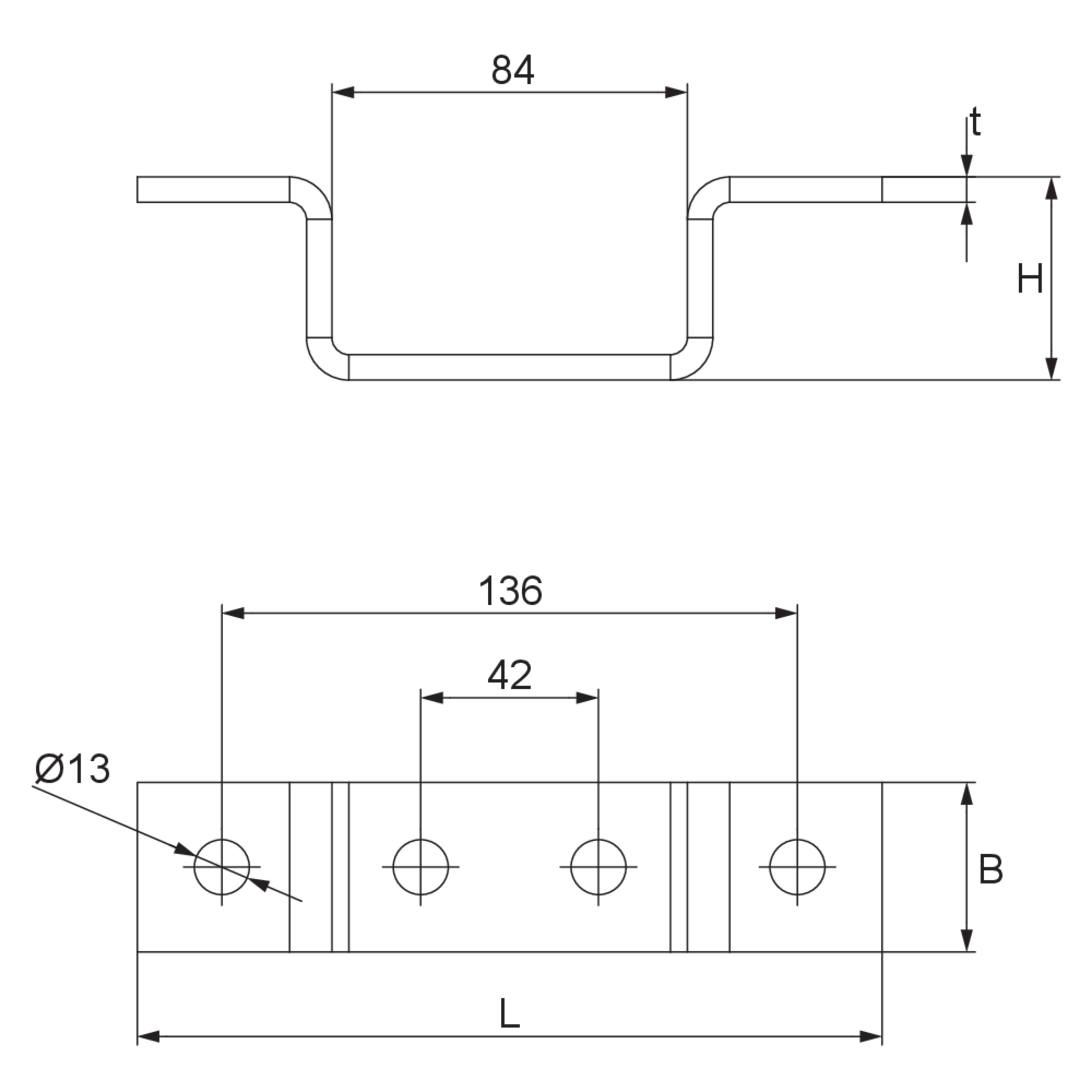

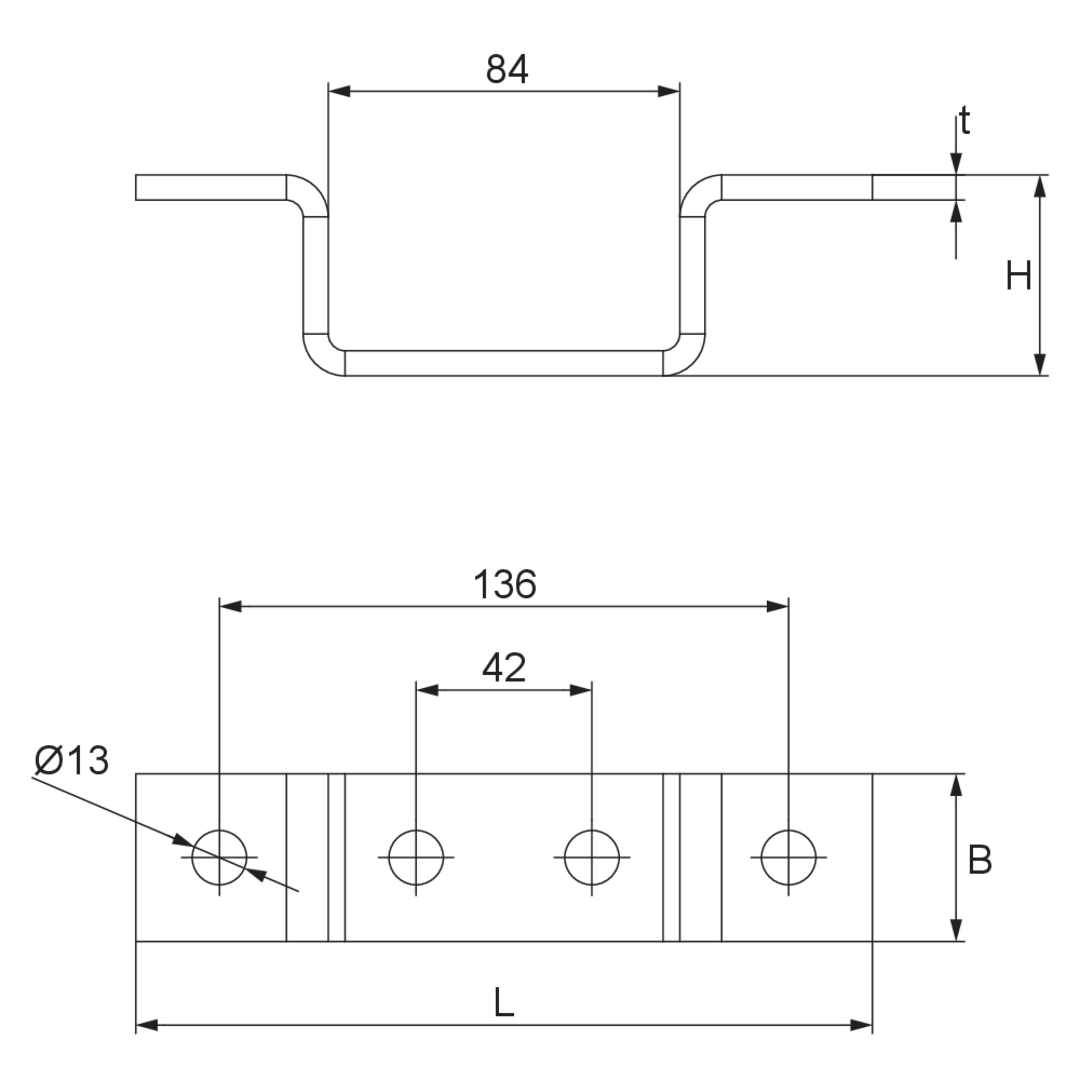

H
height
B
width
L
length
t
material thickness
G
Weight per storage unit
