In combination with the PENTAFLEX® module, two single-row FERBOX® rebend connections become a waterproof reinforcement connection. FERBOX® rebend connectors connect two reinforced concrete parts together statically or structurally. To seal the resulting construction joint and so prevent the passage of water through the joint, another reinforcement box with PENTAFLEX® joint sheet is additionally installed between two single-row FERBOX® reinforcement boxes – the PENTAFLEX® module. This guarantees the watertightness of construction joints with rebend connections using proven PENTAFLEX® technology.
PENTAFLEX® Module

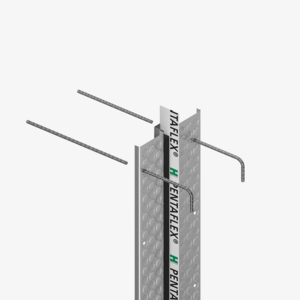

PENTAFLEX® Module
Water impermeable reinforcement connection

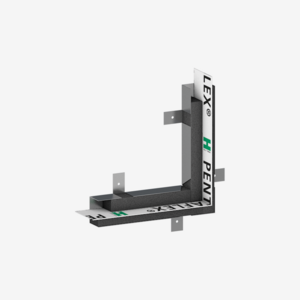

PENTAFLEX® Module Corner
Water impermeable reinforcement connection (corner connection)
Benefits
- German building code test certificate (abP)
- Simple installation and further processing in combination with FERBOX® rebend connectors
- Fulfils all requirements of rebend connections
- Can be combined with all single-row FERBOX® types:
- No special tools or adhesive materials required
Technical details
- Water tightness: tested up to 5.0 bar (due to the construction height, a water pressure of 0.75 bar is permissible according to abP (German building code test certificate))
- Sealed using proven PENTAFLEX® metal joint sheet 60 mm high
- joint sheet anchoring depth in line with abP (German building code test certificate) 30 mm
- Module length: 800 mm or 1200 mm, other lengths on request
- PENTAFLEX® Modul Eck as an addition for corner connections
- Multiple PENTAFLEX® Modul units can be overlapped and connected together by leaving a 50-mm overlap
Downloads
de
en
de
de
en
de
en
de
en
de
PENTAFLEX® Modul - Technical Information
Technical Information
Installation instructions PENTAFLEX® Modul
Please observe these installation and application instructions before installation. Our application technology and consulting engineers will be happy to answer any questions you may have.
PDF (424.22 KB)
DownloadDownload
DGNB Product Declaration PENTAFLEX®
Environmental product declaration
LEED Product Declaration PENTAFLEX®
Environmental product declaration
Price list 2026 Shell construction / facade
Valid from February 1st, 2026
Order sheet PENTAFLEX® Modul
With this order sheet, you can easily and conveniently register your order on the screen, send it to us by e-mail, fax or letter. We would be pleased to receive your inquiries and orders personally by phone.
PDF (99.02 KB)
DownloadDownload
