JZA K cold-formed, toothed anchor channels form an interlocking, non-slip positive connection when used with the suitable toothed t-bolts. They absorb static loads from all directions. The toothed channels are concreted into reinforced or unreinforced structural elements. They are suitable for transmitting forces along the rail, especially for cable support systems and other fastenings of technical building equipment.

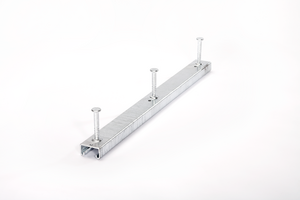

Anchor Channel JZA K, toothed
Vorteile
- Fast, efficient and reliable fixing of static loads in all directions
- Time-saving and cost-effective assembly using toothed t-bolts without drilling
- Available in stainless steel for corrosive environments
- Small edge clearances possible
- Reusable attachment
- Easy compensation of structural tolerances
- Approved almost worldwide
- Suitable for DGNB and LEED certified projects
- Special lengths available on request
