WL wide-span cable ladders easily conduct cables even over large intervals of up to ten metres between fixtures. Wide-span cable ladders are therefore ideal for power cables in industrial halls or power plants. The rungs are made of perforated profile rails and are welded in place to increase transverse rigidity. In addition, sufficient air can circulate around the cables to prevent heat build-up. Our wide-span cable ladders are 202 mm high and come in widths of 200, 300, 400, 500 and 600 mm and in a standard length of 6000 mm. Special sizes up to a width of 1 m can also be manufactured on request.

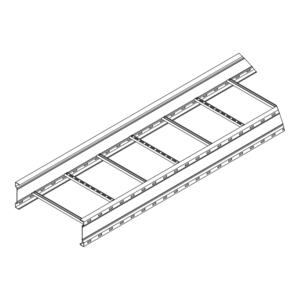

WL Wide-span Cable Ladder
Downloads
de
en
de
en
de
en
de
Price list 2025 Building extension
Valid from February 1st, 2025, updated version from 31/03/2025.
Cable support systems - Complete catalogue
Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.
Wide-Span Systems, Technical Information
Technical Information
Wide-Span Cable Ladder WL 200 - Compact overview
Compact overview of Wide span cable ladders and accessories: WL 200, WLB, WLA, WLK, WLV, WTR, WLHS, WLKL, EBW, WLD
PDF, 648.95 KB
