Central and middle suspensions are used to suspend cable trays and mesh cable trays from ceilings. They are suitable for light loads and trays up to 300 mm wide. The central and middle suspensions facilitate easy cable installation. Avoid loading the trays unevenly.
Centre Suspensions

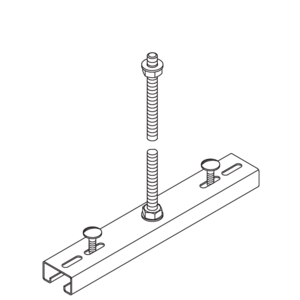

GBAR
Middle suspending bracket, external
GBAG
Middle suspending bracket, external
MA 60
Middle suspending bracket, internal
MA 35
Middle suspending bracket, internal
Vorteile
- Central ceiling suspension of mesh cable trays and cable trays
- Easy cable installation
- Light, robust solution for trays up to 300 mm wide
