The U profile system is a standard system and consists of bracket holders, strut brackets and head plates. The struts are three-sided perforated U construction profiles. KDU bracket supports have integrated head plates while separate BGU head plates can be bolted onto KHU profiles. Brackets KWF, KW, KWMS or KWS can be easily attached (see section Brackets) thanks to the continuous perforation. The U strut system has versatile possible uses and is suitable for most areas of application.
U-Handle System
KDU 40
Bracket support, 40x30 mm
KDU 57
Bracket support, 57x30 mm, maintenance of function
KDU 60
Bracket support, heavy duty, 60x40 mm, maintenance of function
KHU 40
Bracket support, 40x30 mm
KHU 57
Bracket support, 57x30 mm
KHU 60
Bracket support, heavy duty, 60x40 mm
KHU 80
Bracket support, heavy, 80x60 mm
BGU 40
Screw-on head plate, KHU 40

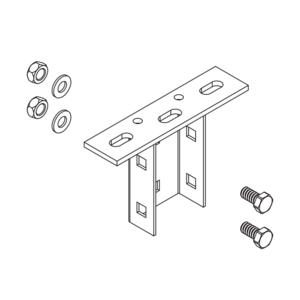

BGU 57
Screw-on head plate, KHU 57
BGU 60
Bolted head plate, KHU 60
BGU 80
Screw-on head plate, KHU 80

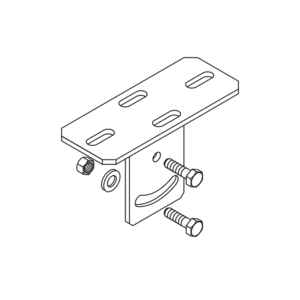

BGUD
Screw-on head plate, ±30°, KHU 40/57/60

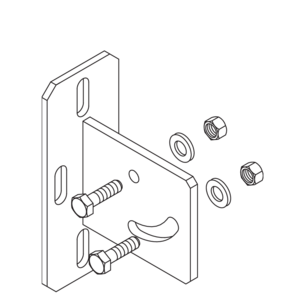

BGUDW
Screw-on head plate, 30°-90°, KHU 40/57/60

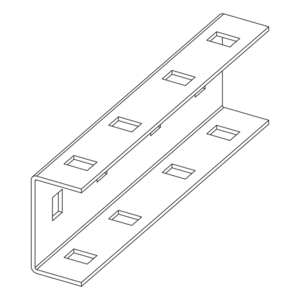

KHUV 40
Connector, KHU 40

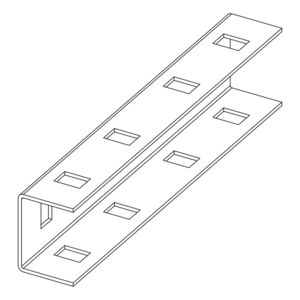

KHUV 57
Connector, KHU 57

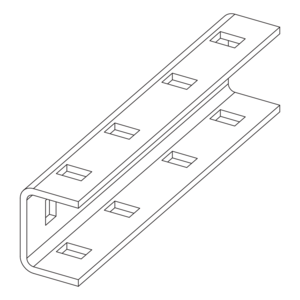

KHUV 60
Connector, KHU 60

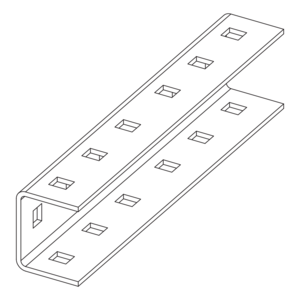

KHUV 80
Connector, KHU 80

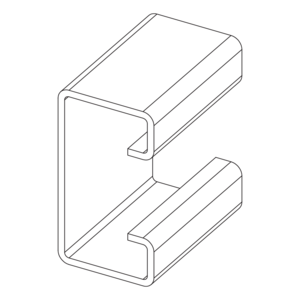

KHUSS 40
Support piece, KHU 40

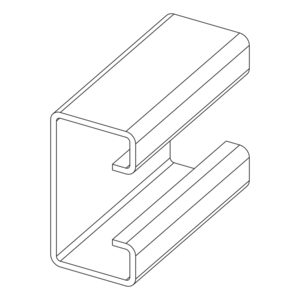

KHUSS 57
Support piece, KHU 57

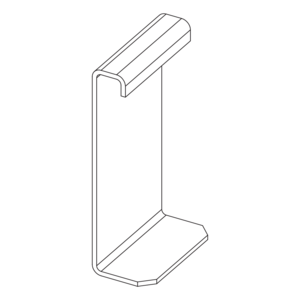

KHUSS 60
Support piece, KHU 60, maintenance of function

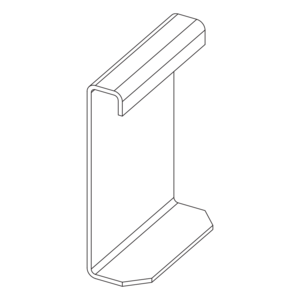

KHUSS 80
Support piece, KHU 80
BL 4
Mounting bracket

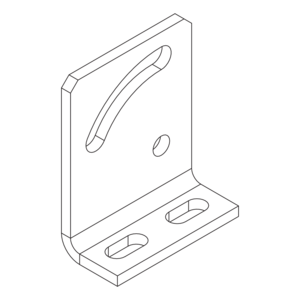

BLD
Diagonal adaptor

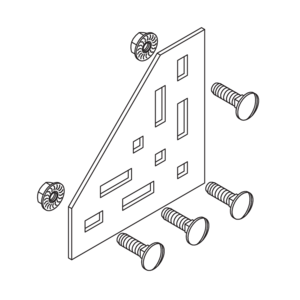

KB
Junction plate
SU 40
Protection cap, KHU 40
SU 57
Protection cap, KHU 57
SU 60
Protection cap, KHU 60
SU 80
Protection cap, KHU 80

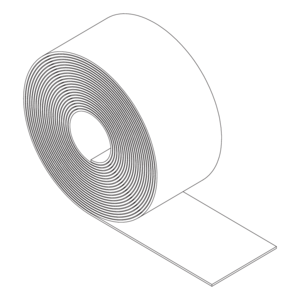

ISR 80
Insulation Strip Roll

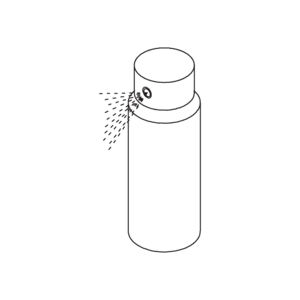

KZS
Cold zinc spray

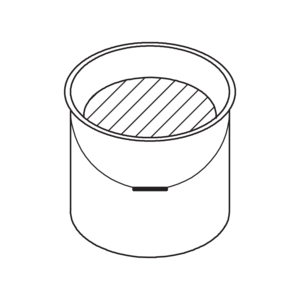

KZF
Cold zinc paint
Vorteile
- Ceiling suspension of mesh cable trays, cable trays and ladders
- Use in cable systems with integrated circuit integrity
- Variable adjustment for different loads and areas of application
- Suitable as pendulum suspension for wide-span cable trays
