The W profile system consists of the KSLW wall bracket, the DKSL ceiling bracket and the KDSL bracket holder in combination with the KSL strut bracket. The W profile system does not have any assembly components below. This makes it suitable for applications where there is little space under the trays. This is the case, for example, if a ventilation system is to be installed directly under the cable trays, such as in multi-storey car parks. The system is ideal for suspending mesh cable trays and cable trays.
W-Profile System

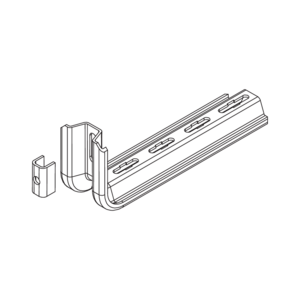

KSLW
Wall bracket, light-duty
DKSL
Ceiling brackets, light
KDSL
Bracket support, light
KSL
Strut bracket, light

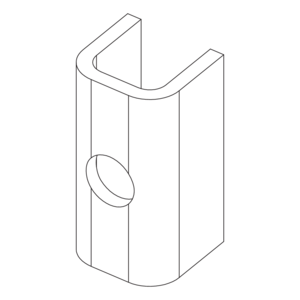

KSL-SP
Spacer
Vorteile
- Space-saving W/trapezoidal profile without assembly components below the arm
- Ceiling and wall suspension of mesh cable trays and cable trays
- Easy cable installation
- Robust solution
Downloads
de
en
de
en
es
de
en
Support systems - Technical information
Technical information
Cable support systems - Complete catalogue
Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.
Support systems Assembling instruction
Assembly instructions for KWLL, KSLW, KWF, KWW, KW, KWMS; KWS, KWSS, KIS, KISS, GBAG, GBAR, MA, KDU, BGU, KSLW, KDAG 41, BGA 41, TBS
