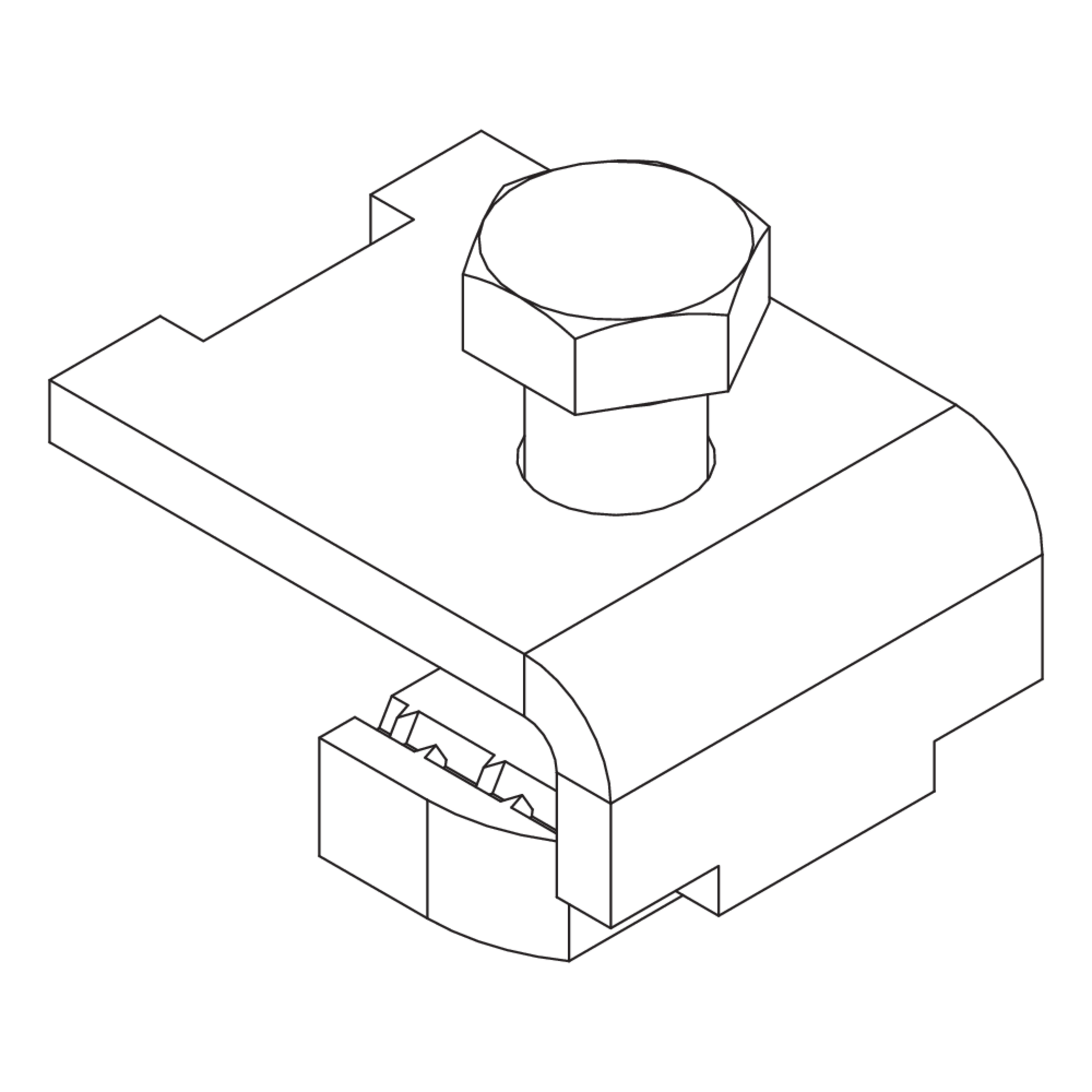

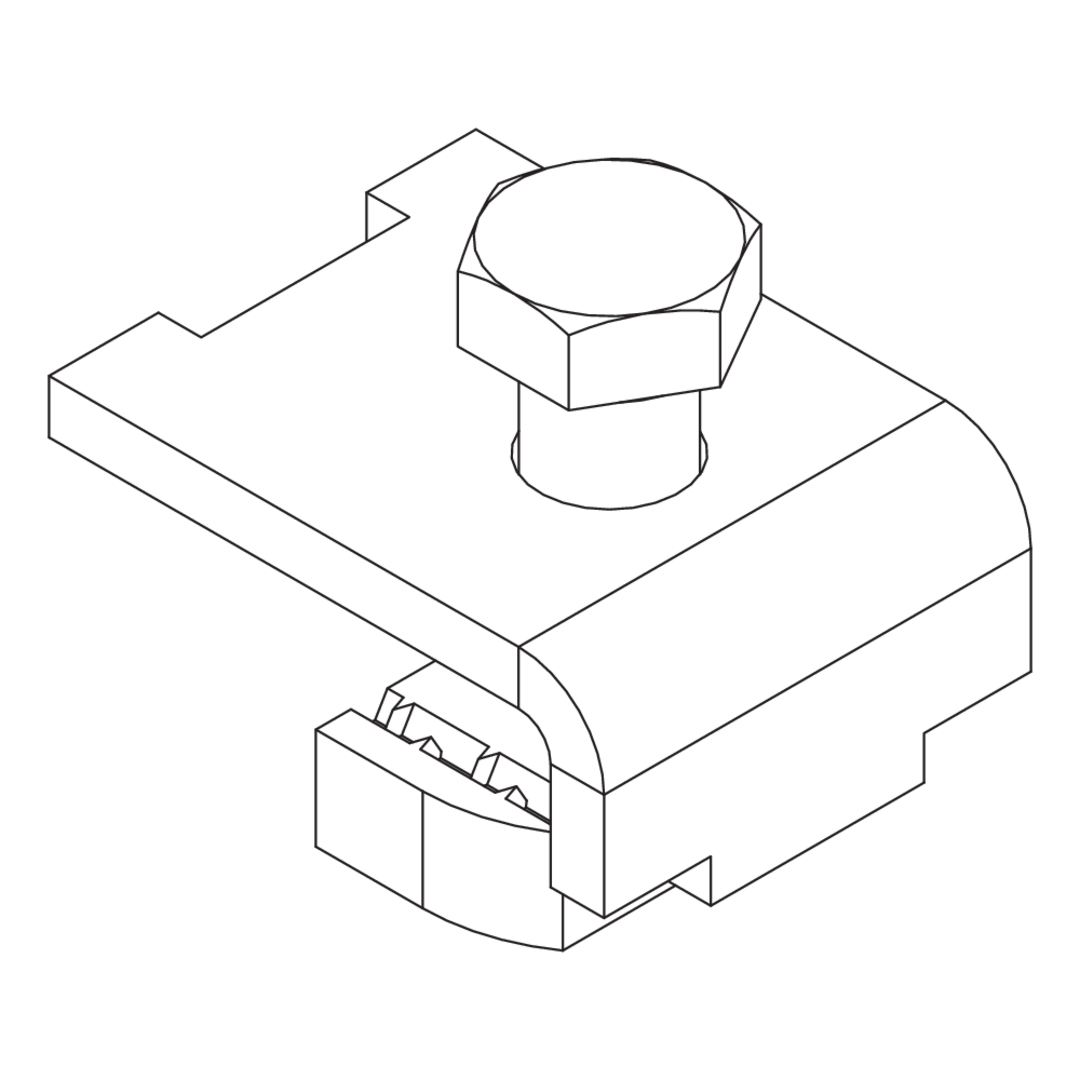

Beam clamp for mounting channels

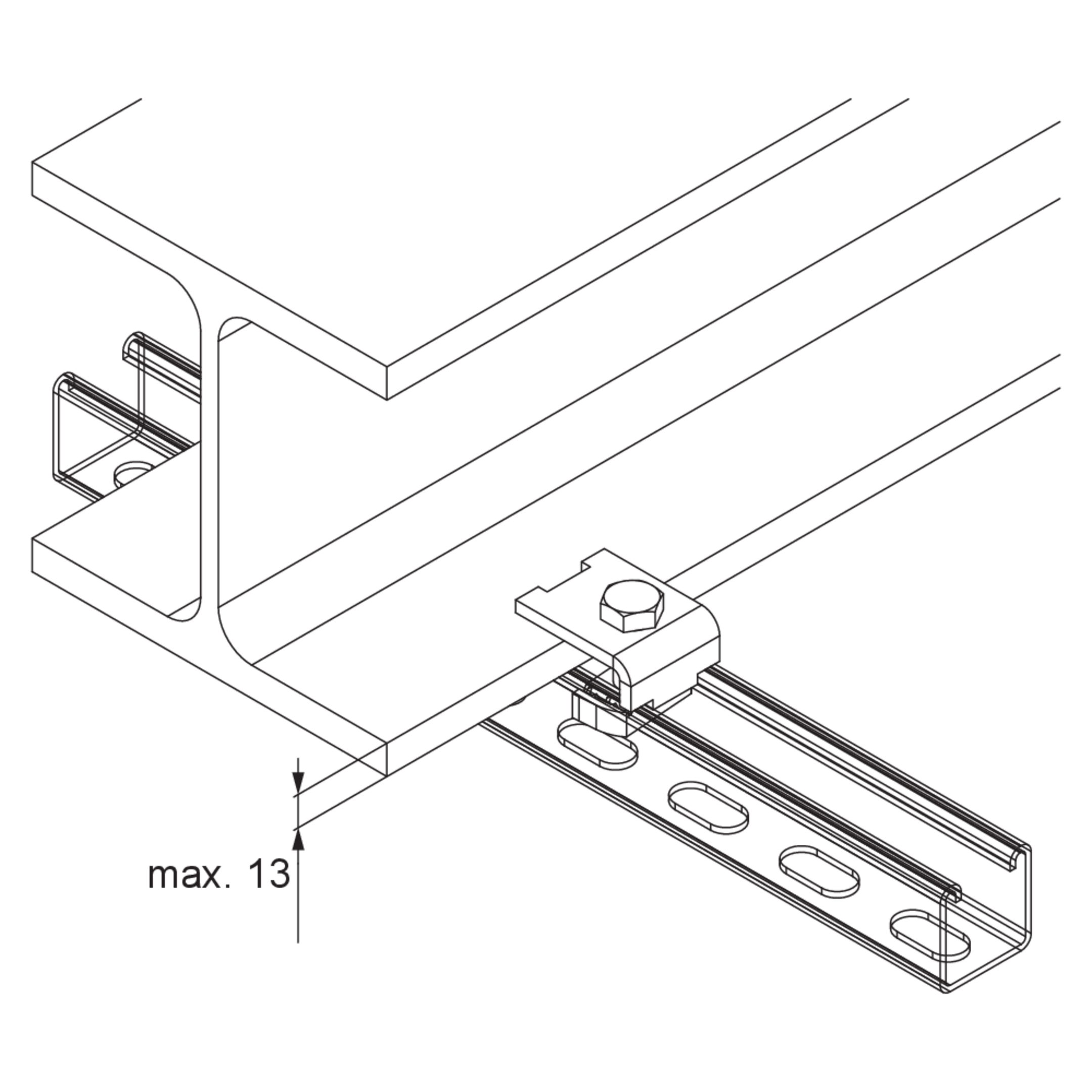

The beam clamp AVSKA is used to fasten mounting channels (A 41, KHA 41, KHAL 41) with 22 mm slot width to horizontal steel beams. The maximum flange thickness of the steel beam to be fastened is 13 mm. It is made of hot-dip galvanised steel.

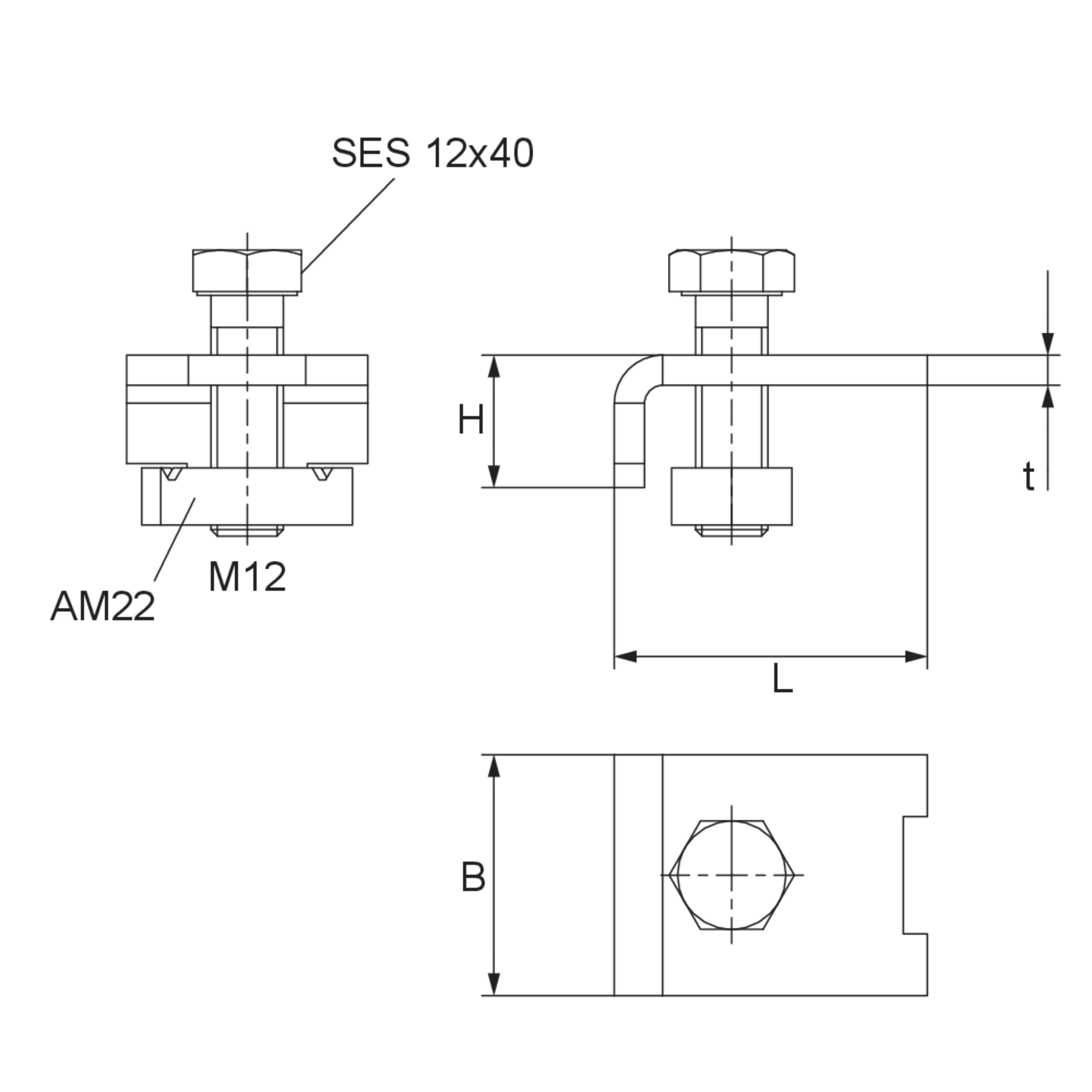

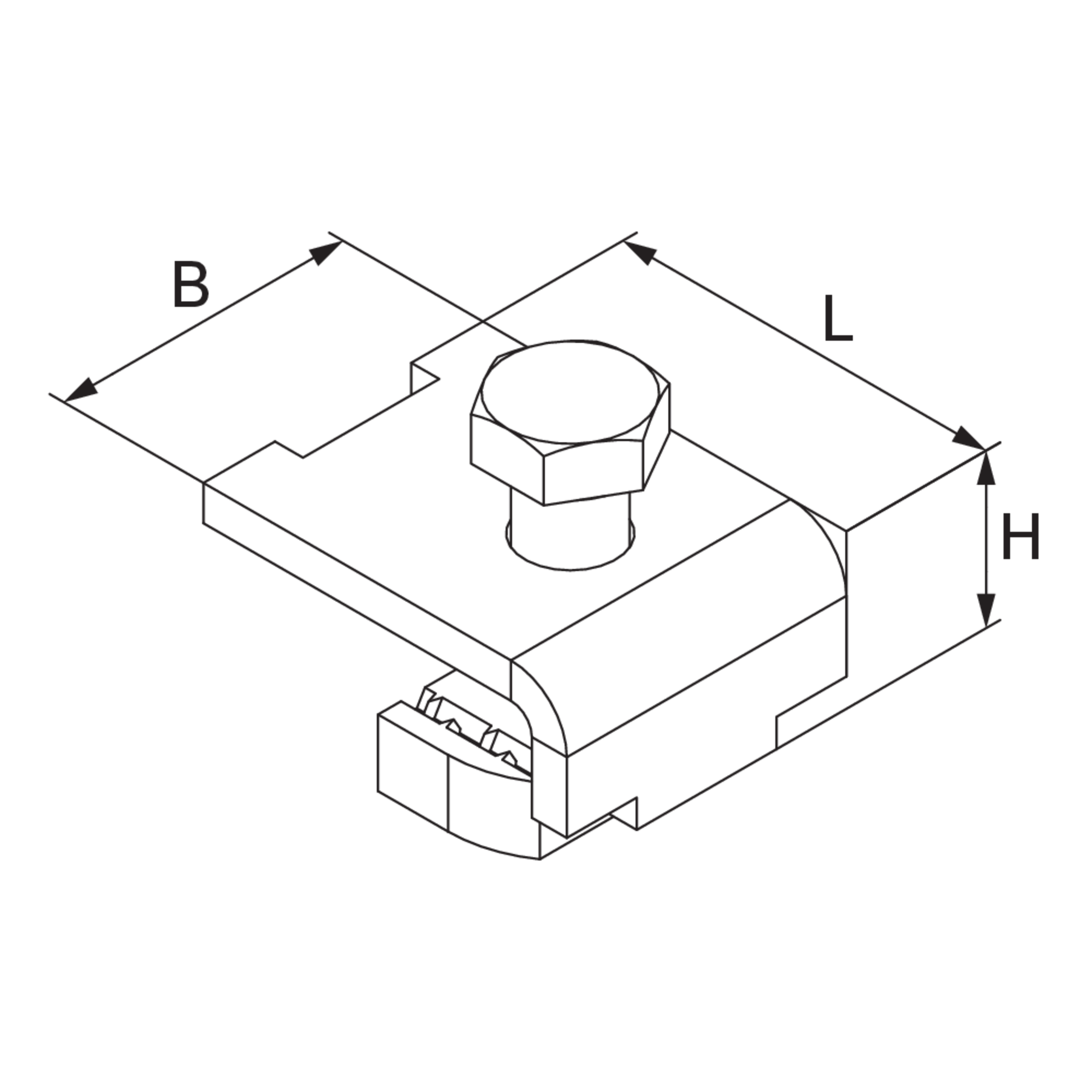

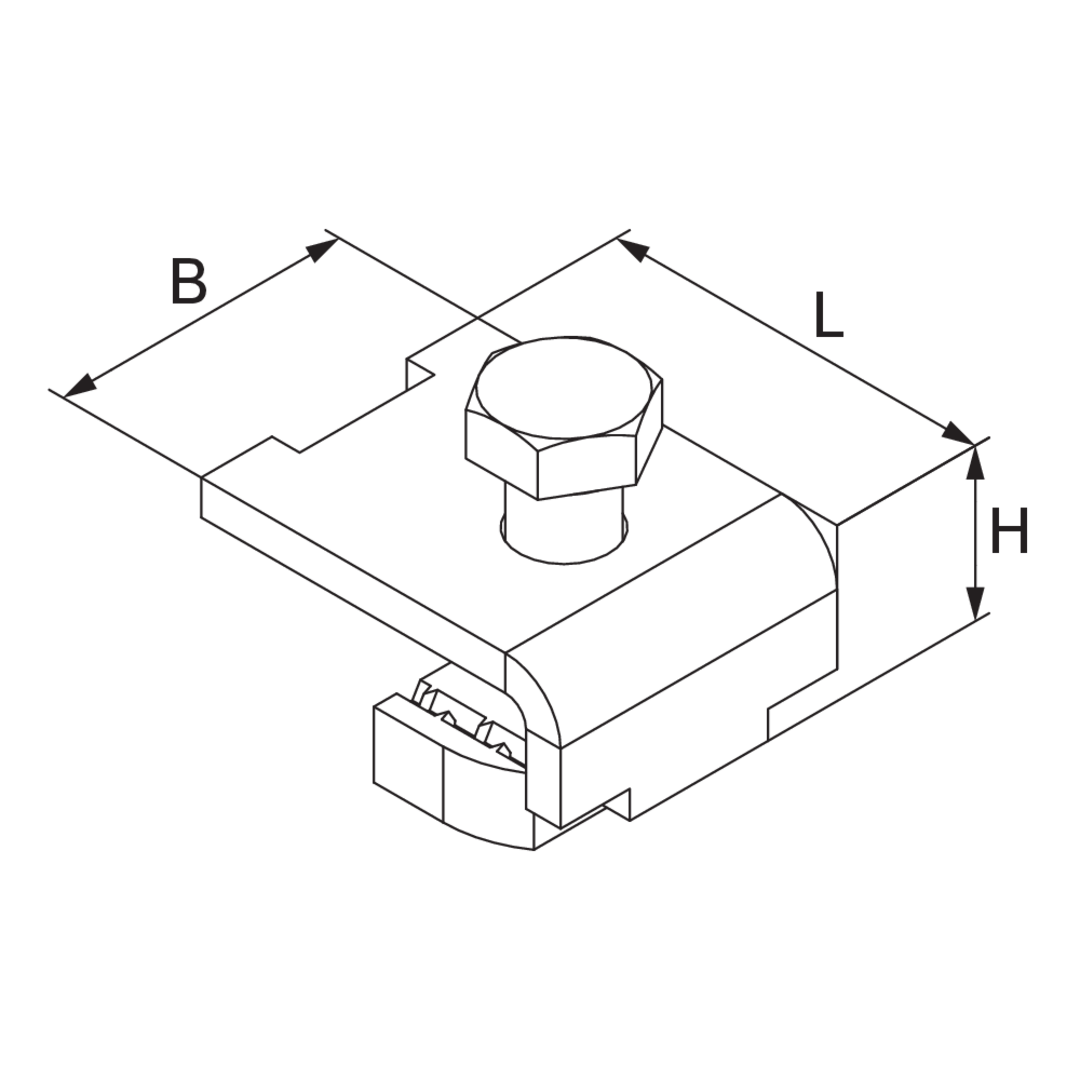

H
height
B
width
L
length
t
material thickness
k
clamping range
G
Weight per storage unit
