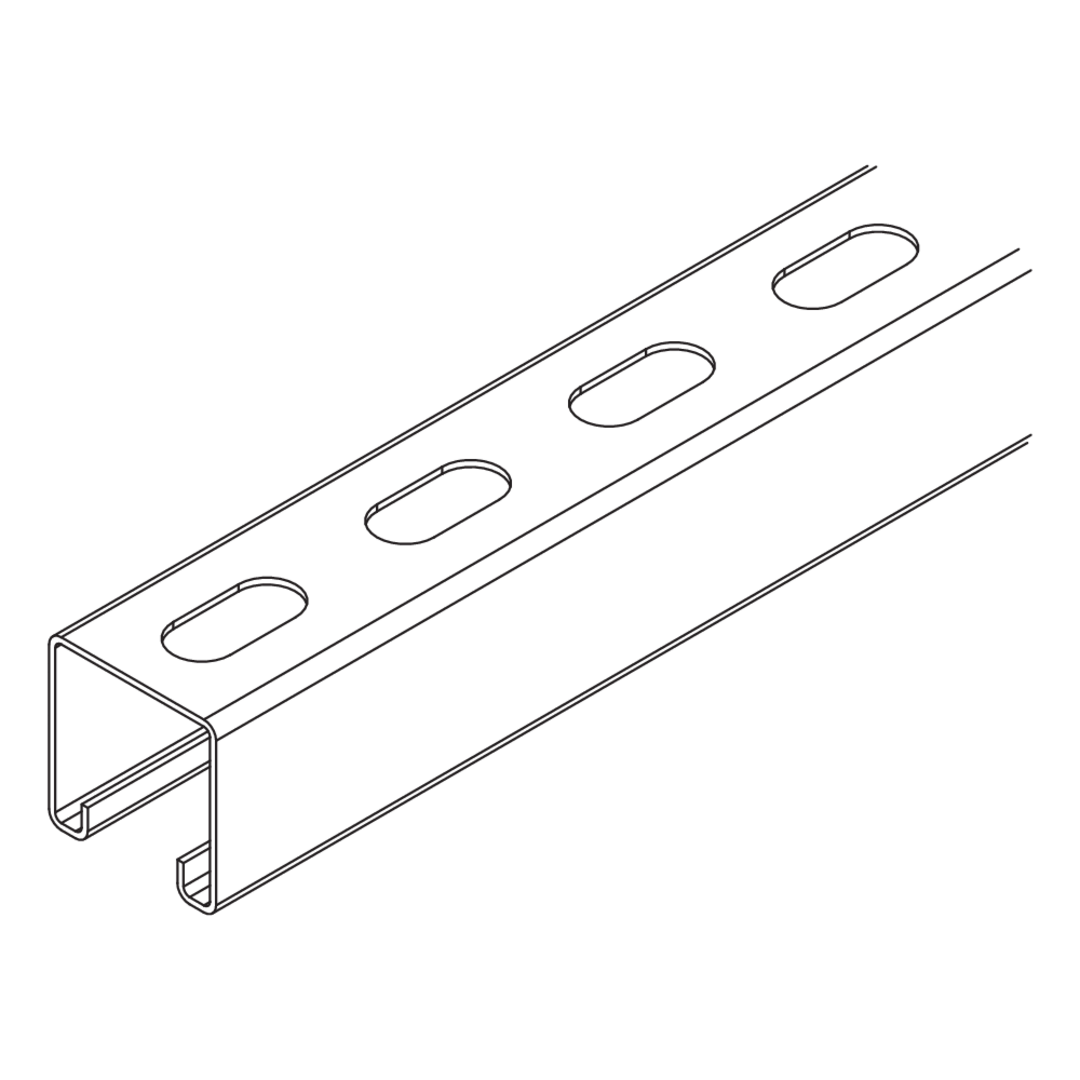

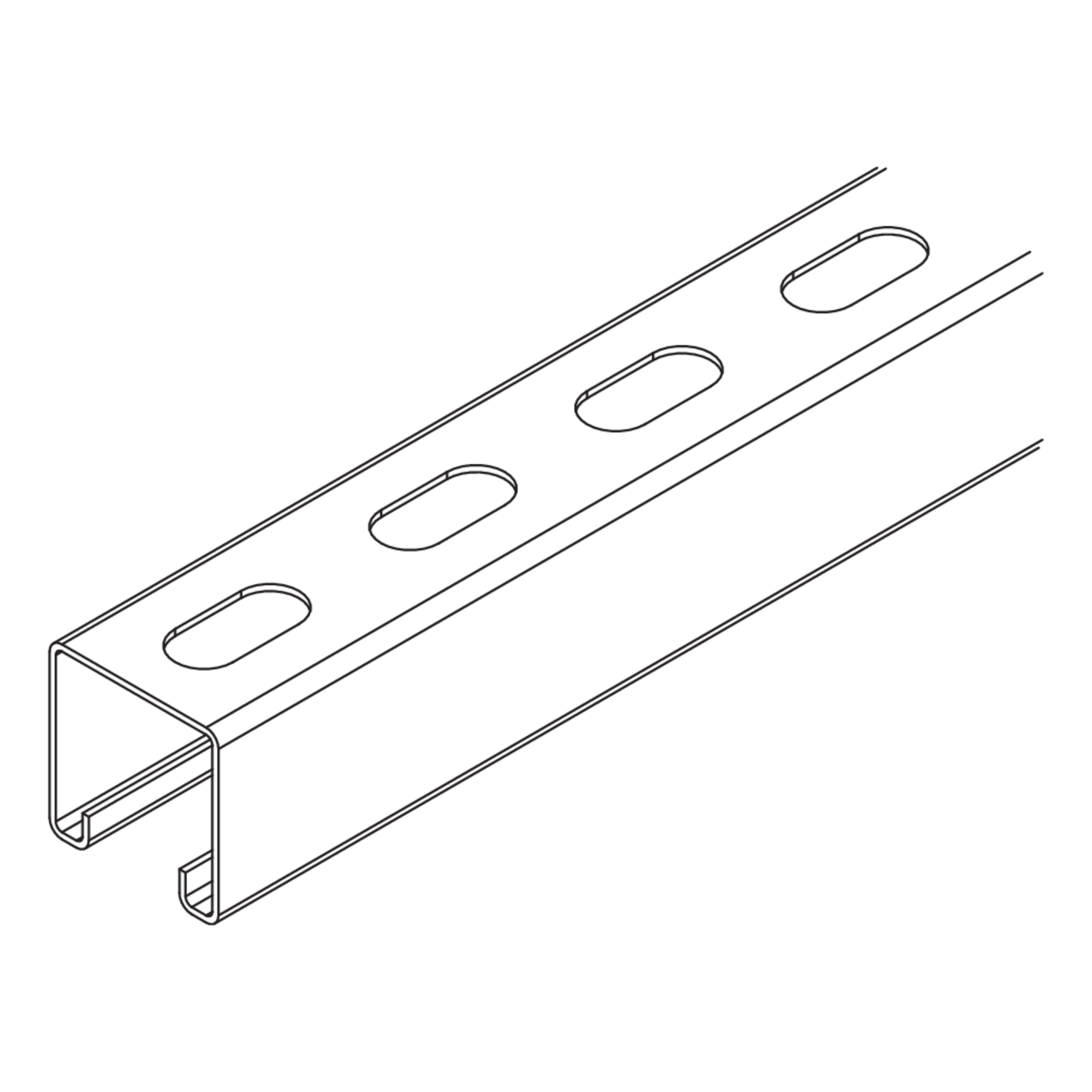

KHAL 41

41x41 mm profile rail, perforated

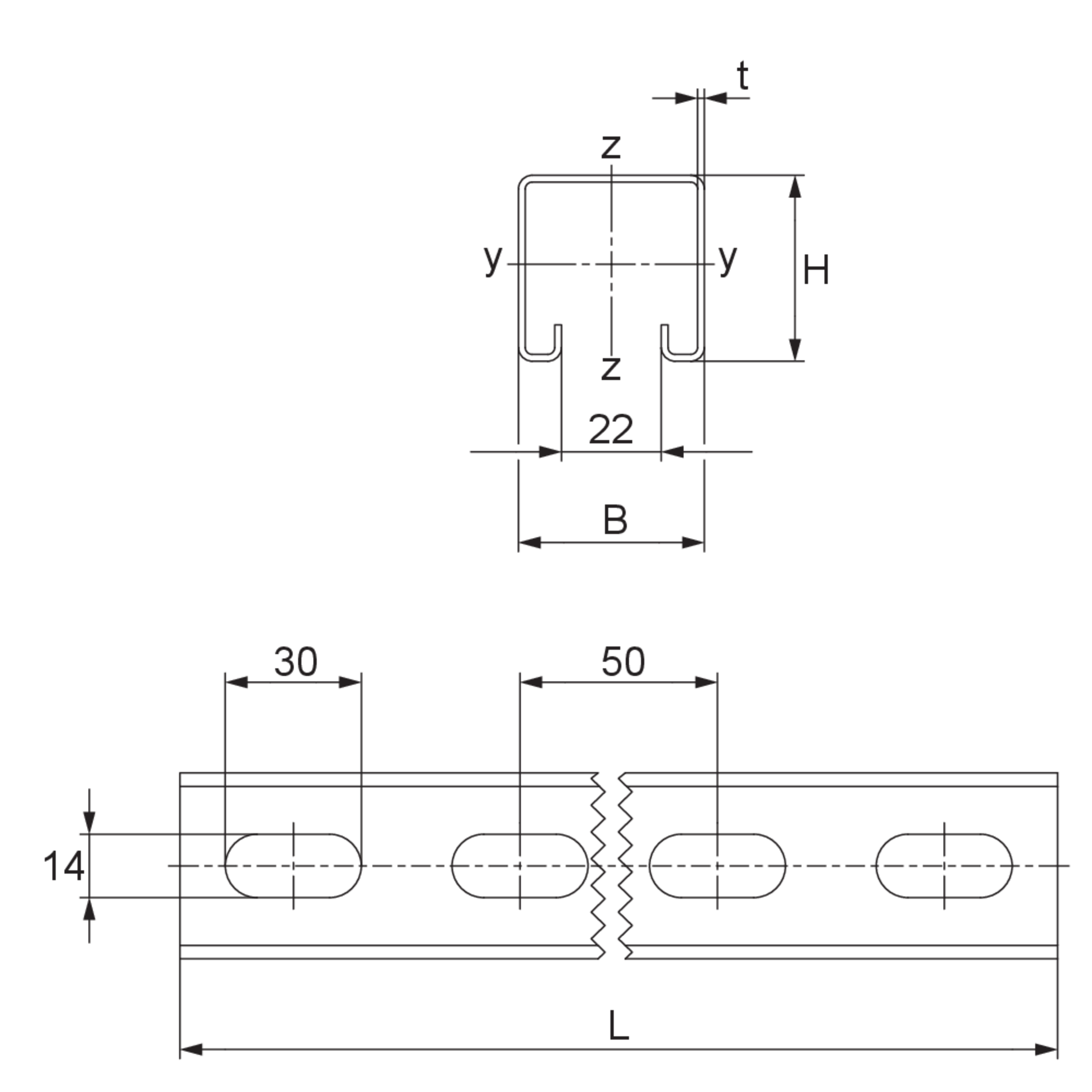

The mounting channel KHAL 41 consists of a C+ profile 41 x 41 mm with continuous perforation and a slot width of 22 mm made from material 1.5 mm thick. We provide components in various materials and surface finishes to ensure that the corrosion requirements are met for all sorts of applications. KHAL 41 also serves as a bracket holder in combination with the BGA 41 head plate and is available in lengths of up to 6000 mm.

Get in touchDownload datasheet

Variants

Steel, pre-galvanised/Sendzimir process

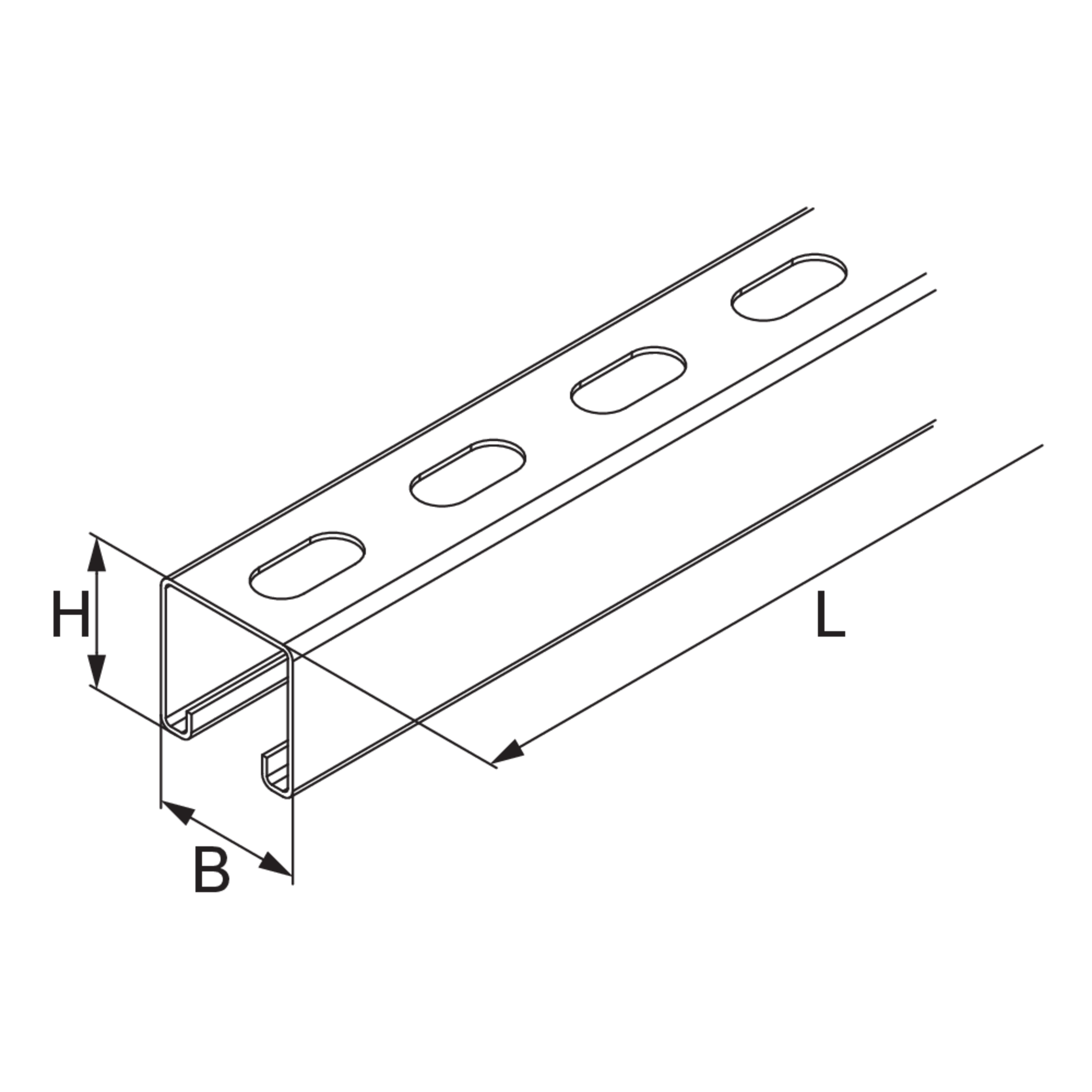

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

  • KHAL 41-30S
    Profile rail perforated 41/41x1,5
    height
    41 mm
    width
    41 mm
    length
    3000 mm
    material thickness
    1.50 mm
    Weight per storage unit
    4.680 kg
    More information
  • KHAL 41-60S
    Profile rail perforated 41/41x1,5
    height
    41 mm
    width
    41 mm
    length
    6000 mm
    material thickness
    1.50 mm
    Weight per storage unit
    9.360 kg
    More information

Steel, hot-dip galvanised

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

  • KHAL 41-05F
    Profile rail perforated 41/41x1,5
    height
    41 mm
    width
    41 mm
    length
    500 mm
    material thickness
    1.50 mm
    Weight per storage unit
    0.834 kg
    More information
  • KHAL 41-10F
    Profile rail perforated 41/41x1,5
    height
    41 mm
    width
    41 mm
    length
    1000 mm
    material thickness
    1.50 mm
    Weight per storage unit
    1.669 kg
    More information
  • KHAL 41-15F
    Profile rail perforated 41/41x1,5
    height
    41 mm
    width
    41 mm
    length
    1500 mm
    material thickness
    1.50 mm
    Weight per storage unit
    2.503 kg
    More information
  • KHAL 41-20F
    Profile rail perforated 41/41x1,5
    height
    41 mm
    width
    41 mm
    length
    2000 mm
    material thickness
    1.50 mm
    Weight per storage unit
    3.337 kg
    More information
  • KHAL 41-30F
    Profile rail perforated 41/41x1,5
    height
    41 mm
    width
    41 mm
    length
    3000 mm
    material thickness
    1.50 mm
    Weight per storage unit
    5.006 kg
    More information
  • KHAL 41-60F
    Profile rail perforated 41/41x1,5
    height
    41 mm
    width
    41 mm
    length
    6000 mm
    material thickness
    1.50 mm
    Weight per storage unit
    10.012 kg
    More information
