The I strut system consists of bracket supports, strut brackets and head plates. The struts consist of perforated I profiles. KDI bracket supports have integrated head plates while separate head plates can be bolted onto KHI profiles. The KT, KTS and KTSS and strut brackets are also part of the system. Our I strut system is used wherever particularly heavy loads have to be carried, for example in automotive construction, power plant construction and airport construction.
I-Handle System
KDI
Bracket support, heavy, 80x42 mm
KHI
Bracket support, heavy, 80x42 mm
KT
Bracket, standard, KDI/KHI
KTS
Bracket, heavy, KDI/KHI

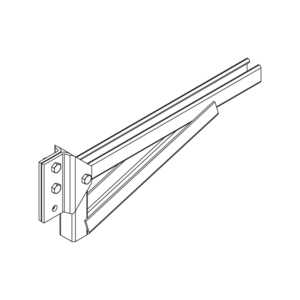

KTSS
Bracket, very heavy, KDI/KHI

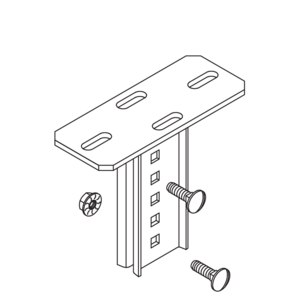

BGI
Bolted head plate, KHI

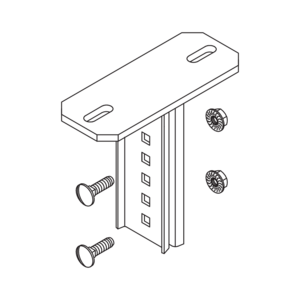

BGIQ
Bolted head plate turned 90°, KHI

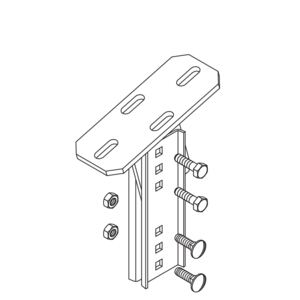

BGID
Screw-on head plate, ±30°, KHI
KDIA-G
Adapter for KDI, welded

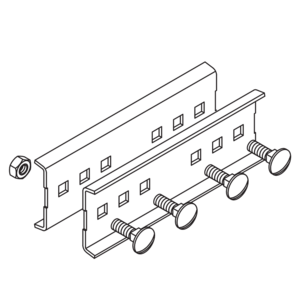

HKI
Connector, KHI

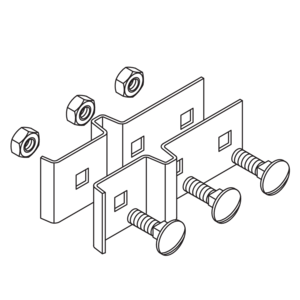

HKIW
Mounting bracket, KHI

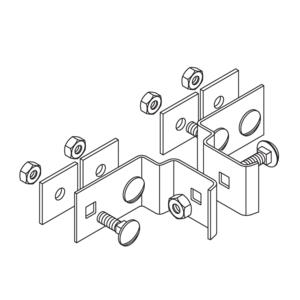

HKIQ
Mounting bracket, transverse, KHI

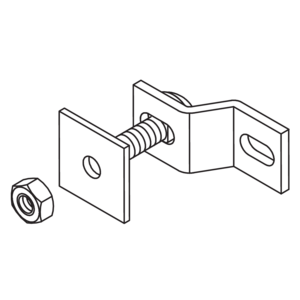

BL 3
Mounting bracket
BL 7
Mounting bracket

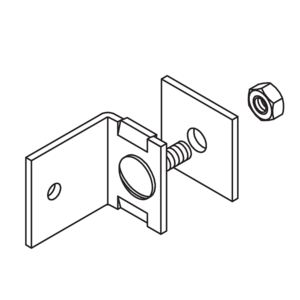

BL 8
Mounting bracket

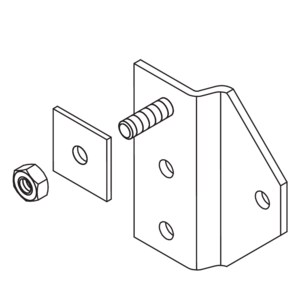

BLI
Corner angle, KHI
SI
Protection cap, KDI/KHI
KZS
Cold zinc spray

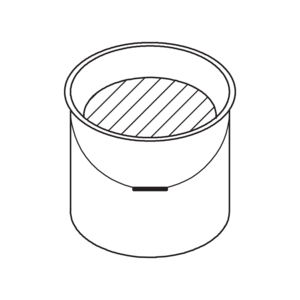

KZF
Cold zinc paint
Vorteile
- Ceiling suspension of mesh cable trays, cable trays and ladders
- Easy cable installation
- Suitable as pendulum suspension for wide-span cable trays
- Variable design allows the system to be adjusted for various areas of application
Downloads
de
en
de
en
es
de
en

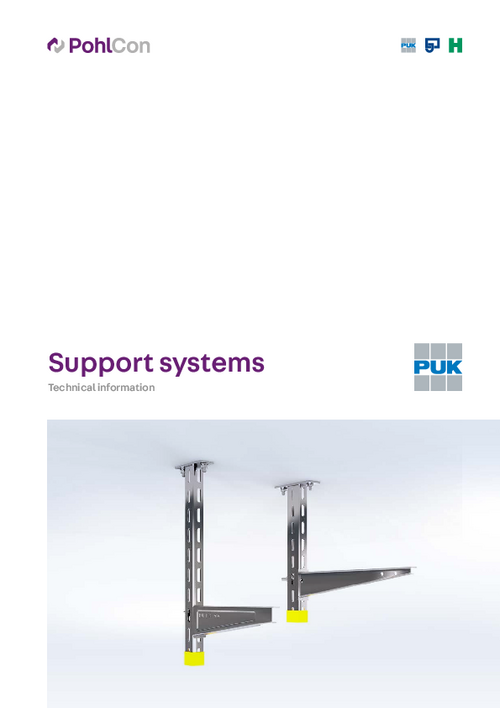

Support systems - Technical information
Technical information
Cable support systems - Complete catalogue
Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.

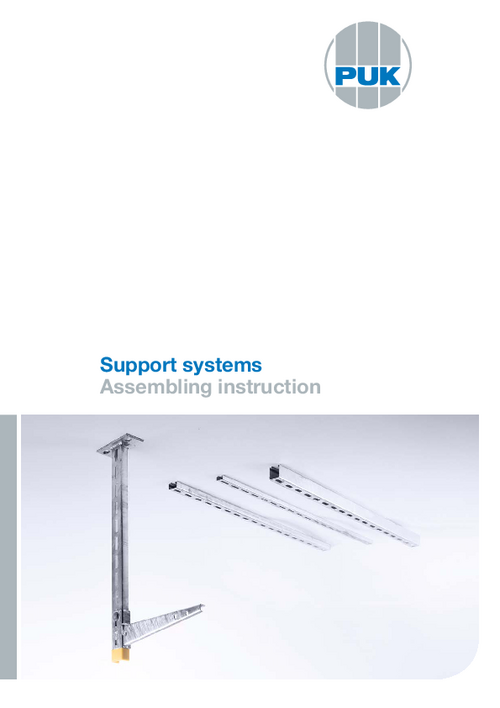

Support systems Assembling instruction
Assembly instructions for KWLL, KSLW, KWF, KWW, KW, KWMS; KWS, KWSS, KIS, KISS, GBAG, GBAR, MA, KDU, BGU, KSLW, KDAG 41, BGA 41, TBS
