Waveguide/high-frequency cable clamps facilitate the simple and quick routing of individual waveguide/high-frequency cables. They are attached to profile rails as well as to flat, round or angle profiles or dowelled directly to walls and/or ceilings. Additional special clamps are used to fix high-frequency cables of other sizes and types. Neoprene inserts (designation EE) must be used to accommodate various elliptical cables.
Waveguide/High Frequency Cable Clamps

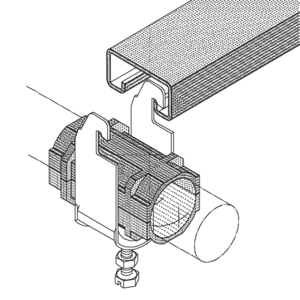

AC-HW
Cable clamp for fastening to C profile rails

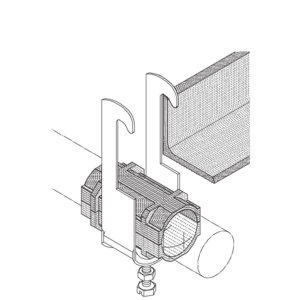

S-HW
Cable clamp for fastening to angle profiles

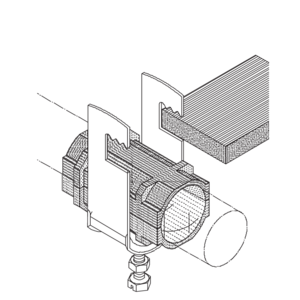

U-HW
Cable clamp for fastening to flat profiles

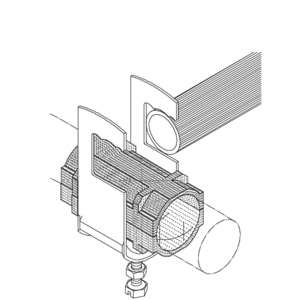

RU-HW
Cable clamp for fastening to round and flat profiles

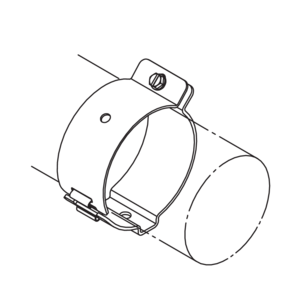

HF-EL 1-4
HF cable clamps for fastening to walls

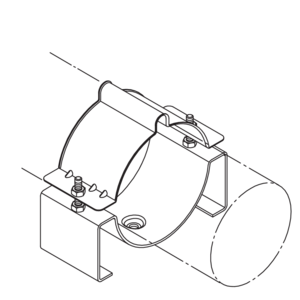

HF-EL 5-6
HF cable clamps for fastening to walls

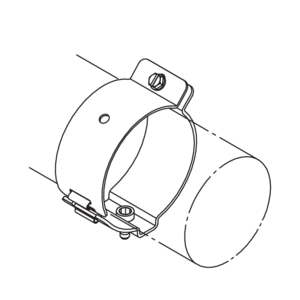

HF-EM 8 1-4
HF cable clamps for fastening to walls

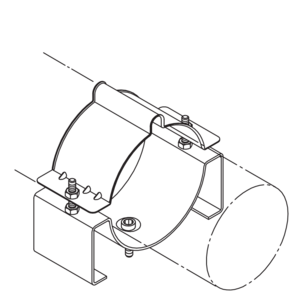

HF-EM 8 5-6
HF cable clamps for fastening to walls

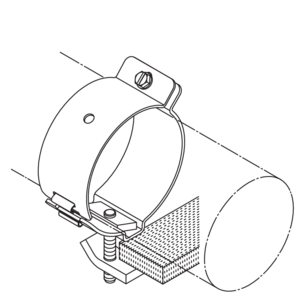

HF-EU 1-4
HF cable clamp for fastening to flat steel profiles

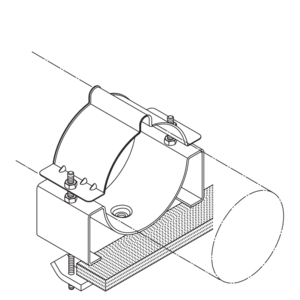

HF-EU 5-6
HF cable clamp for fastening to flat steel profiles

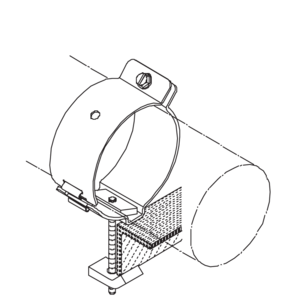

HF-ES 50 1-4
HF cable clamp for fastening to angle profiles

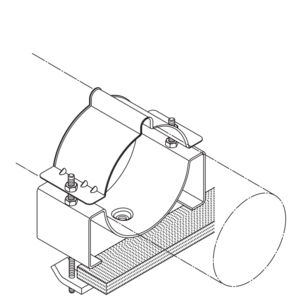

HF-ES 50 5-6
HF cable clamp for fastening to angle profiles
HF-ES 80 1-4
HF cable clamp for fastening to angle profiles
HF-ES 80 5-6
HF cable clamp for fastening to angle profiles

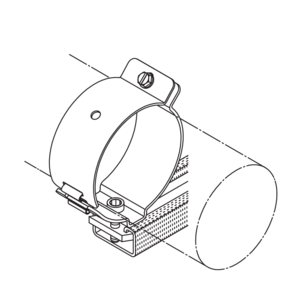

HF-EAC 1-4
HF cable clamp for fastening to profile rails

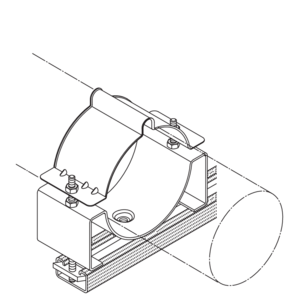

HF-EAC 5-6
HF cable clamp for fastening to profile rails

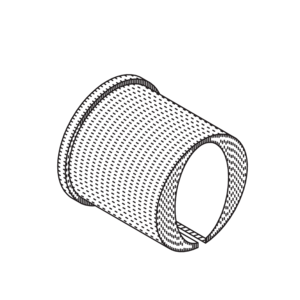

HF-EE
HF clamp insert
Vorteile
- Simple and quick installation of individual fibre-optic/high-frequency cables
- Custom designs possible
Downloads
de
en
es
de
de
en
Cable support systems - Complete catalogue
Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.
3335-772-11-3 - Expert statement
DIN 4102-12
Standardised supporting structure: Cable clamps
Fire resistance duration: F30; F60; F90
Functional maintenance classes: E30; E60; F90
Fastening distance: ≤ 0.3 m; ≤ 0.4 m
Period of validity: 06.07.2027
PDF (834.47 KB)
DownloadDownload
EC Declaration of Conformity Cable clamps
Installation equipment for electric cables and circuits
