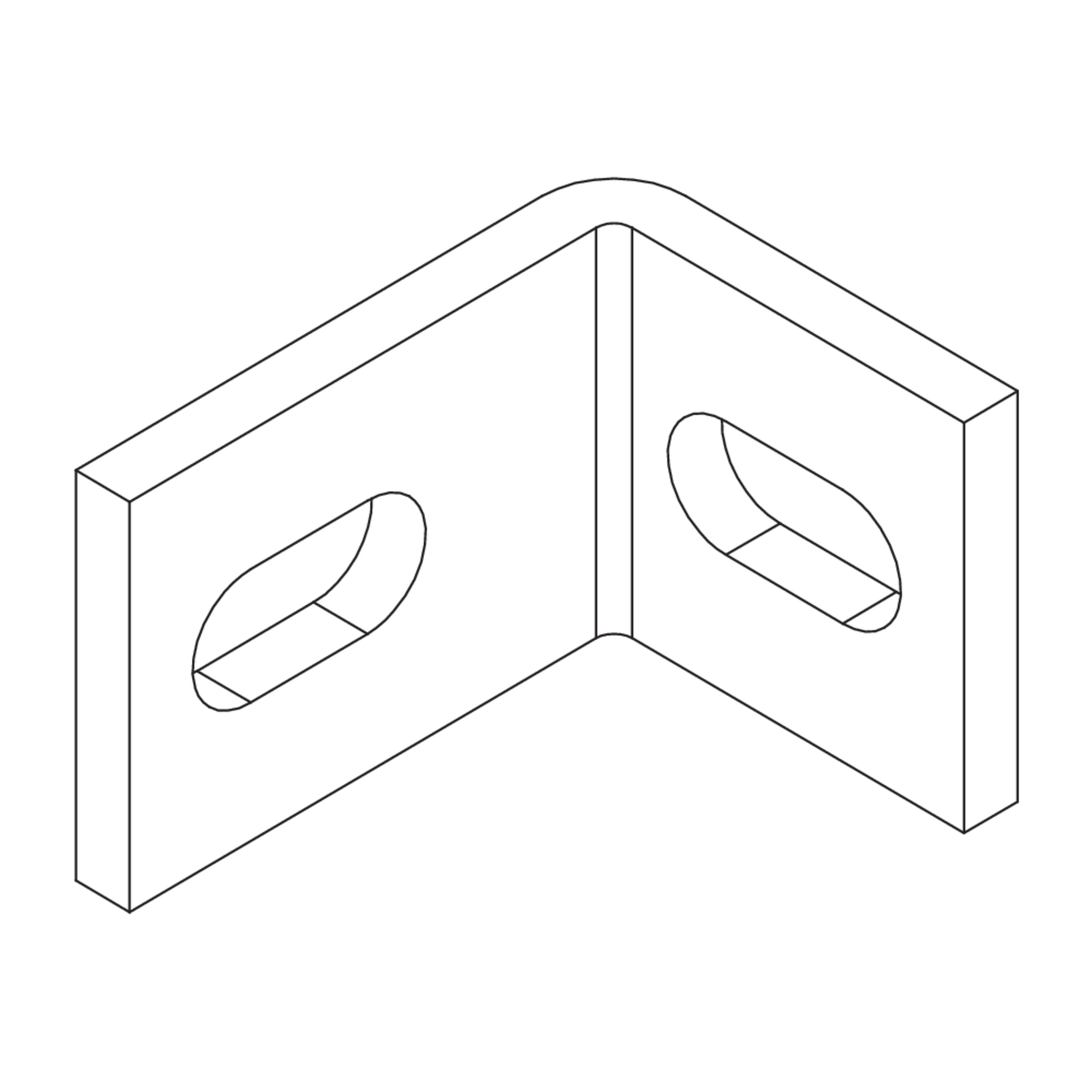

BL 5

Mounting bracket

The corner angle BL 5 is used to fasten bracket holders KHA / KHAL and KHU 40/57/60 to walls. The bracket is bolted to the bracket holder and dowelled to the concrete wall. It is made of hot-dip galvanised steel.

Get in touchDownload datasheet

Variants

Steel, hot-dip galvanised

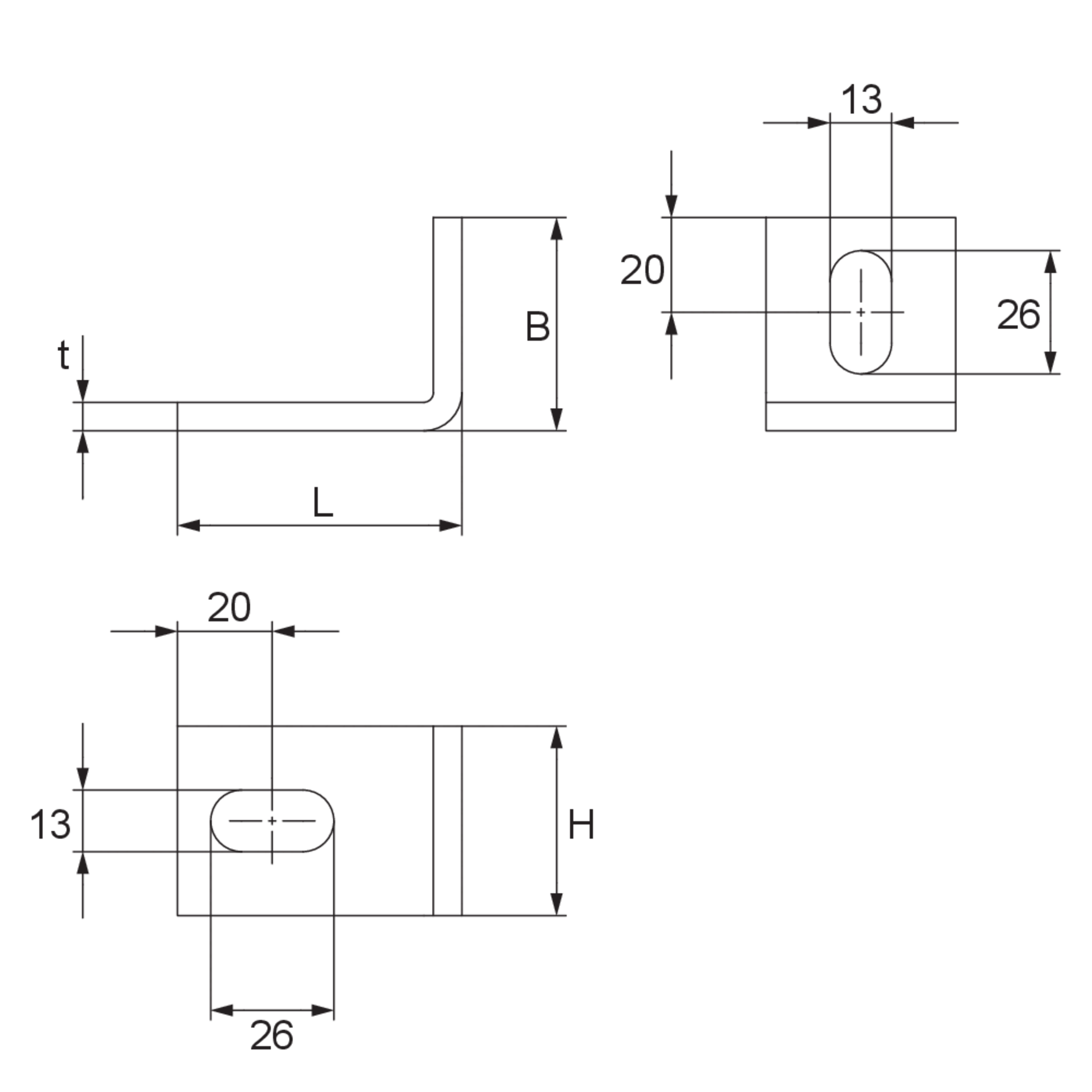

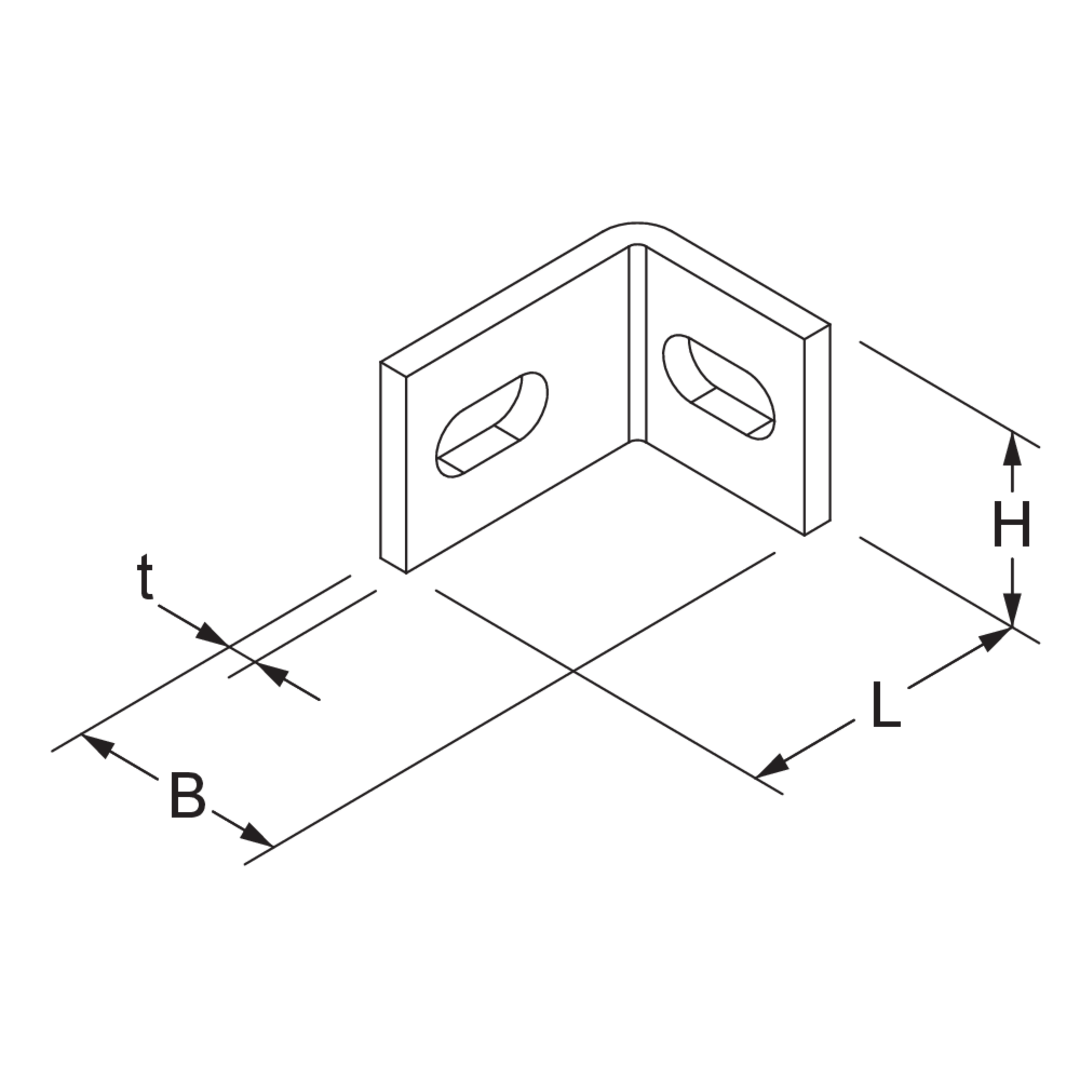

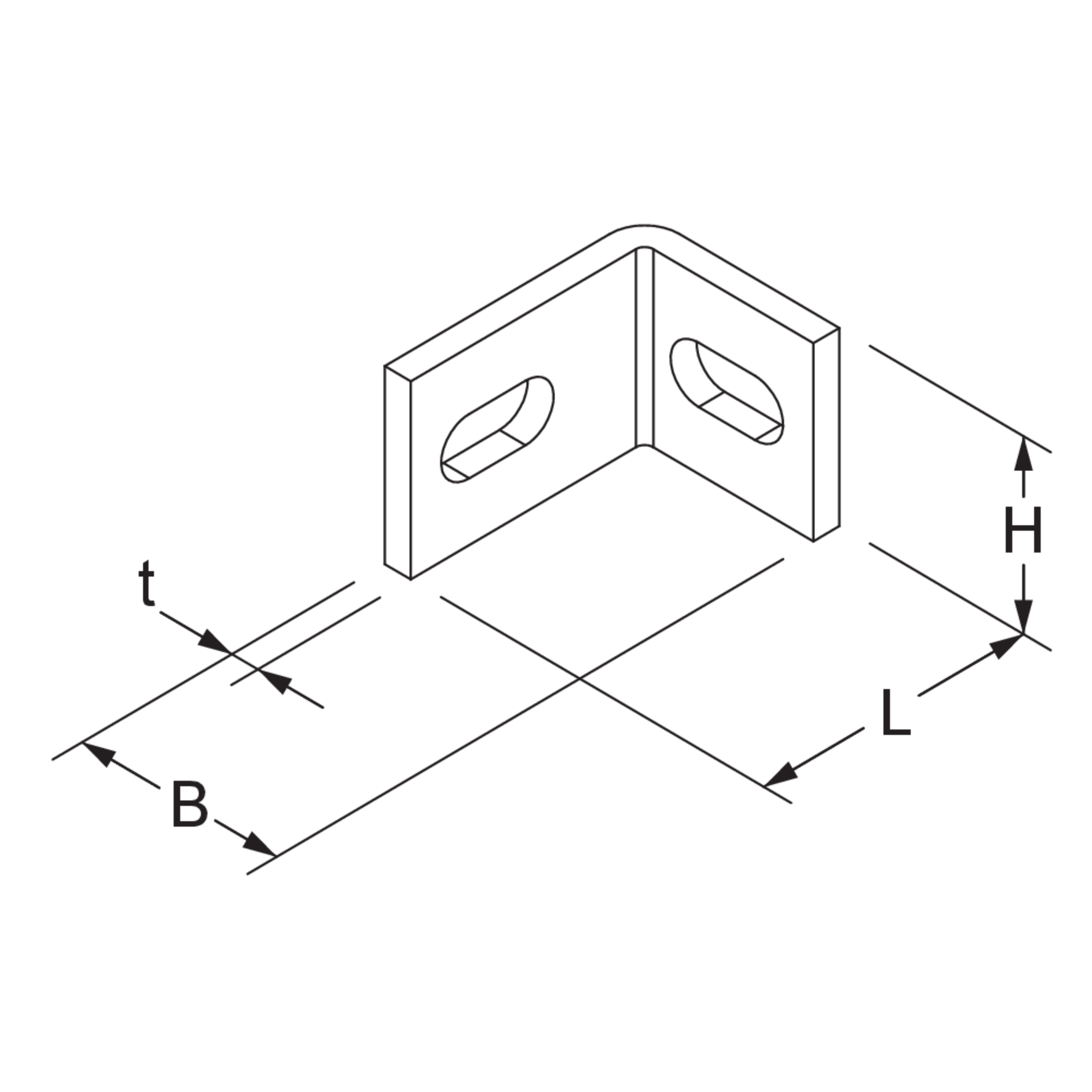

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

  • BL 5F
    Corner angle BL 5F
    height
    40 mm
    width
    45 mm
    length
    60 mm
    material thickness
    6.00 mm
    Weight per storage unit
    0.162 kg
    More information

Stainless steel, acc. to AISI 304 (BS 304S31)

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

  • BL 5E
    Corner angle BL 5E
    height
    40 mm
    width
    45 mm
    length
    60 mm
    material thickness
    6.00 mm
    Weight per storage unit
    0.152 kg
    More information

Stainless steel, acc. to AISI 316Ti (BS 320S31) / AISI 316L (BS 316S11)

Article

H

height

B

width

L

length

t

material thickness

G

Weight per storage unit

  • BL 5E4
    Corner angle BL 5E
    height
    40 mm
    width
    45 mm
    length
    60 mm
    material thickness
    6.00 mm
    Weight per storage unit
    0.153 kg
    More information

Details

    Tender texts

    Ausschreiben.de

    Tender texts for this product

    Open Link
    Heinze.de

    Tender texts for this product

    Open Link

    Downloads

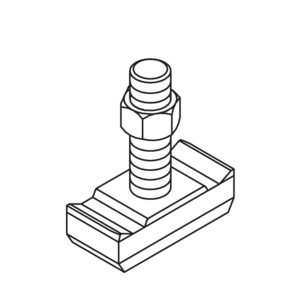

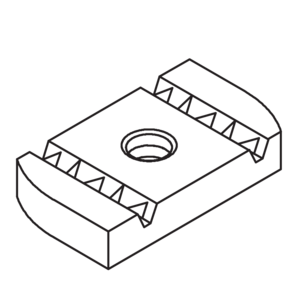

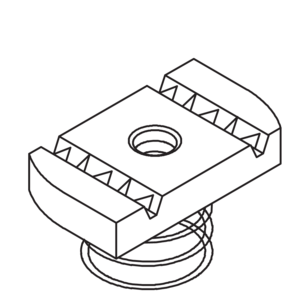

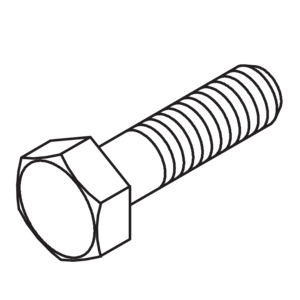

    Included accessories
