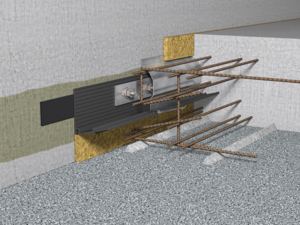

The internal or external KUNEX® clamp joint tape is a component of the KUNEX® clamp joint system that also includes primer, steel profiles, anchors and a crepe rubber strip. The system is used to form watertight expansion joints when connecting new buildings to existing ones. The joint tape is pressed against the existing structure by means of a clamping profile on the one side and integrated into the newly concreted structural elements on the other. KUNEX® clamp joint tapes are made of thermoplastic polymer (PVC-P). The hollow expansion part body absorbs movements across all axes.
KUNEX® Clamp Joint Tape
Benefits
- Reliable sealing of connection joints
- German building code test certificate (abP)
- Components from a single source
- Joint tapes with excellent welding properties
- Special solutions available on request
Technical details
- Made from PVC-P according to DIN 18541-2 (with abP (German building code test certificate) P-5316/053/14 MPA-BS)
- Water tightness: tested for pressurised water up to a maximum water pressure of 0.5 bar
- System components: primer, joint tape, steel profile, attachment anchor and crepe rubber strip
- Fasten the joint tape to the existing structure using a clamping profile
- U-shaped or O-shaped connections can also be created using factory-made welded structures
Downloads
de
en
ru
de
en
de
en
de
en
de
en
de
en
KUNEX® Joint tapes - Technical Information
Technical information for KUNEX® PVC-P Joint tapes, TPE joint tapes, ABS construction joints, ABS expansion joints, clamp joints, star tubes, puddle flanges and formed parts and accessories
Installation instructions KUNEX® Clamp joint
Please observe these installation and application instructions before installation. Our application technology and consulting engineers will be happy to answer any questions you may have.
Price list 2026 Shell construction / facade
Valid from February 1st, 2026
Order sheet KUNEX® Clamp joint tape accessories O (BK32)
With this order sheet, you can easily and conveniently register your order on the screen, send it to us by e-mail, fax or letter. We would be pleased to receive your inquiries and orders personally by phone.

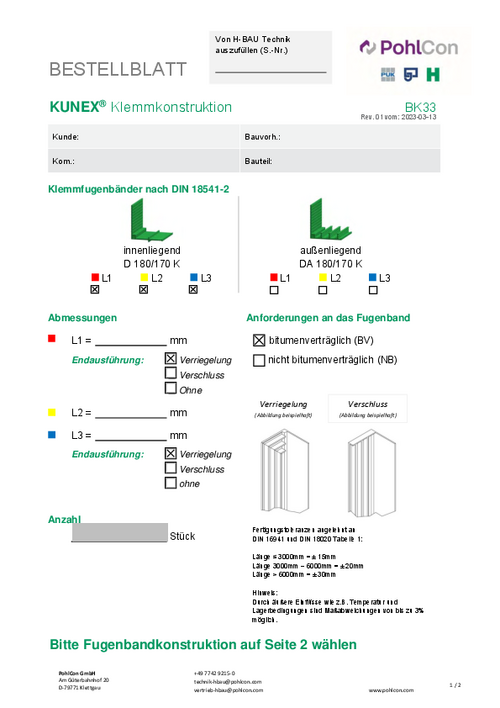

Order sheet KUNEX® Clamp joint tape accessories U (BK33)
With this order sheet, you can easily and conveniently register your order on the screen, send it to us by e-mail, fax or letter. We would be pleased to receive your inquiries and orders personally by phone.

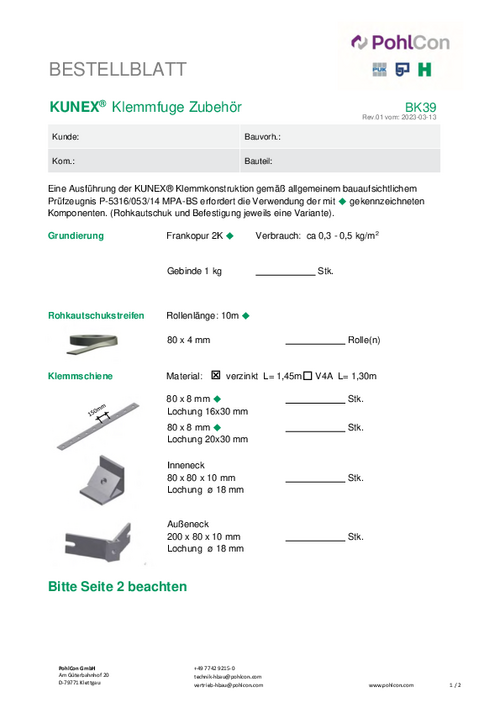

Order sheet KUNEX® Clamp joint tape accessories (BK39)
With this order sheet, you can easily and conveniently register your order on the screen, send it to us by e-mail, fax or letter. We would be pleased to receive your inquiries and orders personally by phone.
BIM- und CAD-Data
BIM for Installation parts KUNEX® Joint tapes (ALLPLAN)
SUPPARTS© Installation parts
ZIP (1.08 MB)
DownloadDownload
