In addition to the covers, optional accessories in various materials and coatings are available to supplement the cable support system. These include suitable accessories for connecting mesh cable trays together and for creating horizontal and vertical changes in the direction of the cable trays.
Mesh Cable Tray Accessories
GVR 4.0
Mesh cable tray snap-in connector
GV 30
Mesh cable tray universal connector
GVD 30
Mesh cable tray universal connector
GV-L 30
Mesh cable tray universal connector

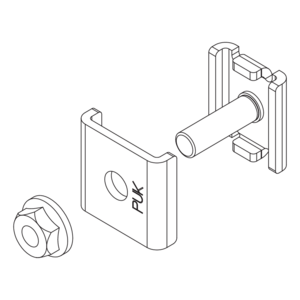

GVE
Mesh cable tray connector for mesh cable tray G 35
GVU
Mesh cable tray universal connector
GVK
Mesh cable tray connector clamping piece
KLU
Clamp fastening set
GH 6x24
Mounting hooks
GK-A
Mesh cable tray clamp
GBH 30
Spacer bracket for mesh cable tray grid size 30
GBH 50
Spacer bracket for mesh cable tray grid size 50
GBHK 30
Short spacer bracket for mesh cable tray grid size 30

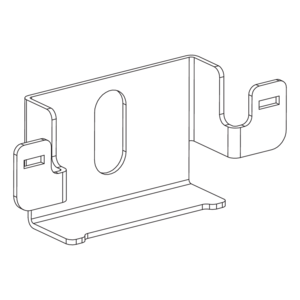

GBHKK
Short spacer bracket for G 35 mesh cable tray
GBHK 50
Short spacer bracket for mesh cable tray grid size 30
HB 50
Stand-off bracket

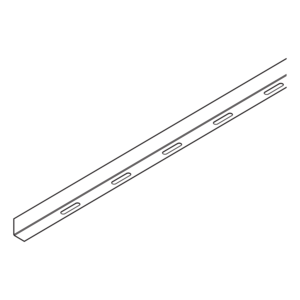

GTR 35
Mesh cable tray divider, height = 28 mm

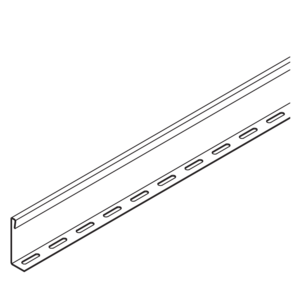

GTR 50
Mesh cable tray divider, height = 33 mm
GTR 60
Mesh cable tray divider, height = 50 mm
GTR 100
Mesh cable tray divider, height = 80 mm
GKAB
Mesh cable tray drop-out plate

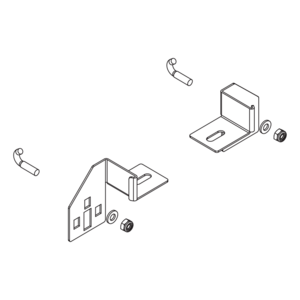

SABG
Side outlet plate Cable mesh tray
MP-G
Mounting plate
MP-G90
Mounting plate 90°

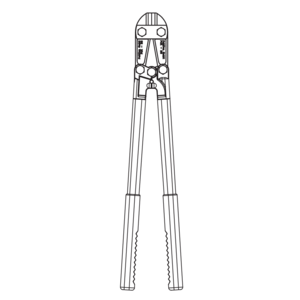

BS Bolt cutter
40° bolt flush cutter
KZS
Cold zinc spray

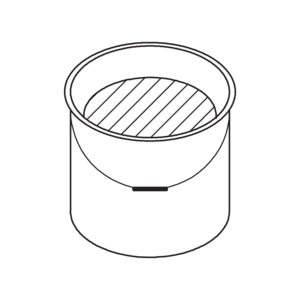

KZF
Cold zinc paint
