In addition to the covers, optional accessories in various materials and coatings are also available to supplement the cable support system, e.g. rail supports, wide-span connectors, separating strips or exit plates.
Wide-Span Cable Tray Accessories

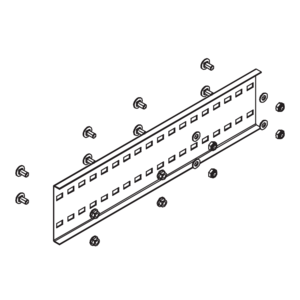

WPV 100
Wide-span cable tray connector, height = 95 mm
WPV 120
Wide-span cable tray connector, height = 115 mm
WPV 150
Wide-span cable tray connector, height = 145 mm

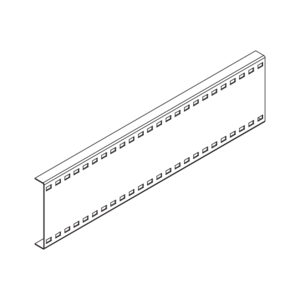

WLV 200
Wide-span cable ladder connector, height = 200 mm

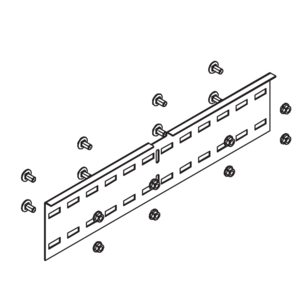

WPVH 100
Wide-span cable tray connector, horizontal, height = 85 mm
WPVH 120
Wide-span cable tray connector, horizontal, height = 105 mm
WPVH 150
Wide-span cable tray connector, horizontal, height = 135 mm
WLVH 200
Wide-span cable ladder connector, horizontal, height = 200 mm

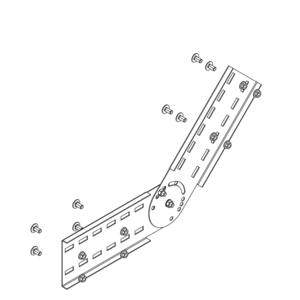

WPVV 100
Wide-span cable tray connector, vertical, height = 100 mm

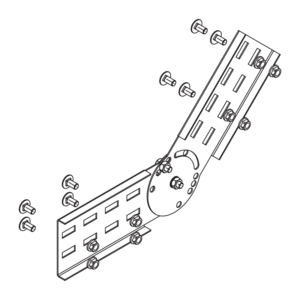

WPVV 120
Wide-span cable tray connector, vertical, height = 120 mm

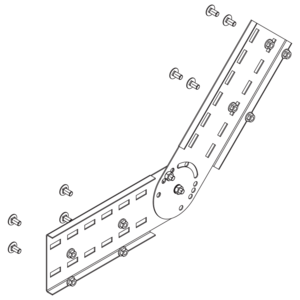

WPVV 150
Wide-span cable tray connector, vertical, height = 150 mm
WLVV 200
Wide-span cable ladder connector, vertical, height = 200 mm
VB
Bottom plate

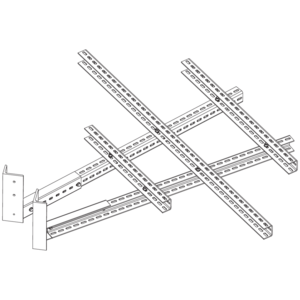

EBW
Corner support

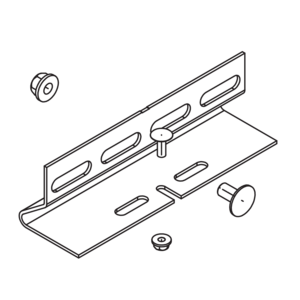

WPHS-K
Wide-span rail support (bracket)

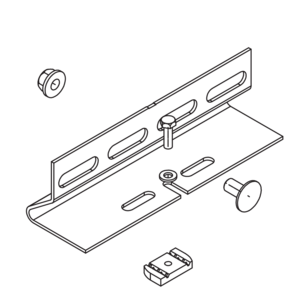

WPHS-A
Wide-span rail support (profile rail)

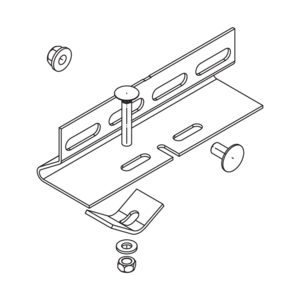

WPHS-P
Wide-span rail support (profile)
WPHS-IS
Isolation strip

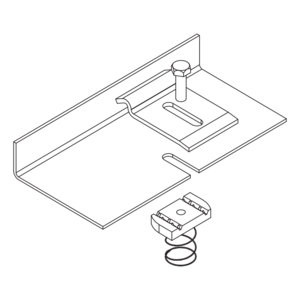

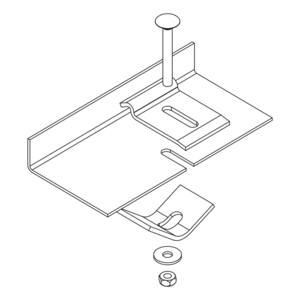

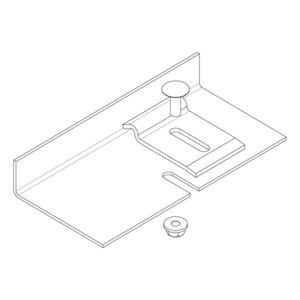

WLHS
Wide-span cable ladder rail support
WLHS-IS
Insulation strip
WLKL
Wide-span cable ladder hold-down clamp
WLKLA
Wide-span cable ladder hold-down clamp
WLKLT
Wide-span cable ladder clamp
WPTR 100
Wide-span divider, height = 50 mm
WPTR 120
Wide-span divider, height = 80 mm
WPTR 150
Wide-span divider, height = 100 mm
WTR 200
Wide-span cable tray divider, height = 100 mm

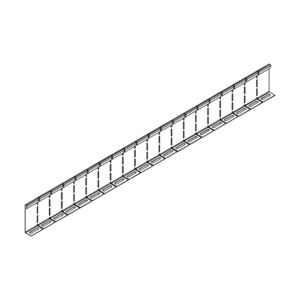

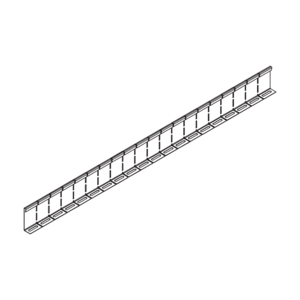

WPTRV 100
Wide-span cable tray divider, flexible, height = 50 mm
WPTRV 120
Wide-span cable tray divider, flexible, height = 80 mm
WPTRV 150
Wide-span cable tray divider, flexible, height = 100 mm
WTRV 200
Wide-span cable tray divider, flexible, height = 100 mm
WLRKAB
Wide-span cable tray drop-out plate
WLKAB
Wide span cable ladder drop-out plate
WPVTO
Wide-span cable tray connector, T-joint, top
WPLKAB
Wide-span cable ladder drop-out plate
WPRKAB
Wide-span cable tray drop-out plate
KATB
T-joint connector plate
KATBS
T-joint connector plate, sideways

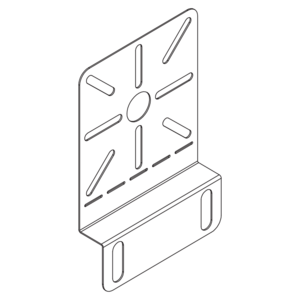

MP-W
Mounting plate
WPREB
Wide-span cable tray end plate
SWP 100
Protective cap, height = 100 mm
SWP 120
Protective cap, height = 120 mm
SWP 150
Protective cap, height = 150 mm
KZF
Cold zinc paint
KZS
Cold zinc spray
Downloads
de
en
de
en
de
de
de
en
Price list 2025 Building extension
Valid from February 1st, 2025, updated version from 31/03/2025.
Cable support systems - Complete catalogue
Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.
Wide-Span Cable Ladder WPL, Installation Guide
Assembly Instructions
PDF, 2.01 MB
Wide-Span Cable Tray WPR, Installation Guide
Assembly Instructions
PDF, 1.75 MB
Wide-Span Systems, Technical Information
Technical Information
BIM- und CAD-Data
de
BIM for Wide-span Systems
BIM Data
ZIP, 12.34 MB
