To complete the floor duct system, optional accessories in various materials and coatings are available, e.g. connectors, separating strips, floor duct brackets or side panels, in addition to the covers and formed parts.
Floor Duct Accessories

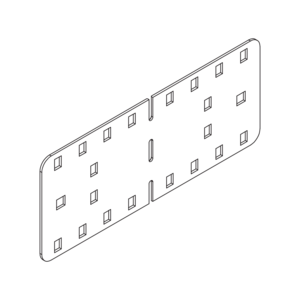

BKV 100
Floor duct connector, height = 95 mm
BKV 110
Floor duct connector, height = 95 mm
BKV45 100
Floor duct connector 45°, height = 95 mm
BKV45 110
Floor duct connector 45°, height = 95 mm
BKV90 100
Floor duct connector 90°, height = 95 mm
BKV90 110
Floor duct connector 90°, height = 95 mm
BKV135 100
Floor duct connector 135°, height = 95 mm
BKV135 110
Floor duct connector 135°, height = 95 mm
KLKV
Cable duct connector
BKRT 100
Floor duct divider, height = 100 mm
BKRT 110
Floor duct divider, height = 110 mm

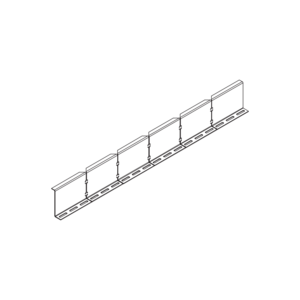

BKRTV 100
Floor duct divider, variable, height = 100 mm
BKRTV 110
Floor duct divider, variable, height = 110 mm

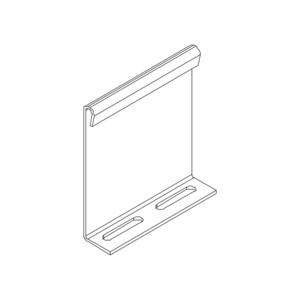

BKDS 100
Floor duct support profile, height = 100 mm
BKDS 110
Floor duct support profile, height = 110 mm

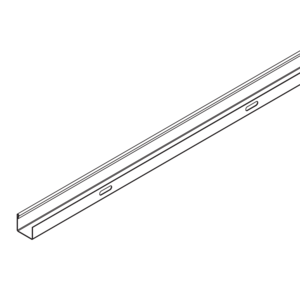

BKZ
Floor duct Z profile

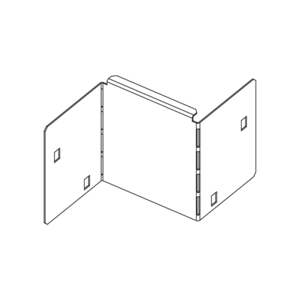

BKEB 100
Floor duct end plate, height = 100 mm
BKEB 110
Floor duct end plate, height = 110 mm
BKDU 100
Floor duct cover support, height = 100 mm
BKDU 110
Floor duct cover support, height = 110 mm

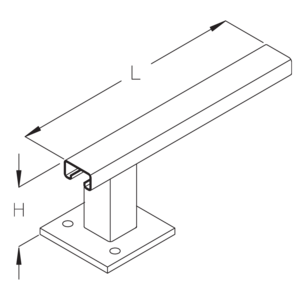

BKH
Floor duct holder, height = 110 mm

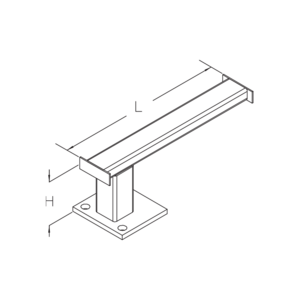

BKHR
Floor duct stand-off bracket, height = 110 mm
BKHRSV
Floor duct side trim
BKHRU
Floor duct bracket support
BKHC
Floor duct stand-off bracket, height = 90 mm
BKHCSV
Floor duct side trim
BKHZ
Floor duct support
BKHZSV
Floor Duct Side Panelling

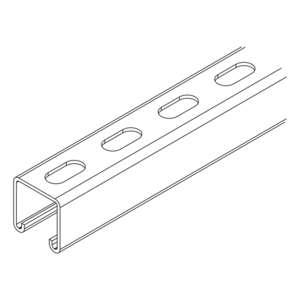

KHA 41
41x41 mm profile rail, perforated
KHZ
Z profile
BKPA
Floor duct equipotential bonding terminal block
KSB
Edge protection strip
ARB
Non-slip tape

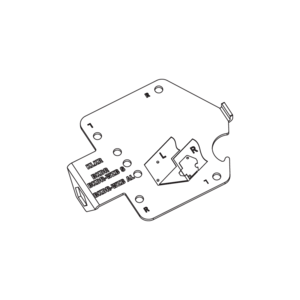

BKMT
Multitool for floor ducts
STB
Step drill bit
TBK
Torx bit, conical
BS Self-drilling screw
Self-drilling screw
FRSS
Truss-head bolt with square neck and slot, DIN 603

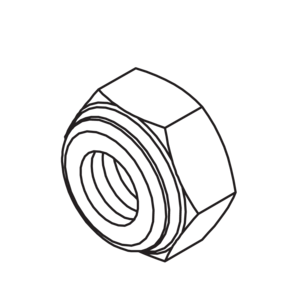

SEMSS
Hexagon nut, self-locking, DIN 985
FRIK
Round head screw with hexagon socket
KZS
Cold zinc spray

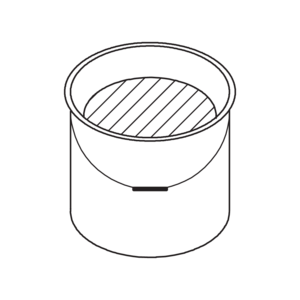

KZF
Cold zinc paint
