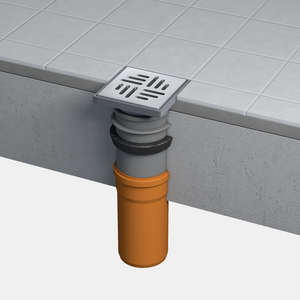

The H-BAU Technik PENTAFLEX® floor drain is designed for use with watertight reinforced concrete slabs (white tank). It is equipped with a removable odour trap and a waterstop. This seals the penetration against the surrounding concrete by means of the proven H-BAU Technik PENTAFLEX® coating. It can be connected to a piping system or used to collect surface water and discharge it into the wastewater pipes.
PENTAFLEX® Floor Drain
Benefits
- Easy assembly, simple installation
- Suitable for commercially available pipe systems
- Simple, fast, cost-effective
- Walkable; load capacity depending on design 0.3 t
Technical details
- Made of PP; slotted grate made of stainless steel or plastic (alternatively can be tiled)
- DN 110
- Dimensions: Height = 250 mm; attachment piece 150 × 150 mm, adjustable by 50 mm
- With PENTAFLEX® waterstop and removable odour trap
