Cable ladders are a flexible, integrated cable support system in combination with the corresponding formed parts, covers, accessories and support structures. The formed parts include horizontal and vertical arches, crossings and branches – i.e. elements that create changes of direction. The formed parts are available in various materials and coatings.
Cable Ladder Formed Parts

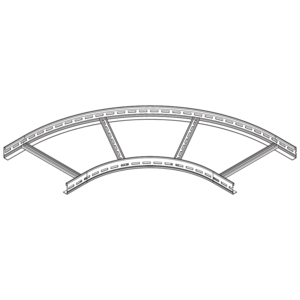

LGIB 60
Cable ladder internal bend, height = 60 mm
LGIB 100
Cable ladder internal bend, height = 100 mm

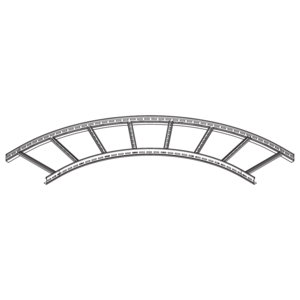

LGAB 60
Cable ladder external bend, height = 60 mm
LGAB 100
Cable ladder external bend, height = 100 mm

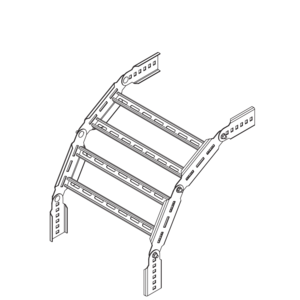

LGVB 60
Cable ladder vertical bend, height = 60 mm
LGVB 100
Cable ladder vertical bend, height = 100 mm

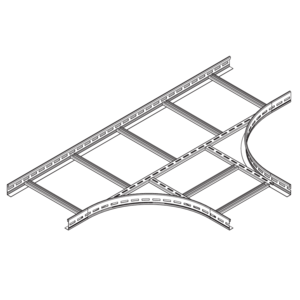

LGA 60
Cable ladder tee, height = 60 mm
LGA 100
Cable ladder tee, height = 100 mm

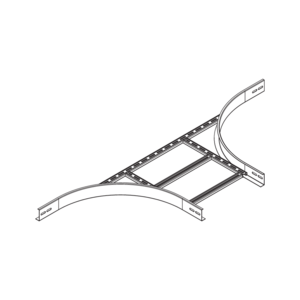

LGAA 60
Cable ladder add-on tee, height = 60 mm
LGAA 100
Cable ladder add-on tee, height = 100 mm

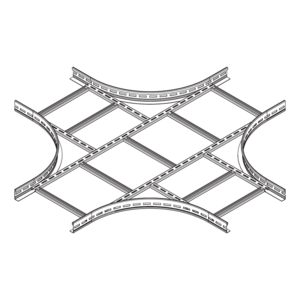

LGK 60
Cable ladder crossing, height = 60 mm
LGK 100
Cable ladder crossing, height = 100 mm
Vorteile
- Creates changes of the cable routing direction
- Easy to assemble
