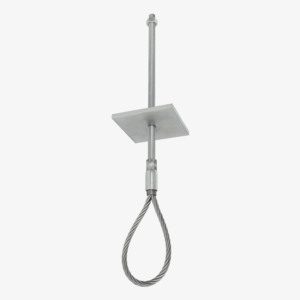

The lift shaft sling is an anchor point retrofitted in the shaft ceiling for temporary material loads, e.g. lift cars without passenger transport, during installation or maintenance work. It consists of a threaded rod with a steel wire rope sling, which is attached to the outer shaft ceiling through the ceiling using nuts and a steel plate. A sleeve, which is pressed together with the steel loop and the threaded rod, ensures the stability of the component. It is installed flush with the ceiling in the reinforced concrete ceiling with a minimum concrete quality of C25/30 with a protruding loop. The JLS is supplied as a ready-to-install component with a load capacity of 25 kN or 40 kN.
Lift Shaft Sling JLS
Vorteile
- Simplification of maintenance and installation work in existing buildings
- Non-twisting anchor point
- Optimum diameter of the sling for easy attachment of material loads
- Customised positioning thanks to subsequent push-through installation
- Can be retrofitted for flexible use in existing buildings
- Visible labelling of the load levels 25 kN and 40 kN
Downloads
de
en
de
en
de
en
de
en

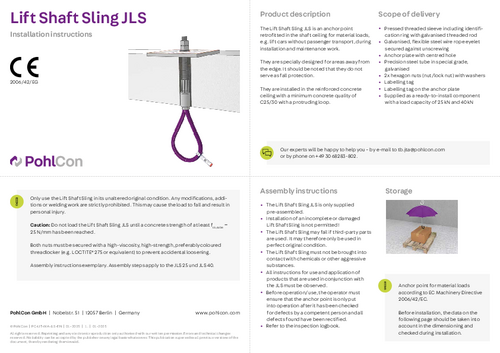

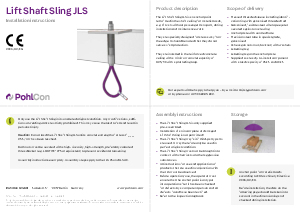

Lift shaft sking JLF - Installation instructions
Installation instructions

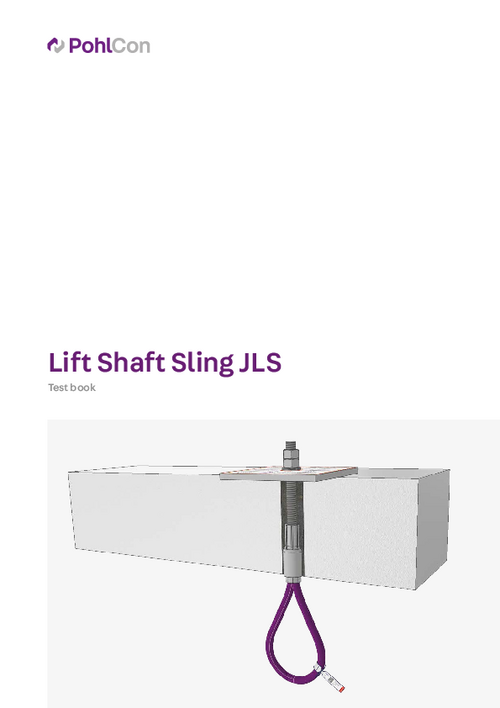

Lift Shaft Sling JLS - Test book
