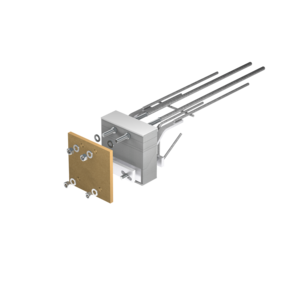

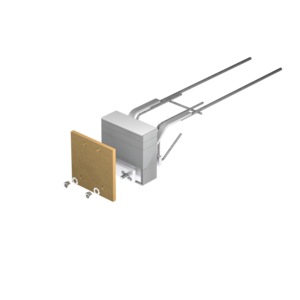

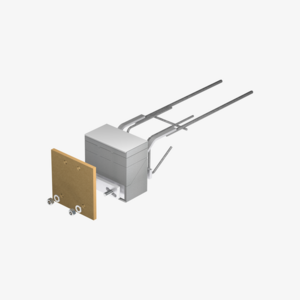

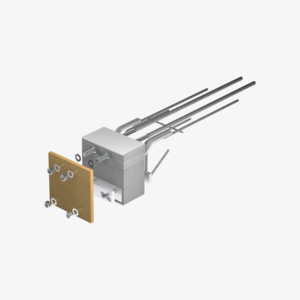

The thermally insulating ISOPRO® concrete-to-steel connection elements reliably create a frictional connection between steel structures and reinforced concrete components. The thermal insulation element consists of an 80 mm or 120 mm thick insulating body with a structurally effective framework for the safe transfer of forces. The adjustment plate is continuously adjustable and can be used to compensate any construction tolerances. The elements have national technical approval according to No. Z-15.7-313 and reliably reduce thermal bridges.
ISOPRO® 80/120 Concrete-Steel
Vorteile
- Simple and safe assembly due to continuous height adjustment
- Special solutions for unusual projects
- Prevents thermal bridges and consequently mould and moisture damage
- Reduces heating costs
- Reduces heat flow through reinforcing bar framework to a minimum
Downloads
de
en
ru
de
de
en
ISOPRO® 120 Thermal insulation elements - Technical information
Technical Information
Approval ISOPRO® Reinforcing Steel SM / SQ
Approval
PDF (1.78 MB)
DownloadDownload
Declaration of Performance ISOPRO®
Declaration of Performance for ISOPRO® thermal insulation elements
