JTA W hot-rolled anchor channels in combination with the suitable bolts form a fastening solution designed to withstand high, dynamic loads. As hot-rolled rails, they are concreted into reinforced and non-reinforced components. They reliably absorb tensile loads and transverse loads perpendicular to the channel axis. In addition to the standard version, the anchor channels are also available as curved versions, anchor channel pairs, corner pieces and special solutions.
Anchor Channel JTA W

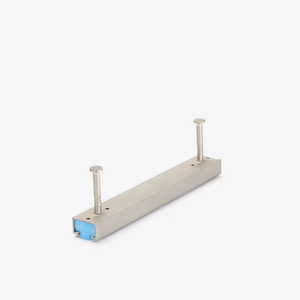

JTA W 40/22
Anchor channel, hot-rolled, with round or I anchor

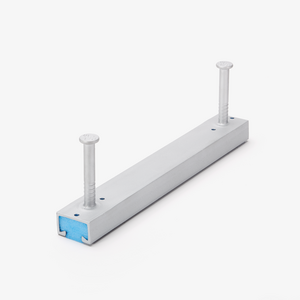

JTA W 40+
Anchor channel, hot-rolled, with round or I anchor

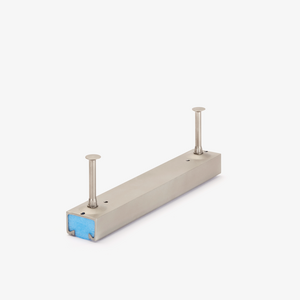

JTA W 50/30
Anchor channel, hot-rolled, with round or I anchor

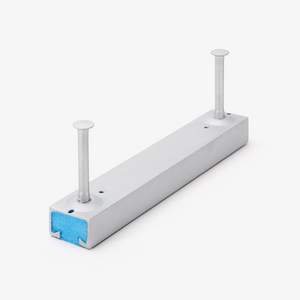

JTA W 50+
Anchor channel, hot-rolled, with round or I anchor

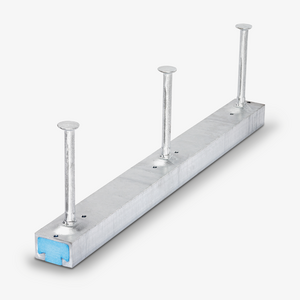

JTA W 53/34
Anchor channel, hot-rolled, with round or I anchor

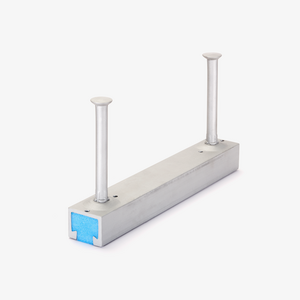

JTA W 55/42
Anchor channel, hot-rolled, with round or I anchor

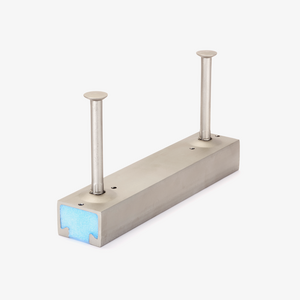

JTA W 72/48
Anchor channel, hot-rolled, with round or I anchor
Vorteile
- Fast, efficient and reliable fastening of heavy loads
- High fatigue strength under dynamic loads
- Time and cost-saving assembly using screws without drilling
- Available in stainless steel for corrosive environments
- Small edge clearances possible
- Reusable attachment
- Easy compensation of structural tolerances
- Approved almost worldwide
- Suitable for DGNB and LEED certified projects
- Approved for installation in components with fire protection requirements
- Special lengths available on request
