The floor installation range includes the UBK screed-flush duct systems. These products are heavy-duty ducts that provide a protected area for utility lines in areas with special requirements, especially in areas of the automotive industry and in manufacturing plants with driverless transport vehicles and robots. The removable covers gives users free access to the installed components and lets them be flexibly positioned. They consist of heavy-duty duct bases, heavy-duty dummy covers, side profiles and suitable accessory elements. The ducts are available with different dimensions.
Heavy-duty Screed-flush Duct System UBK

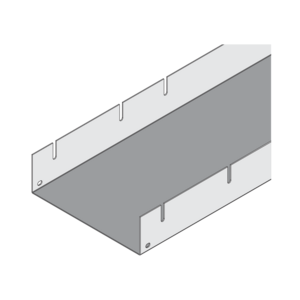

UBK
Lower part

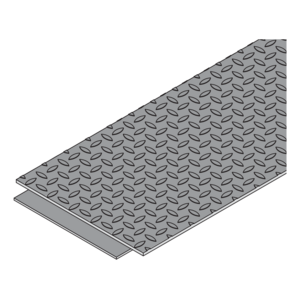

UBKD
Blind cover

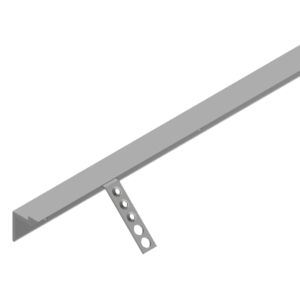

UBKPR
Side profiles

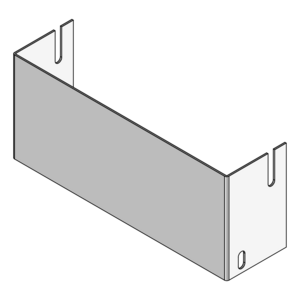

UBKEB
End piece

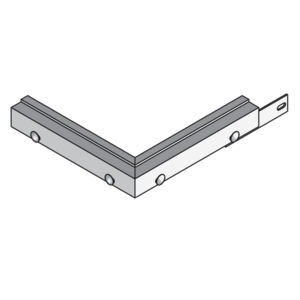

UBKIB
Profile inside bend

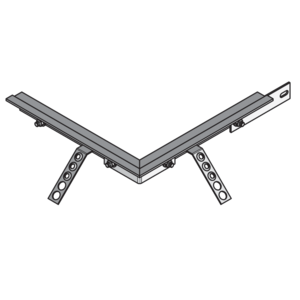

UBKAB
Profile outside bend

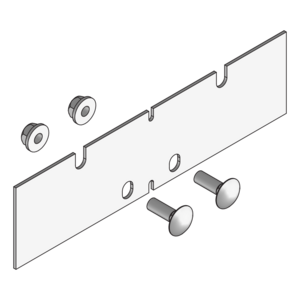

UBKV
Connector
UBKPRV
Connector

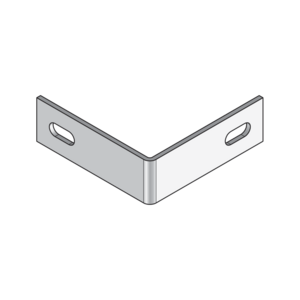

UBKPRVE
Corner connector

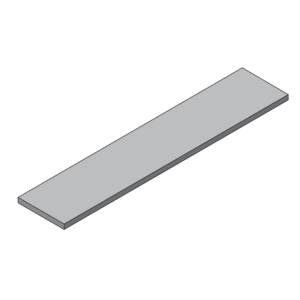

UBKDB
Spacer

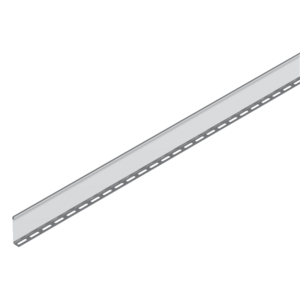

UBKTR
Separating strip
