LGG vertical ladders are a reliable solution for vertical cable and line routing that is mounted directly on walls. LGG vertical ladders consist of continuously perforated side rails with L profiles with welded rungs made of 30x15 mm profile rails. The system is fastened quickly and easily using ladder holders, dowels or fastening straps. The vertical ladders are available in lengths of 3000 and 6000 mm.

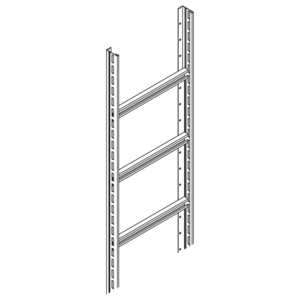

LGG Vertical Ladder, L profile
Downloads
de
en
de
en
es
ru
de
en
de
en
Cable Route Technical Information
Technical Information for vertical ladders LGG, STU, ST and accessories.
Cable support systems - Complete catalogue
Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.
Installation Instruction Vertical Ladders
Assembly instruction for vertical ladders LGG 60, STU 50, STU 60, STU 62, ST 81, ST 82
Vertical ladder LGG, STU, ST - Compact overview
Compact overview for LGG 60, STU 50, STU 50-3E, STU 60, STU 62, ST 81, ST 82, LGV, LGTR, STD-A, RD, STLS, STUS
