KTW cable trays are a simple and space-saving way of routing cables directly along walls, for example in tunnels and supply shafts. KTW-R cable support trays are equipped with riveted back rails and can be installed in any single or multiple tiers. KTW-A cable support trays can be mounted in single or multiple tiers and at individually specified distances. They are ideal for direct attachment to profile rails. The widths of the cable support trays can accommodate cable diameters from 40 to 120 mm depending on which and how many cables are to be laid.
KTW Cable Support Trough

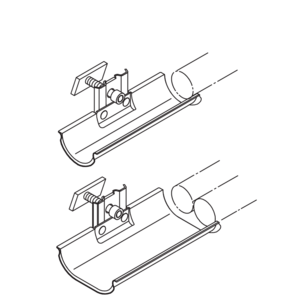

KTW-A
Cable support trough, Ø 100 mm

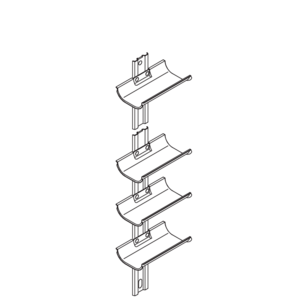

KTW-R 10
Cable support troughs, Ø 100 mm

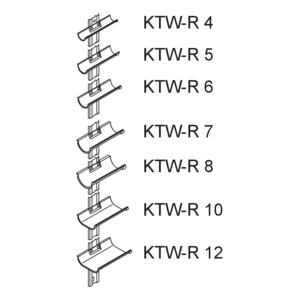

KTW-R 4-12
cable support trough, Ø 40-120 mm
Downloads
de
en
de
en
Price list 2025 Building extension
Valid from February 1st, 2025, updated version from 31/03/2025.
Cable support systems - Complete catalogue
Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.
