LGG cable ladders can be used for neat and tidy cable routing. They consist of continuously perforated bars and rungs (profile rails 30 x 15 mm) and are available in lengths of 3000 mm and 6000 mm. The rungs are welded to the side rails. The standard range includes rails 60 and 100 mm high and common cable ladder widths of 200 to 600 mm and so covers most common applications. The cable trays can be installed quickly and easily. Horizontal and vertical changes of direction are also no problem. Optionally, the matching covers provide additional protection.

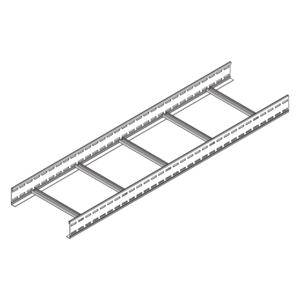

LGG Cable Ladder, L profile
Vorteile
- Safe, robust routing of power cables on ceilings and walls
- For medium to large gaps between supports
- For medium to large cable diameters
- Easy to assemble
- Ensures a high level of air circulation
- Can be customised on request, e.g.: increased zinc coating thickness or other colour coating
Downloads
de
en
de
en
es
de
en
de
en
en
de
en
de
en
Cable ladders - Technical information
Technical information for LGG cable ladders
Cable support systems - Complete catalogue
Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.
Cable ladders - Assembly instructions
Assembly instructions for LGG, LGGS, LGIB, LGAB, LGVB, LGA, LGAA, LGK, LD, LDR, LIBD, LIBDR, LAD, LADR, LKD, LKDR, LD-SW, LGV, LGVH, LGVV, LGTR, LGKAB
Cable Ladder LGG, LGGS - Compact overview
Compact overview of cable ladders and accessories: LGG, LGGS, LGTR, LGKAB, KLTL, LGIB, LGAB, LGA, LGVB, LGK, SL, LGV, LGBH, LGVHV, LGVV
