Wall brackets are mounted on walls or on steel beams and are used to fasten cables. Some consoles also serve as support arms on bracket holders. The wall brackets are designed for various loads and tray widths. Use the KWLL bracket for mesh cable trays and cable trays up to 300 mm wide and the KSLW and KWF brackets for trays up to 400 mm wide. KW and KWMS are used for tray widths up to 600 mm and especially for cable ladders. The arms KWS, KWSS and the corner attachment EBW are used to carry heavy loads and bridging wide gaps between supports. KIS and KISS are suitable for suspending wide-span trays from steel beams.
Wall Brackets

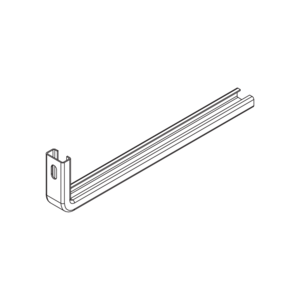

KWLL
Wall bracket, light-duty

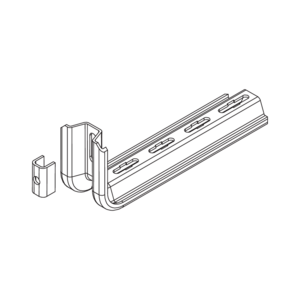

KSLW
Wall bracket, light-duty
KWW
Wall bracket, standard-duty

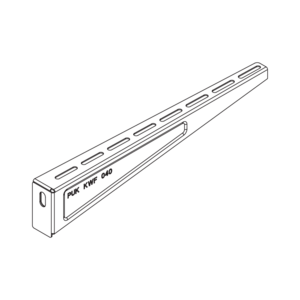

KWF
Wall/strut bracket, light-duty

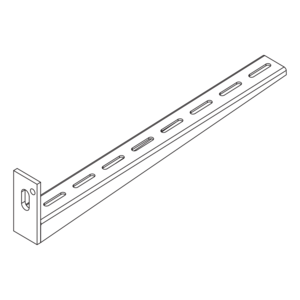

KWFL
Wall / strut bracket, shallow

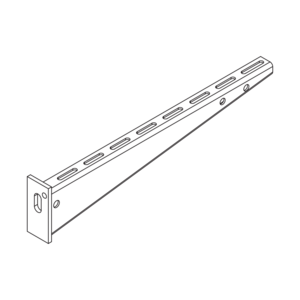

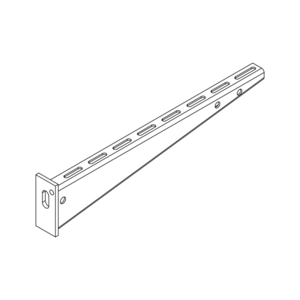

KW
Wall/strut bracket, standard

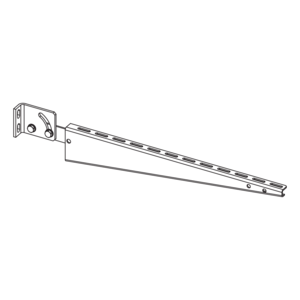

KWD
Swivel bracket
KWMS
Wall/strut bracket, medium-duty

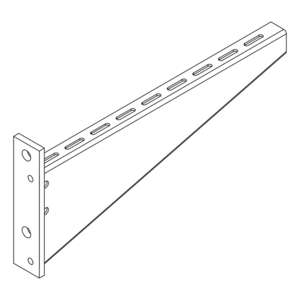

KWS
Wall/strut bracket, heavy-duty
KWSS
Wall/strut bracket, extra heavy-duty
KIS
Wall bracket, heavy-duty

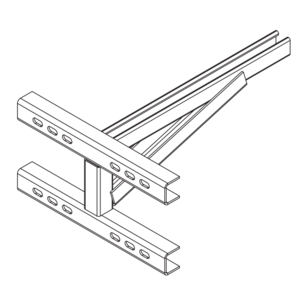

KISS
Wall bracket, extra heavy-duty

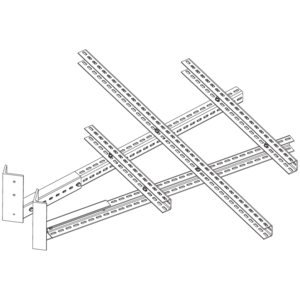

EBW
Corner support
Accessories
