Ceiling brackets are used to suspend cable trays and mesh cable trays from ceilings. They are suitable for light loads and trays up to 300 or 400 mm wide. The fixed ceiling brackets make it easy to install the cables.
Ceiling Fixed Brackets
DB-FL
Ceiling brackets, flat
DB

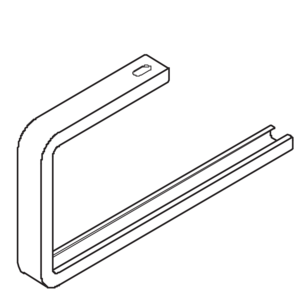

Ceiling brackets
DKSL
Ceiling brackets, light
KC

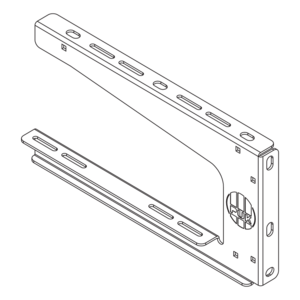

Support bracket, C-profile
Vorteile
- Ceiling suspension of mesh cable trays and cable trays
- Easy cable installation
- Light, robust solution for trays up to 300 and 400 mm wide
- Simple ceiling attachment with a single part
