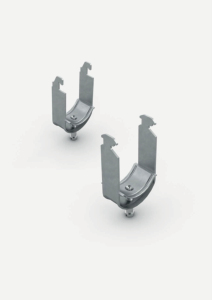

Cable clamps are a long-established solution for routing single cables and bundles of cables up to 175 mm in diameter vertically or horizontally on ceilings and walls. They are used in particular in tunnels or supply shafts and in connection with vertical ladders. Cable clamps are attached to profile rails, tensioning straps, profiled steel or flat steel as well as directly to the substrate. Form-stabilising counter troughs and double troughs should always be used to prevent cable deformations due to excessive point loads on the cables. Special clamps with special plastic troughs are available for laying high-frequency cables. The clamps are also available with lock nuts. This prevents unintentional loosening of the clamp.
Cable Clamps

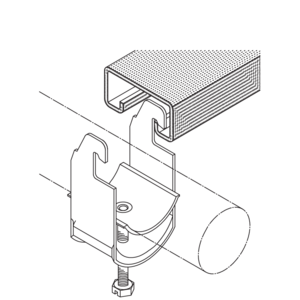

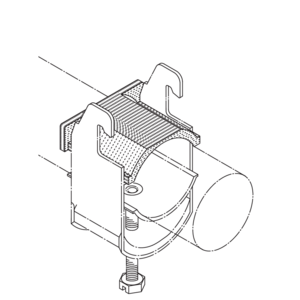

AC Cable Clamp

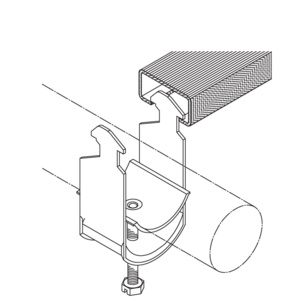

H Cable Clamp

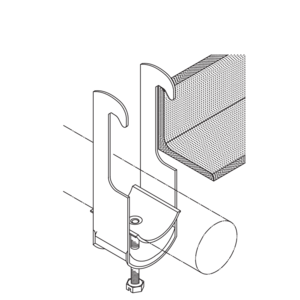

S Cable Clamp

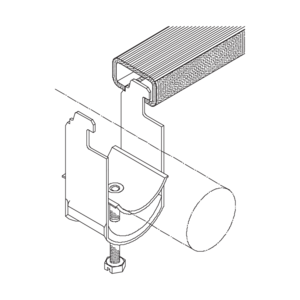

B Cable Clamp

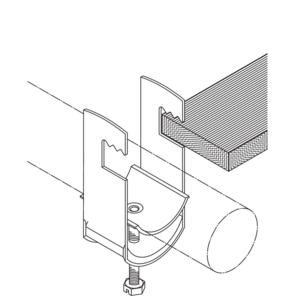

U Cable Clamp

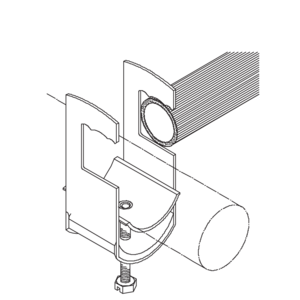

RU Cable Clamp

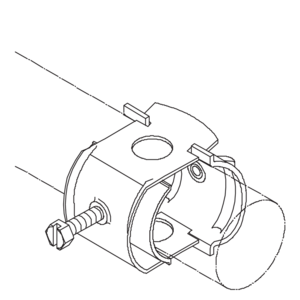

W Cable Clamp

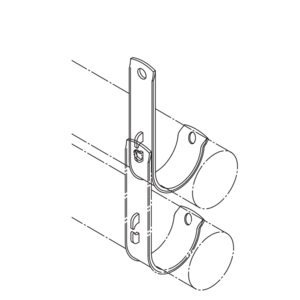

HK Cable Hook

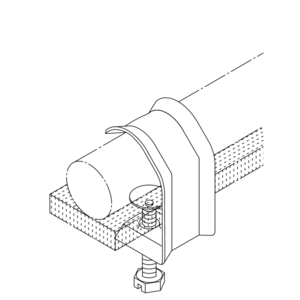

KH Cable Holder

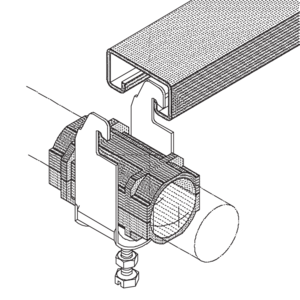

Waveguide/High Frequency Cable Clamps
Cable Troughs
Accessories
Downloads
de
en
es
de
en
de
de
de
en
Cable support systems - Complete catalogue
Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.

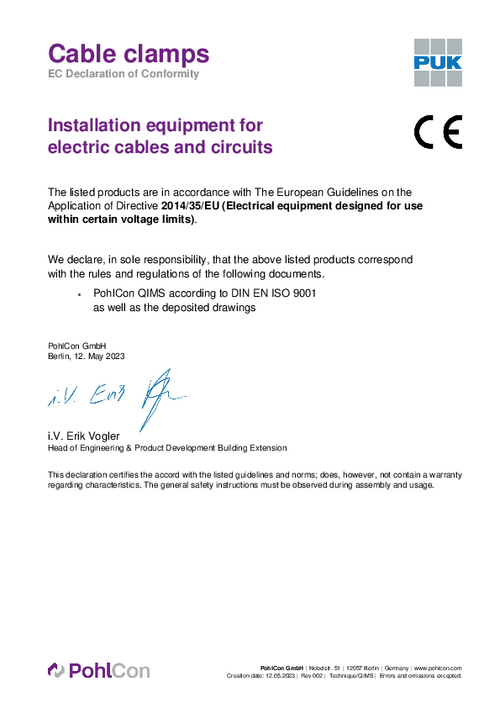

EC Declaration of Conformity Cable clamps
Installation equipment for electric cables and circuits
3335-772-11-3 - Expert statement
DIN 4102-12
Standardised supporting structure: Cable clamps
Fire resistance duration: F30; F60; F90
Functional maintenance classes: E30; E60; F90
Fastening distance: ≤ 0.3 m; ≤ 0.4 m
Period of validity: 06.07.2027
PDF, 834.47 KB
DownloadDownload
Red Folder - Function Maintenance Load-Bearing Structure DIN 4102-12
Catalog
PDF, 333.05 KB
DownloadDownload

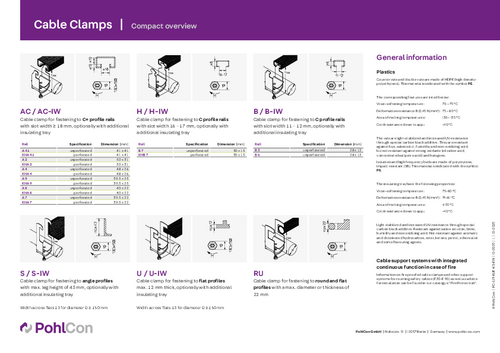

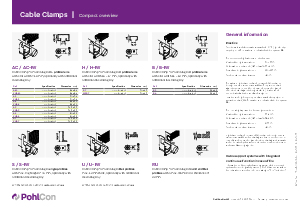

Cable Clamps - Compact overview
Compact overview of Cable Clamps and accessories: AC, AC-IW, H, H-IW, B, B-IW, S, S-IW, U, U-IW, RU
Our finishing services
Whether apartment blocks, office complexes or industrial plants: as your reliable partner for numerous applications and construction phases, we support you in every project with expert advice and support services. This allows you to concentrate fully on your core business.
