Fastening Accessories

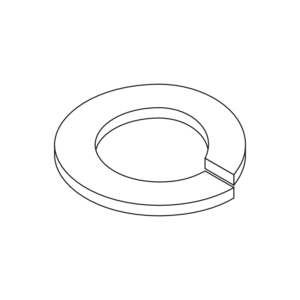

FR
Spring washers designed according to the former DIN 127

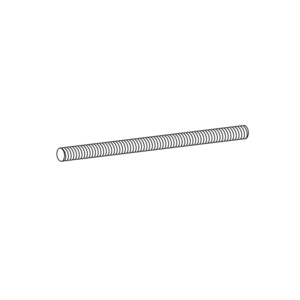

GS
Threaded rod, DIN 976-1
JAM
Channel nut, with or without spring
JGM A
Hook-head locking plate, threaded plate for spaced mounting
JGM B
Hook-head locking plate, threaded plate for spaced mounting
JGM C
Hook-head locking plate, threaded plate for spaced mounting
JGM D
Hammer-head locking plate, threaded plate for spaced mounting
JGM G
Hammer-head locking plate, threaded plate for spaced mounting
JGM H
Hammer-head locking plate, threaded plate for spaced mounting

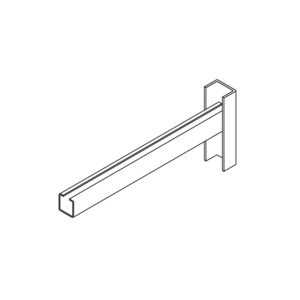

JKO28
Profile bracket with support profile

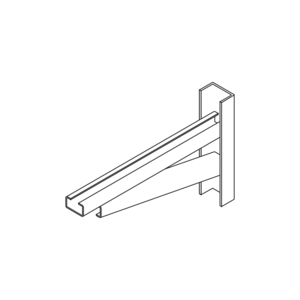

JKO36
Profile bracket with support profile
KP
Clamping plate, with slot, in accordance with DIN 3568
KP-A
Clamping plate for attaching crane rails

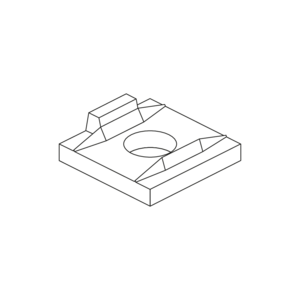

JKZS
Toothed washers for slip-resistant bolt connections in slots
JNA Series 12
Nail anchor for connecting timber components to concrete
JNA Series 18
Nail anchor for connecting timber components to concrete

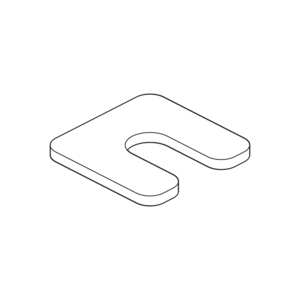

JVS
Horseshoe shim for shimming support corbels on the bearing plate
JVL
Square bearing plate for shimming support corbels on the compression bearing

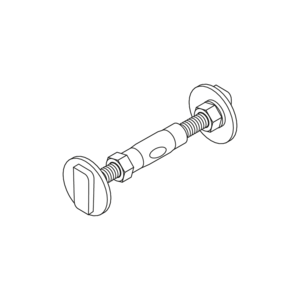

JSV28
Clamp connection for tension-resistant and pressure-resistant connection of concrete components
JSV38
Clamp connection for tension-resistant and pressure-resistant connection of concrete components
JSV40
Clamp connection for tension-resistant and pressure-resistant connection of concrete components
JSV50
Clamp connection for tension-resistant and pressure-resistant connection of concrete components
ÖM
Eye socket for introducing tensile forces into concrete components
RM
DIN 582 ring nuts

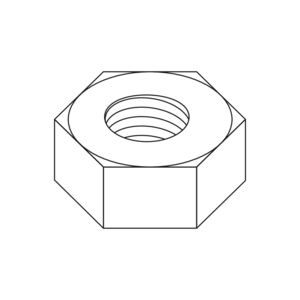

SK
Hexagon nut in accordance with DIN EN ISO 4032

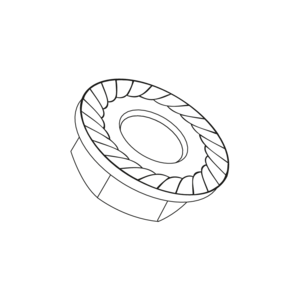

SKF
Hexagonal flange nut according to DIN EN 1661

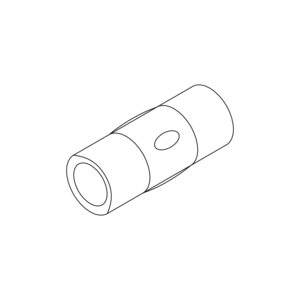

SP
Clamp sleeve for pressure-resistant and tension-resistant connection of concrete components
US
Washers, according to DIN EN ISO 7093-1 and 7089
VM
Coupling sleeve

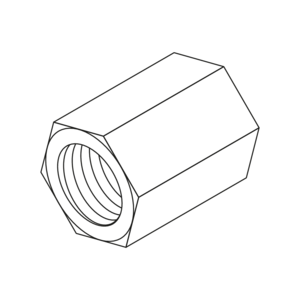

VMSK
Hexagon coupling sleeve

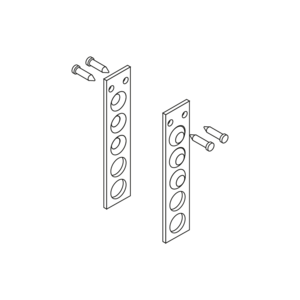

JTBEB
End anchor for securing shortened JTB channels
JMA Series 12
Brick tie anchor for fastening masonry to channels
JMA Series 18
Brick tie anchor for fastening masonry to channels
Fastening Accessories
With the right accessories, our products fasten components safely and reliably. The fixing accessories include end anchors, clamp connections, washers and much more. They are optimally adapted for use with JORDAHL channels and special screws.
