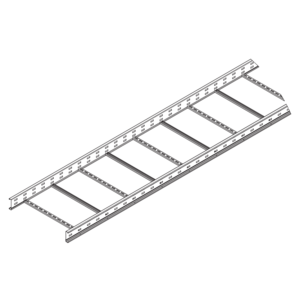

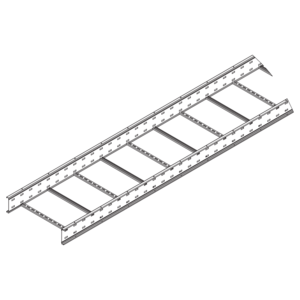

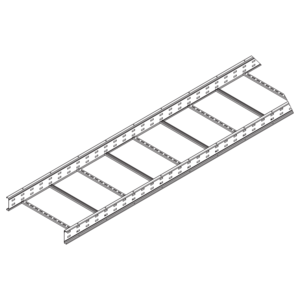

WPL Wide-span Cable Ladder

WPL wide-span cable ladders easily conduct cables even over large intervals of up to eight metres between fixtures. Wide-span cable ladders are therefore ideal for power cables in industrial halls or power plants. The rungs are made of perforated profile rails and are welded in place to increase transverse rigidity. In addition, sufficient air can circulate around the cables to prevent heat build-up. Our wide-span cable ladders are available in heights of 100, 120 and 150 mm, in widths of 200, 300, 400, 500 and 600 mm and come in a standard length of 6000 mm. Special sizes up to a width of 1 m can also be manufactured on request.


Downloads

    Price list 2025 Building extension

    Valid from February 1st, 2025, updated version from 31/03/2025.

    • de

    • en

    Cable support systems - Complete catalogue

    Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.

    • de

    • en

    Wide-Span Systems, Technical Information

    Technical Information

    • de

    • en

    Certificate of Compliance for PohlCon Cable Trays

    Certificate Number: UL-US-2232079-1
    BK, BKOS, G, GI, GIS, GTD, GTDW, LGG, LGGS, R, RG, RGS, RI, RIS, RS, WPL, WPR, Cable Tray Fittings and connectors

    , 0.00 B

    • en

    Download

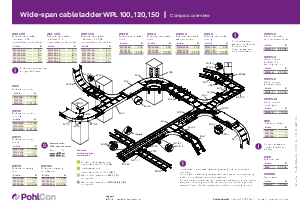

    Wide-Span Cable Ladder WPL 100, 120, 150 - Compact overview

    Compact overview of wide-span cable ladders and accessories: WPL, WPLB, WPLA, WPLK, WPV, WPTR, WPHS, WPD

    PDF, 1.35 MB

    • de

    Download
