The round BODO floor sockets are part of the range of floor installation systems and offer maximum flexibility when planning localised power supply in screed and raised floors. Thanks to high-quality materials - available in aluminium, brass or stainless steel - BODO blends stylishly and discreetly into the room. In addition to its flexible configuration options, the floor socket is characterised by its patented opening mechanism, which enables convenient and safe opening. The floor socket is suitable for both dry and wet-cleaned floors.
When closed, it can withstand being driven over by a weight of up to 1.5 tonnes - without affecting its visual or mechanical properties - and is also suitable for machine cleaning. This makes the BODO floor socket the ideal solution for museums, car showrooms or shopping centres. The surface-mounted version is particularly suitable for spaces that are constantly changing, such as exhibition areas or event venues.
Floor Sockets BODO

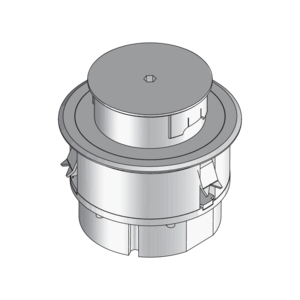

BODO N
Single outlet with one floor socket and one data module, wet-clean, round
BODO N3
Single outlet with one floor socket, wet-clean, round
BODO N4
Single outlet with two floor sockets, wet-clean, round

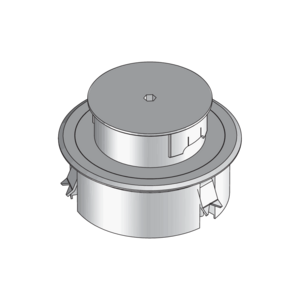

BODO NL
Single outlet, wet-clean, round, empty

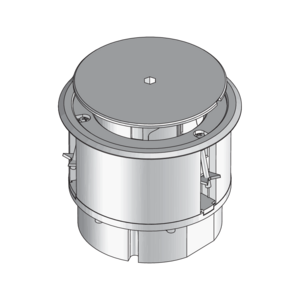

BODO T
Single outlet with single floor socket, dry-clean, round

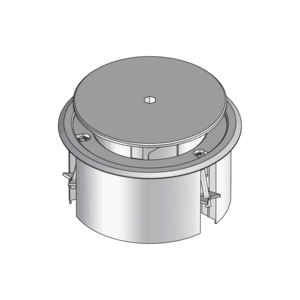

BODO TL
Single outlet, dry-clean, round, empty
BODO NA
Cable outlet, dummy

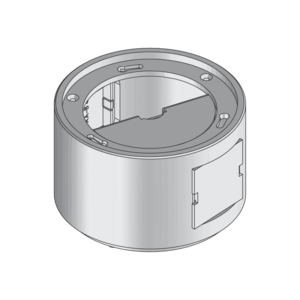

BODO NAT
On-floor tube outlet, empty

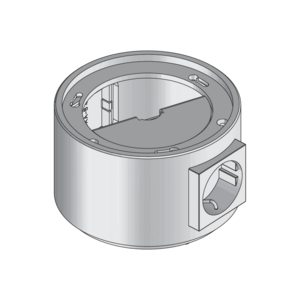

BODO NAT-W
On-floor tube outlet with one socket
Vorteile
- Stylish and safe thanks to reversible tube and bayonet lock
- Ideal for dry-cleaned, damp-cleaned and wet-cleaned indoor floors
- High-quality material
- Optimal power output for heavy-duty applications (BODO N)
- Suitable for cleaning machines when closed (BODO N)
- VDE-compliant power supply
Downloads
de
en
de
en
de
de
de
en
Units for screed and hollow floors - Technical information
Technical Information
Floor installation systems - Catalogue
Catalogue for screed-flush and screed-covered duct systems, installation units, floor sockets, mounting boxes and accessories.
VDE Certificate 40035721 BODO
Certificate
PDF (253.73 KB)
DownloadDownload
Electrical and Electronic Devices – Information from Manufacturers for Commercial Users
Declaration
PDF (106.06 KB)
DownloadDownload
EC Declaration of Conformity for Underfloor systems
Installation equipment for electric cables and circuits
