PENTAFLEX KB® joint sheets are suitable for sealing construction joints in watertight concrete structures. They are resistant to a wide range of organic and inorganic media. PENTAFLEX KB® can be used for construction joints exposed to pressurised and unpressurised water in wall/base or wall/slab areas and in wall/wall or floor/floor areas. The high elasticity of the special coating forms a secure seal in the event of the concrete components shrinking. An anchoring depth of 30 mm is sufficient to withstand a water pressure of 5 bar. A guide marking indicates the correct installation depth.
PENTAFLEX KB®

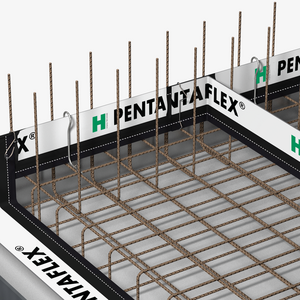

PENTAFLEX KB® 167
joint sheet for almost all construction joints

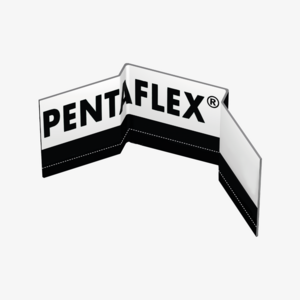

PENTAFLEX KB® Corner
joint sheet for construction joints in corner areas

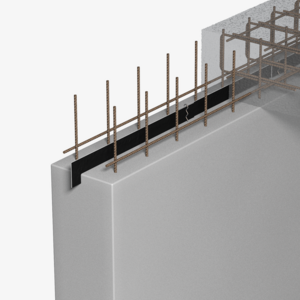

PENTAFLEX KB® 80
joint sheet for construction joints in walls/slabs
Vorteile
- Fast, secure sealing of all construction joints
- German building code test certificate (abP) and ETA approval
- Radon-proof
- Resistant to a wide range of organic and inorganic media
- Simple and reliable connection of the individual elements and points of crossing
- No formed parts or special tools/adhesive material required
- Includes joint clips and cross clips
Downloads
de
en
de
en
de
en
de
en
de
de
en
de
en
de
de
en
de
General building authority test certificate PENTAFLEX® KB, FTS, OBS, ABS, Modul (general technical approval certificate)
General Building Authority Test Certificate
LEED Product Declaration PENTAFLEX®
Environmental product declaration

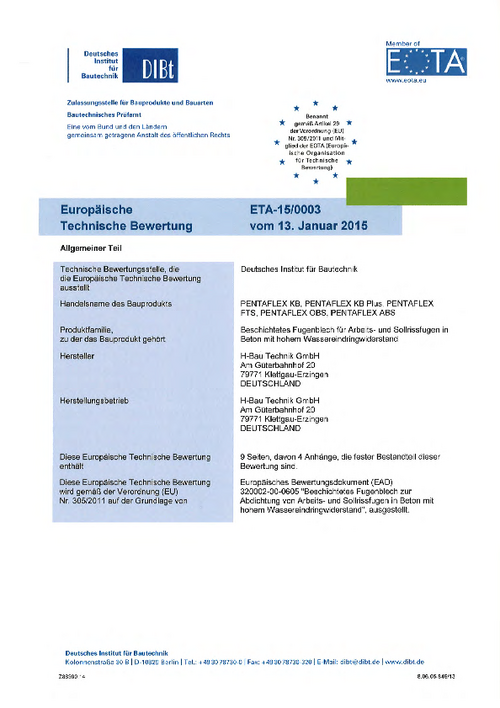

ETA 15/0003 PENTAFLEX®
Approval
PENTAFLEX® - Technical information
Technical information

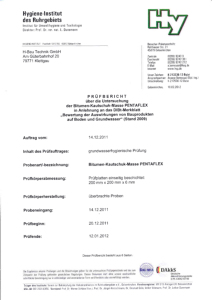

Test Report Groundwater Hygiene PENTAFLEX®
Declaration
PDF (237.39 KB)
DownloadDownload
Declaration of Performance PENTAFLEX®
Declaration
DGNB Product Declaration PENTAFLEX®
Environmental product declaration

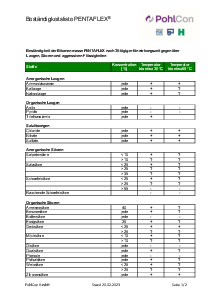

PENTAFLEX® Water Stop Strip Durability
Declaration
PDF (468.77 KB)
DownloadDownload

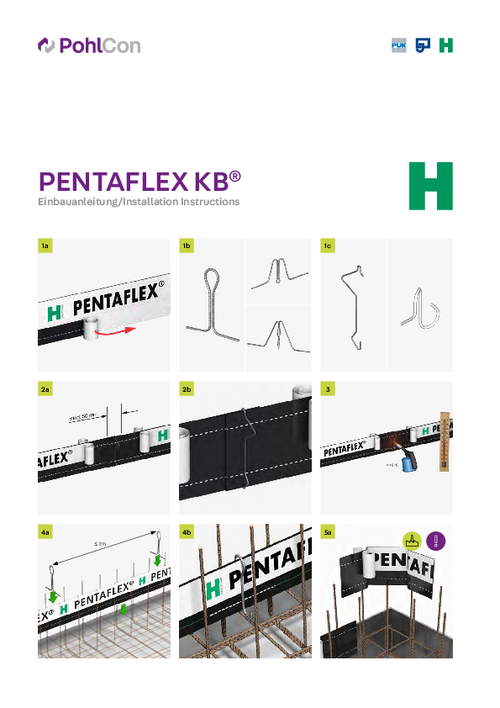

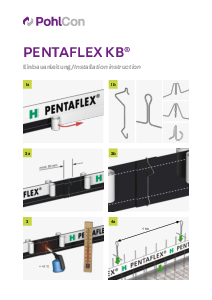

Installation instructions PENTAFLEX® KB
Please observe these installation and application instructions before installation. Our application technology and consulting engineers will be happy to answer any questions you may have.
Price list 2026 Shell construction / facade
Valid from February 1st, 2026
PDF (16.57 MB)
DownloadDownload
