In addition to the covers, optional accessories in various materials and coatings are available to supplement the cable support system, e.g. gutter connectors, connecting plates, separating strips and protective rings.
Cable Tray Accessories
KLTR
Beam clamp for cable trays
SKLL-R
Clamping claw, light with cable tray attachment
RAB 35
Cable tray end plate, height = 20 mm
RAB 60
Cable tray end plate, height = 45 mm
RAB 85
Cable tray end plate, height = 70 mm
RAB 110
Cable tray end plate, height = 95 mm
RGV 35
Cable tray side connector, height = 20 mm
RGV 60
Cable tray side connector, height = 45 mm
RGV 85
Cable tray side connector, height = 70 mm

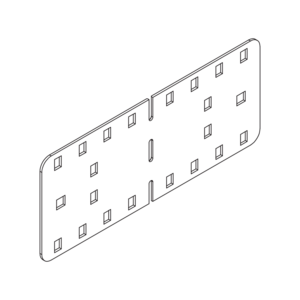

RGV 110
Cable tray side connector, height = 95 mm
RIV 60

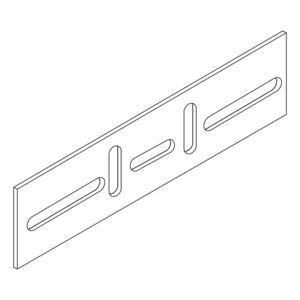

Installation cable tray connector, height = 45 mm

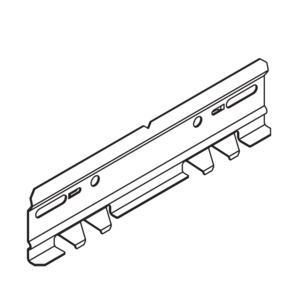

RGVS 60
Cable tray side snap-in connector, height = 60 mm

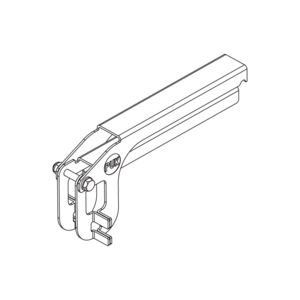

RGVST
RGVS assembly tool
VB

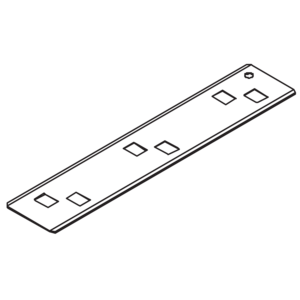

Bottom plate
REB
Cable tray end plate
HB 50
Stand-off bracket

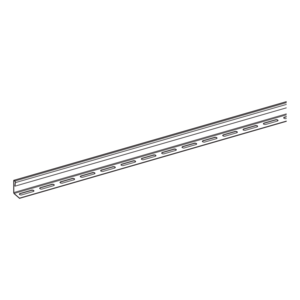

RTR 35

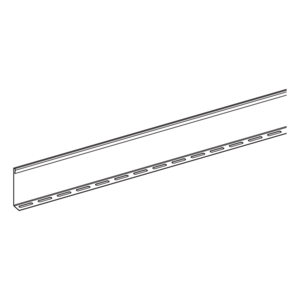

Cable tray divider, height = 33 mm
RTR 60
Cable tray divider, height = 50 mm

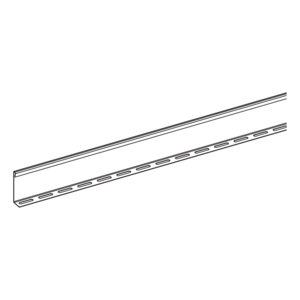

RTR 85
Cable tray divider, height = 80 mm
RTR 110
Cable tray divider, height = 100 mm
RITR 60
Installation cable tray divider, height = 58 mm
RTRV 35
Cable tray divider, variable, height = 33 mm

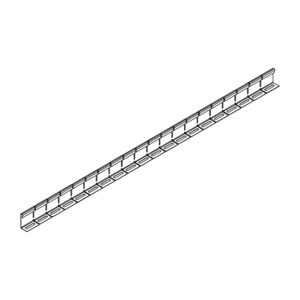

RTRV 60
Cable tray divider, variable, height = 50 mm

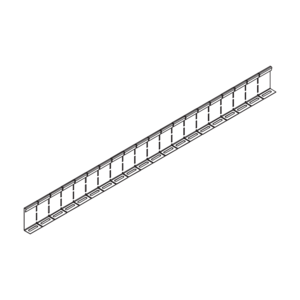

RTRV 85
Cable tray divider, variable, height = 80 mm

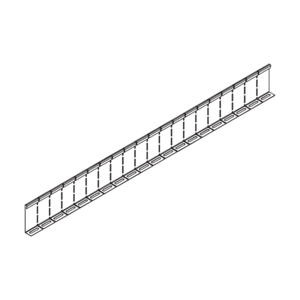

RTRV 110
Cable tray divider, variable, height = 100 mm
RKAB
Cable tray drop-out plate

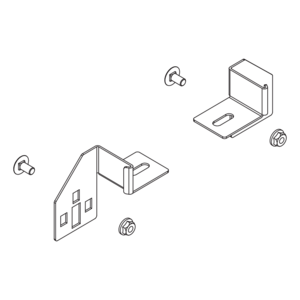

SABR
Side outlet plate Cable tray
KATB
T-joint connector plate
KATBS
T-joint connector plate, sideways
KSR 35
Cable protection ring
KSR 50
Cable protection ring

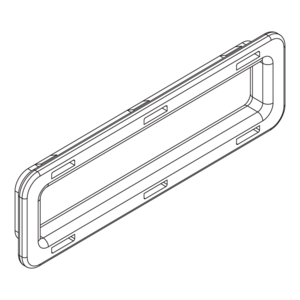

KSR 94
Cable protection ring
KSB
Edge protection strip

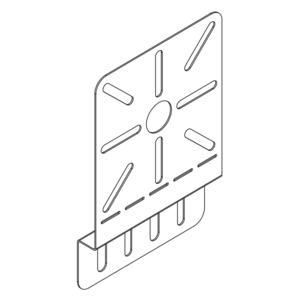

MP-RG
Mounting plate
AHB
Suspension bracket
SRI 60
Protection cap
SRI-EU
Protection cap
SRI-EO
Protection cap
KLF
Spring clamp fastener
KZS
Cold zinc spray
KZF
Cold zinc paint
MKB
Adhesive metal strip
Downloads
de
en
de
en
es
ru
de
en
es
de
en
Cable trays - Technical information
Technical Information
Cable support systems - Complete catalogue
Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.
Cable trays - Assembly instructions
Assembly instruction for R, RG, RGM, RGS, RGL, RI, RIS, RD, RDR, RID, RIDR, RB, RIB, RBV, RAE, RAA, RA, RIA, RK, RVB, RR, RDS, RBD, RBDR, RIBDS, RBD45, RBVD, RBVDR, RAED, RAAD, RAADR, RAD, RADR, RIADS, RKD, RKDR, RRD, RRDR
Cable Tray R 60, RG 60 - Compact overview
Compact overview of cable trays and accessories: R, RG, RGV, VB, RTR, DB, DKSL, KDU, KHUSS, GBAR, KWF, MA, KWMS, RD, RKAB, RTRV, RBV, RVB, REB
