WPR wide-span cable trays easily conduct cables even over large intervals of up to eight metres between fixtures. The weight-optimised wide-span cable trays have high load-bearing capacities due to their rail supports. The side rail is continuously perforated and folded outwards to reinforce the component and protect the cables. In addition, the transverse rigidity is increased by welded-in and crimped insert panels. Our wide-span cable trays are available in heights of 100, 120 and 150 mm, and in widths of 200, 300, 400, 500 and 600 mm and come in a standard length of 6000 mm. Special sizes can also be produced on request.
WPR Wide-span Cable Tray

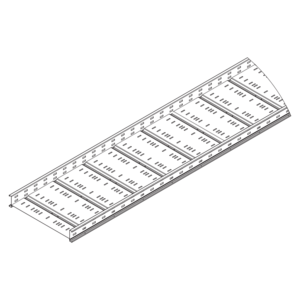

WPR 100
Wide-span cable tray, height = 100 mm

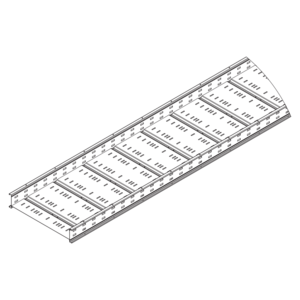

WPR 120
Wide-span cable tray, height = 120 mm

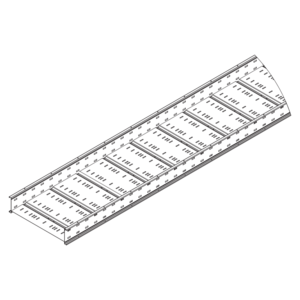

WPR 150
Wide-span cable tray, height = 150 mm
Downloads
de
en
de
en
es
de
de
en
en
de
Price list 2025 Building extension
Valid from February 1st, 2025, updated version from 31/03/2025.
Cable support systems - Complete catalogue
Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.
Wide-Span Cable Tray WPR, Installation Guide
Assembly Instructions
PDF, 1.75 MB
DownloadDownload
Wide-Span Systems, Technical Information
Technical Information
Certificate of Compliance for PohlCon Cable Trays
Certificate Number: UL-US-2232079-1
BK, BKOS, G, GI, GIS, GTD, GTDW, LGG, LGGS, R, RG, RGS, RI, RIS, RS, WPL, WPR, Cable Tray Fittings and connectors
PDF, 254.46 KB
DownloadDownload
Wide-Span Cable Tray WPR 100, 120, 150 - Compact overview
Compact overview of wide-span cable trays and accessories: WPR, WPRB, WPRA, WPRK, WPV, WPTR, WPHS, WPREB, WPD
PDF, 1.36 MB
DownloadDownload
