In addition to the covers, optional accessories in various materials and coatings are available for the STU 50 to supplement the cable support system, e.g. side connectors, separating strips, head plates, angle brackets and protective caps.
Vertical Ladder Accessories STU 50

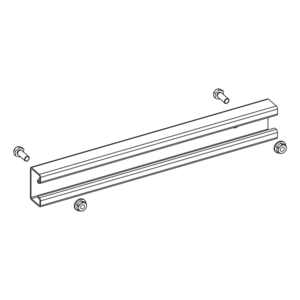

STLS
Rung

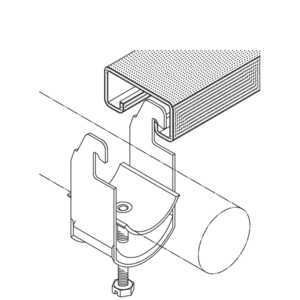

AC
Cable clamp for fastening to C profile rails
LGV 50
Cable ladder connector, height = 50 mm

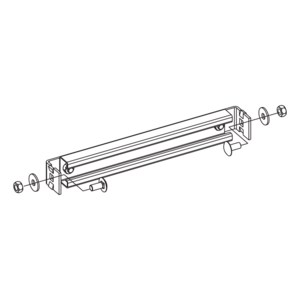

STUS 50
Rung
STR 50
Vertical ladder separating strip, height = 33 mm
STR 110
Vertical ladder divider, height = 33 mm
BGUQ 50
Bolted head plate turned 90°, STU 50
LH
Ladder bracket
BL 4
Mounting bracket

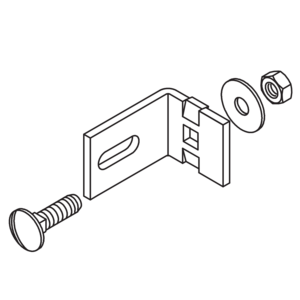

BL 6
Mounting bracket
SU 50/36
Protection cap, STU 50
SU 50/22
Protection cap, KHU 50

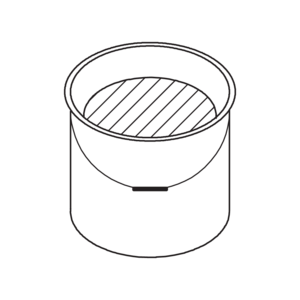

KZF
Cold zinc paint
KZS
Cold zinc spray
Downloads
de
en
de
en
es
de
en
de
en
Cable Route Technical Information
Technical Information for vertical ladders LGG, STU, ST and accessories.
Cable support systems - Complete catalogue
Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.
Installation Instruction Vertical Ladders
Assembly instruction for vertical ladders LGG 60, STU 50, STU 60, STU 62, ST 81, ST 82
Vertical ladder LGG, STU, ST - Compact overview
Compact overview for LGG 60, STU 50, STU 50-3E, STU 60, STU 62, ST 81, ST 82, LGV, LGTR, STD-A, RD, STLS, STUS
