PENTAFLEX® FTS crack control elements for precast walls consist of PENTAFLEX KB® joint sheets with the proven special coating and a wing made of galvanised sheet steel. This weakens the concrete cross-section and also allows the sealing plate to be attached. This creates predetermined cracks in precast walls. The sealing element seals the resulting crack against pressurised and unpressurised water. This stops shrinkage cracks from occurring randomly – instead they form at the planned points, which are also immediately sealed.
PENTAFLEX® FTS

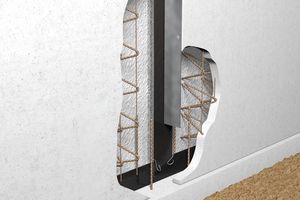

PENTAFLEX® FTS-Joint
Pre-cast concrete crack control element with joint sheet

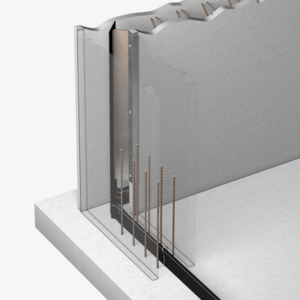

PENTAFLEX® FTS-Corner
Pre-cast concrete crack control element with joint sheet (corner section)
Vorteile
- German building code test certificate (abP) and ETA approval
- Quick and easy to install on the prefabricated formwork
- Reliable creation of shrinkage cracks
- Resistant to all organic waste water
- Simple and secure connection with PENTAFLEX KB® joint sheets
Downloads
de
en
ru
de
en
de
en
de
en
de
en
de
en
de
en
de
en
PENTAFLEX® - Technical information
Technical information

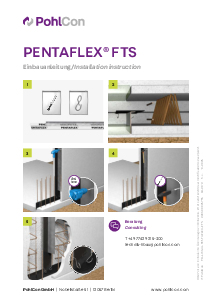

Installation instruction PENTAFLEX® FTS
Please observe these installation and application instructions before installation. Our application technology and consulting engineers will be happy to answer any questions you may have.
General building authority test certificate PENTAFLEX® KB, FTS, OBS, ABS, Modul (general technical approval certificate)
General Building Authority Test Certificate
ETA 15/0003 PENTAFLEX®
Approval
DGNB Product Declaration PENTAFLEX®
Environmental product declaration
Declaration of Performance PENTAFLEX®
Declaration
LEED Product Declaration PENTAFLEX®
Environmental product declaration
Price list 2026 Shell construction / facade
Valid from February 1st, 2026
