JML K cold-formed perforated mounting channels used in combination with the right bolts and accessories form a universal channel-screw connection that can be adapted to new load-bearing and fastening requirements at any time. They absorb tensile and transverse loads perpendicular to the channel axis. They are especially suitable for static (stationary) loads JML K perforated mounting channels can be used to fasten supply and disposal lines, electrical cables, cable trays or air-conditioning ducts reliably and easily. JML K perforated mounting channels can also be bolted directly onto the component in question.
Mounting Channel JML K, perforated
JML K 28/15
Mounting channels, cold-formed, perforated
JML K 28/28
Mounting channels, cold-formed, perforated
JML K 36/36
Mounting channels, cold-formed, perforated
JML K 38/17
Mounting channels, cold-formed, perforated

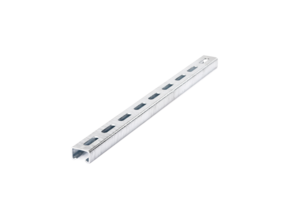

JML K 40/25
Mounting channels, cold-formed, perforated
JML K 41/41
Mounting channels, cold-formed, perforated
JML K 50/40
Mounting channels, cold-formed, perforated
Benefits
- Fast, efficient and reliable fastening of heavy loads
- Cost-effective series production through shorter planning and installation times
- Can be bolted on directly
- Available in stainless steel for corrosive environments
- Consistent material thickness
- Variable bolt spacing in longitudinal channel direction
- Free positioning and continuously variable adjustment
- Rapid replacement, retrofitting and relocation of components
- Suitable for DGNB and LEED certified projects
