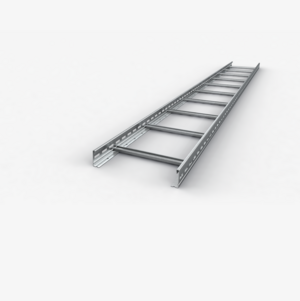

Cable ladders mounted on cable blocks with C-channels on a roof surface.
Cable routing on roof areas
Safe, flexible, efficient
When it comes to orderly power and cable distribution on roof areas, stable and reliable support structures are essential. For demanding requirements, rely on PohlCon's many years of expertise.
Our roof mounting system is a perfectly coordinated complete solution for demanding applications on the roof. Whether flat roofs of industrial halls, office buildings or technical centres: PohlCon's flexible support system protects the roof surface and impresses with maximum stability, durability and corrosion protection. Avoid costly substructures and benefit from our solutions for roof-mounted cables – in new buildings and renovations.
Orderly cable routing across a roof surface using cable trays.
Weather-resistant roof mounting system
Cable blocks and robust heavy-duty cable trays

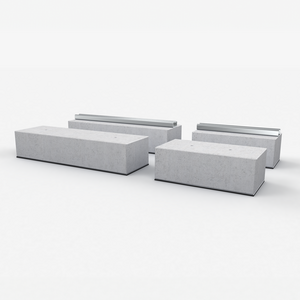

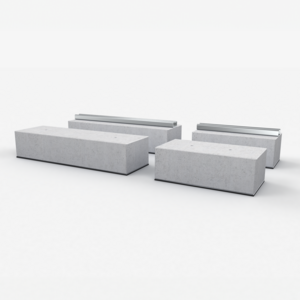

Our KFSC and KFSB cable blocks are ideal for securely supporting cable management structures. They distribute loads evenly and enable orderly cable routing. The integrated protective mat prevents damage to the roof covering and reduces construction time and installation effort. KFSC is equipped with an integrated, galvanised C-rail so that cable trays or support rails can be attached directly to it. KFSB offers maximum flexibility without a pre-installed rail – ideal for individual installation requirements. Both versions are available in different lengths and can be seamlessly integrated into existing Cable management systems.

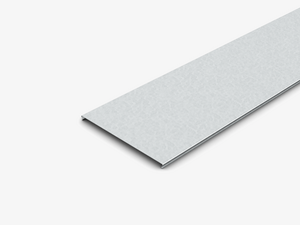

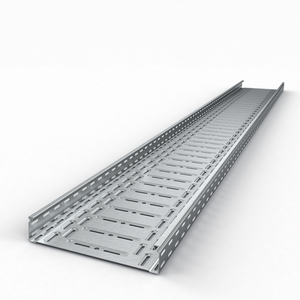

Our heavy-duty hot-dip galvanised cable tray is used for orderly and secure cable routing and can withstand even the most adverse weather conditions. Optionally available dividers reinforce the channel cover and provide additional stability; the tread resistance has been tested in accordance with DIN 50085. The hot-dip galvanised cover fits seamlessly into the overall system and reliably protects the cables from rain, snow and UV radiation. Specially designed storm protection brackets hold the cover securely in place even in strong winds. Even under demanding environmental conditions, the functionality, safety and durability of the entire roof installation are maintained.
Modular cable management systems for standard-compliant roof installations
Efficient planning and flexible systems
Our products are designed to make your work easier and optimise planning processes. Modular systems enable easy adaptation to project requirements, while high compatibility with other components from our range ensures maximum planning reliability.
Technical safety and standard-compliant implementation
High-quality BIM and CAD data and verified technical properties help you to implement your project precisely, durably and in compliance with standards. This results in safe roof installations that reliably meet the requirements of modern construction projects.
Cost-effective installation and long-lasting protection
Our cable management systems enable quick, clean installation, reduce assembly costs and offer a high degree of flexibility for individual projects. For builders and planners, this means low-maintenance roof installations with optimum protection for the building envelope and comprehensive technical support.
Product solutions for roof mounting
Your partner for roof installation
We are happy to advise you on planning and find the right product solution for your needs: with our products for cable routing on roof surfaces, you get coordinated systems that route power and data cables safely and flexibly to their destinations.
