In addition to the optional accessories, suitable covers in various materials and coatings are available to supplement the cable support system. They provide additional protection against contact, dirt, moisture and UV radiation.
Mesh Cable Tray Covers
GD
Mesh cable tray cover
GDR
Mesh cable tray cover with turning bolts
GID
Mesh cable tray cover
GIDR
Mesh cable tray cover with turning bolts

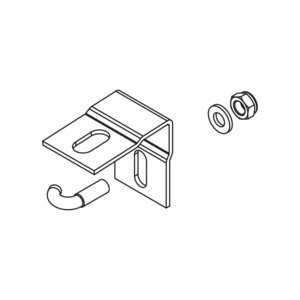

GD-SW
Mesh cable tray storm protection bracket

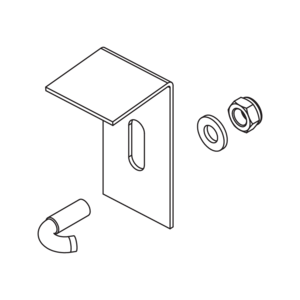

GID-SW
Mesh cable tray storm protection bracket
Vorteile
- Protects mesh cable trays against dirt, moisture, contact and UV radiation
- Suitable for indoor and outdoor use (when using the storm protection bracket)
Downloads
de
en
de
en
es
de
en
Mesh cable trays - Technical information
Technical Information
Cable support systems - Complete catalogue
Catalogue for cable trays, mesh cable trays, cable ladders, wide-span systems, vertical ladders, floor ducts, cable clamps, cable support troughs, rigid conduits, marine cable ladders, support systems, fastening accessories and more.
Cable trays - Assembly instructions
Assembly instructions for G 50, G 100, GI, GTD 30, GTDW, GVR, GV 30, GVD 30, GVU, GVK, GV-L, GBH, GBHK, GTR, GK-A, GD, GDR, GD-SW,
