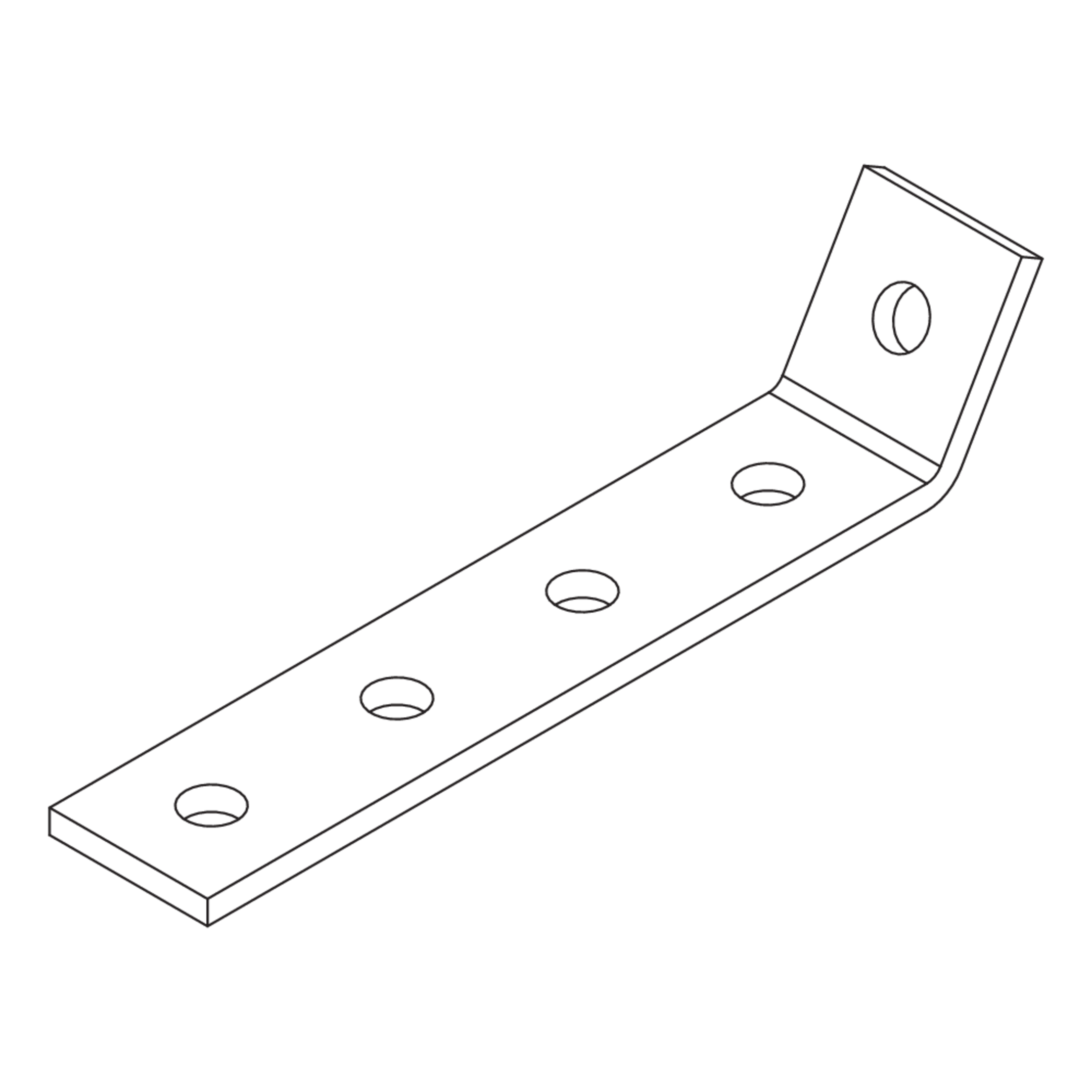

Channel connector, 60°

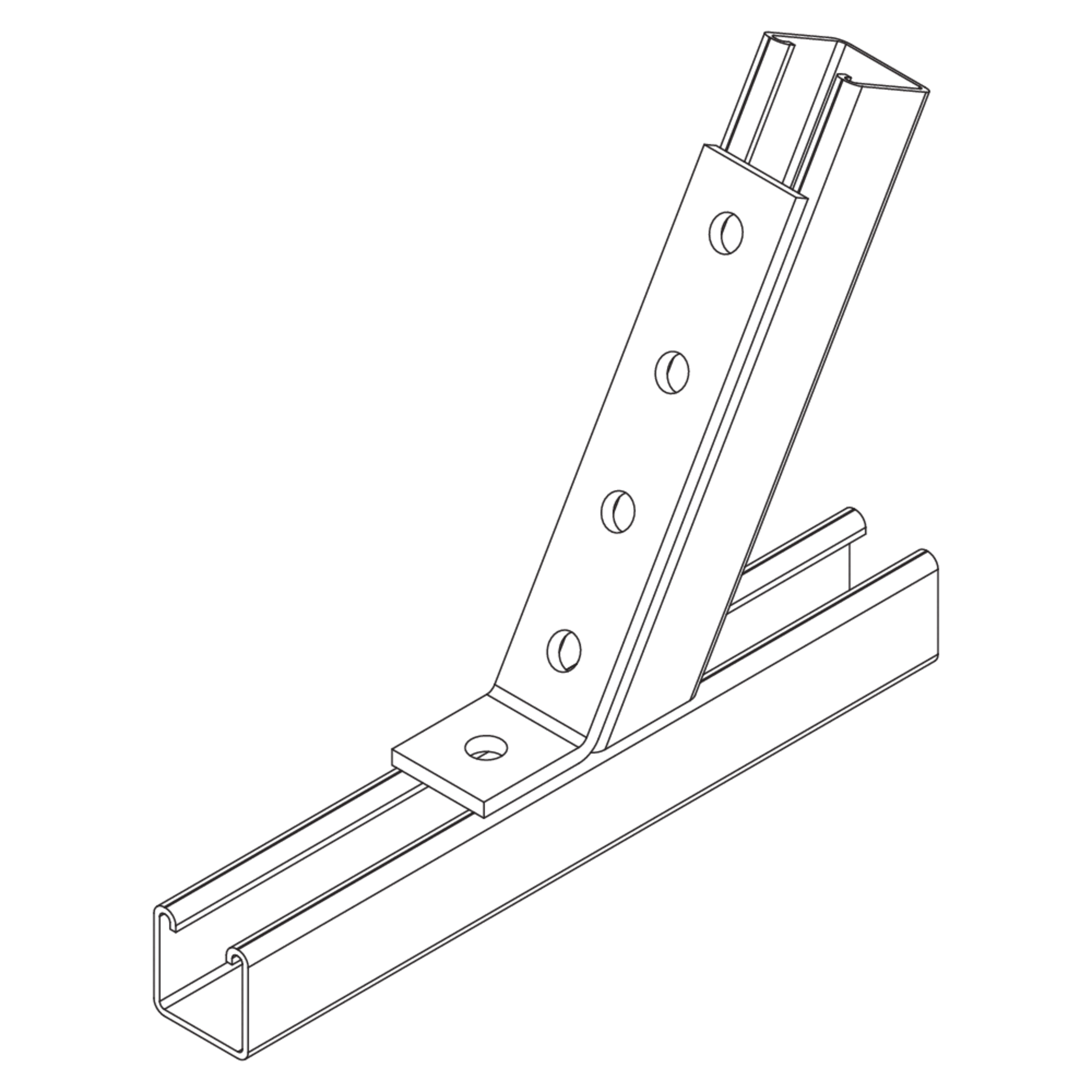

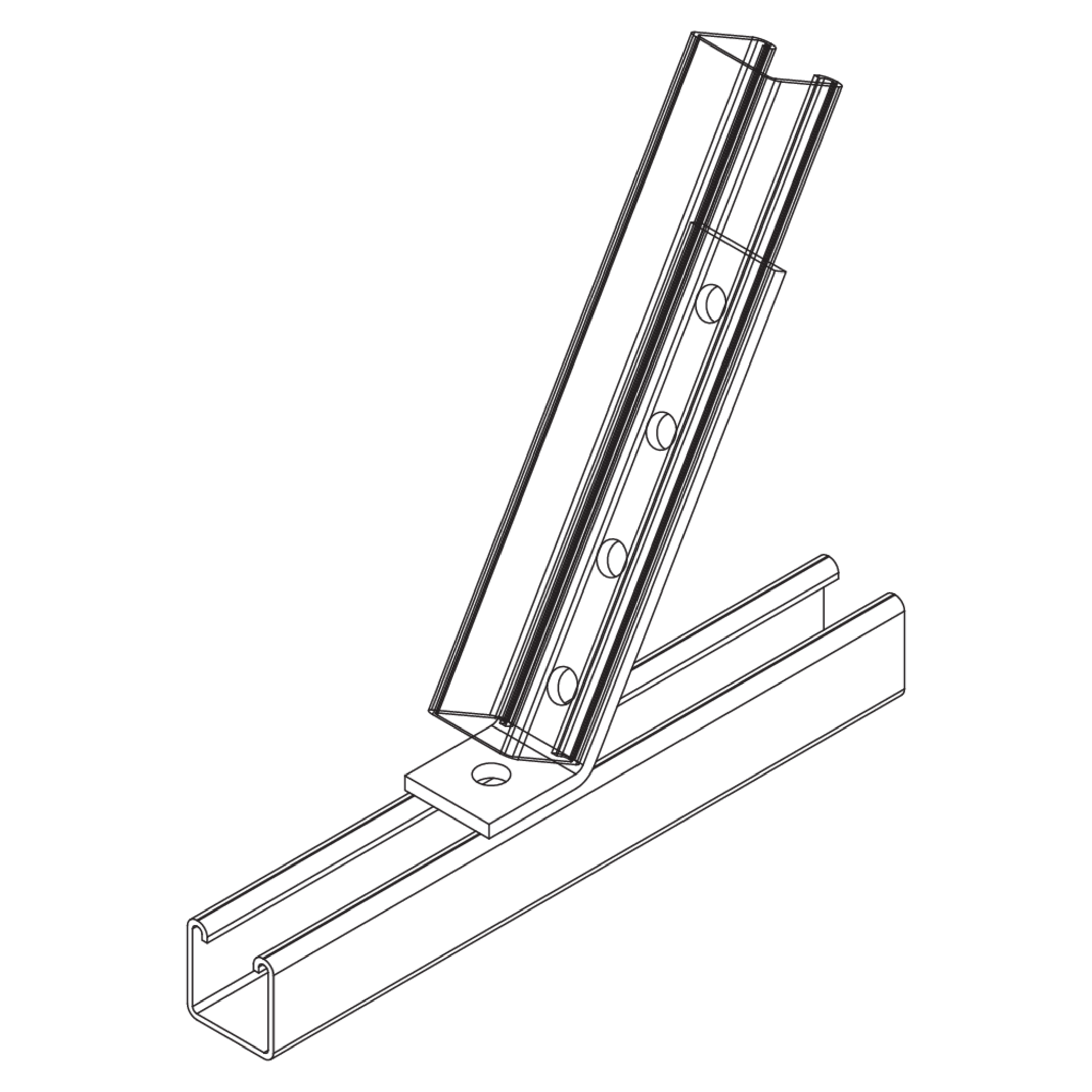

The channel connector AVL 60 is a corner connector with an angle of 60° with 1-3 perforation. It connects mounting channels as a junction or branch and is made of hot-dip galvanised steel.

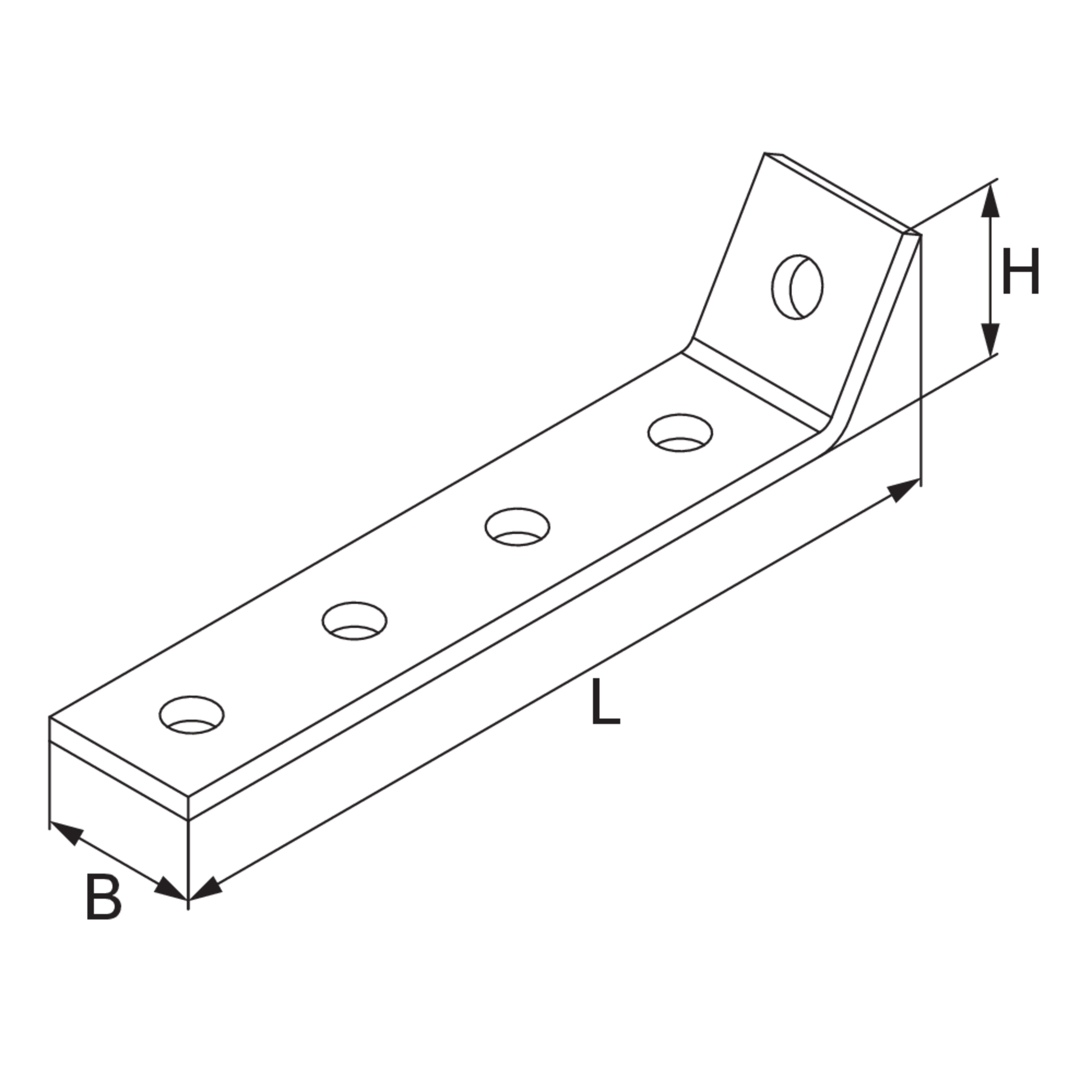

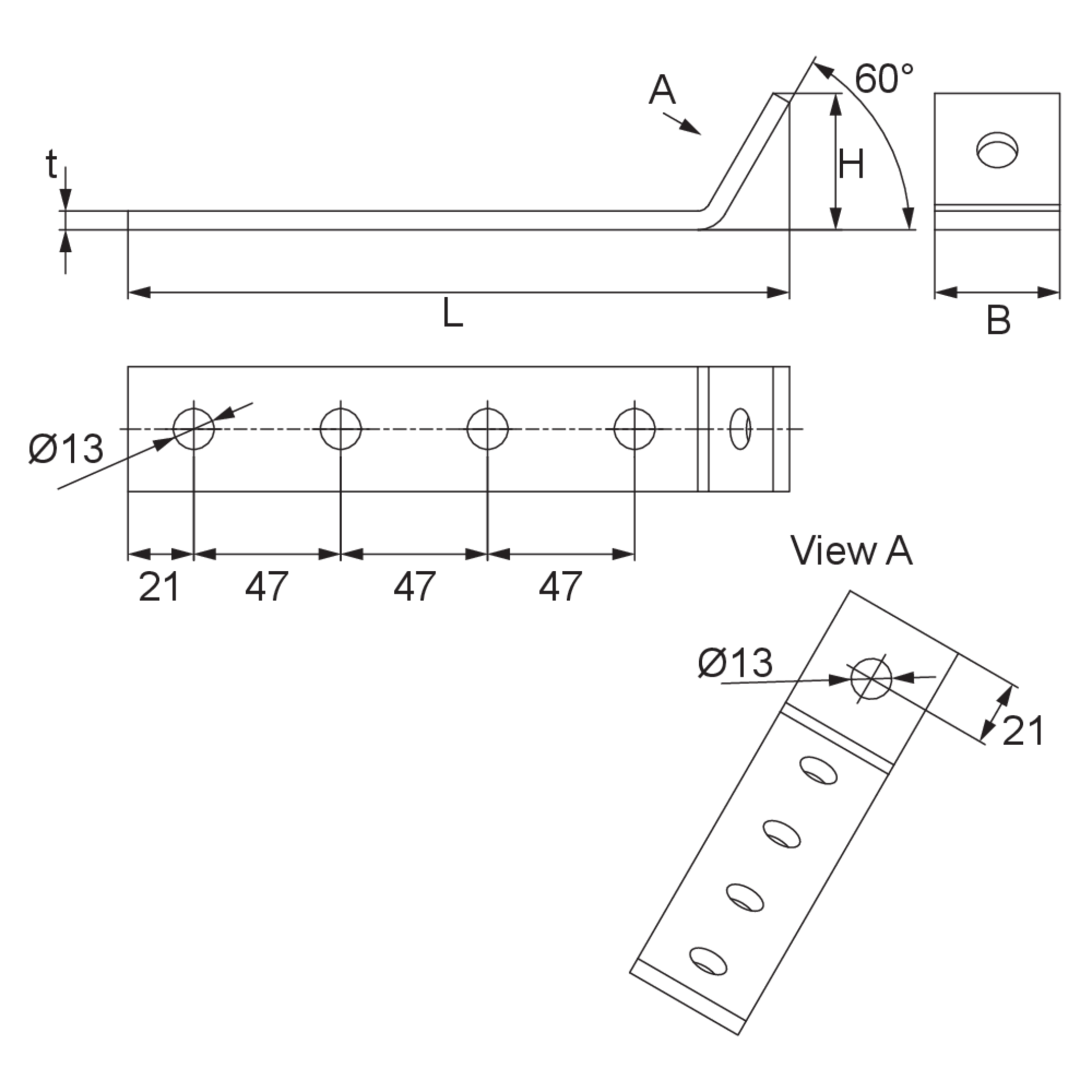

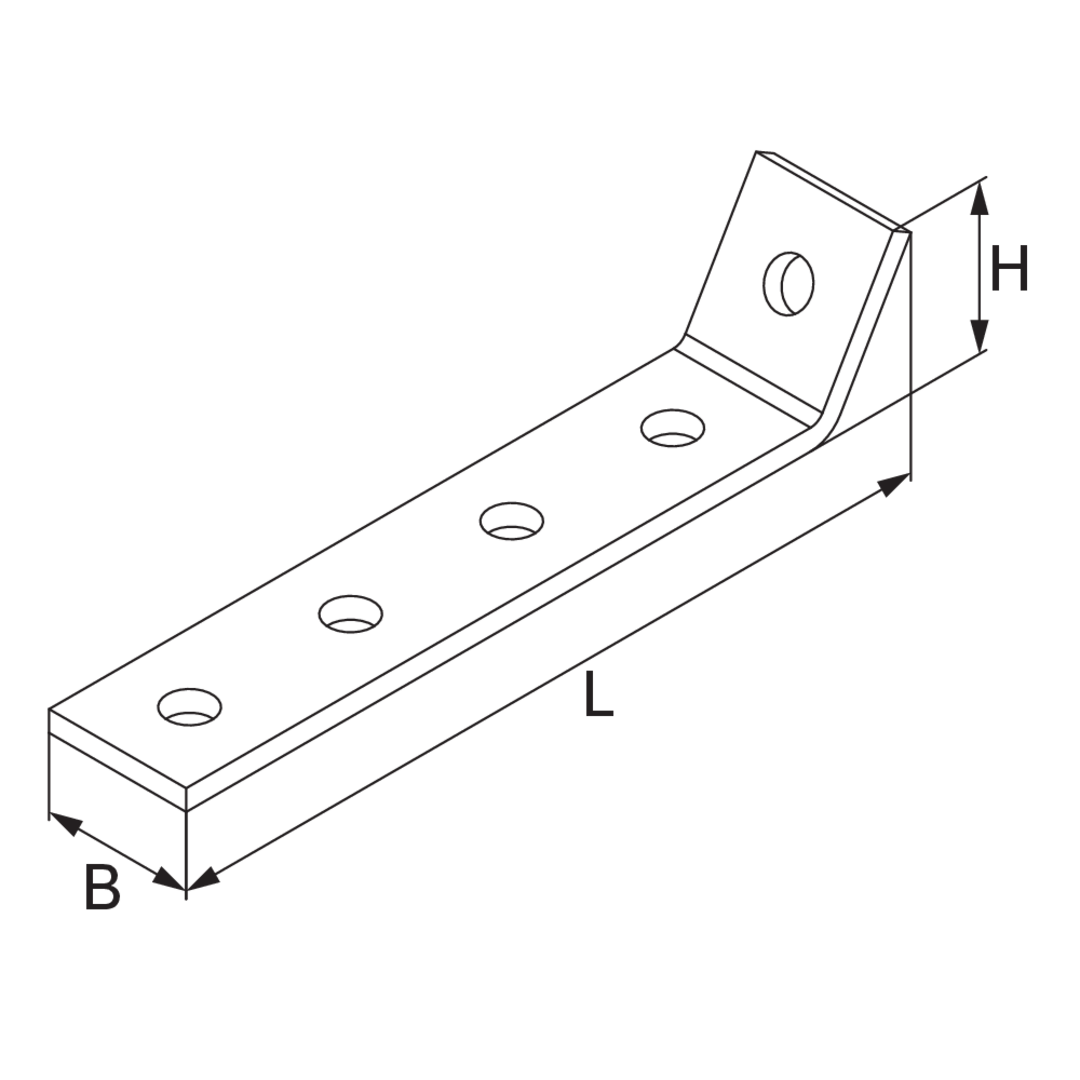

H
height
B
width
L
length
t
material thickness
W
Angle
G
Weight per storage unit
