Channel joint connector

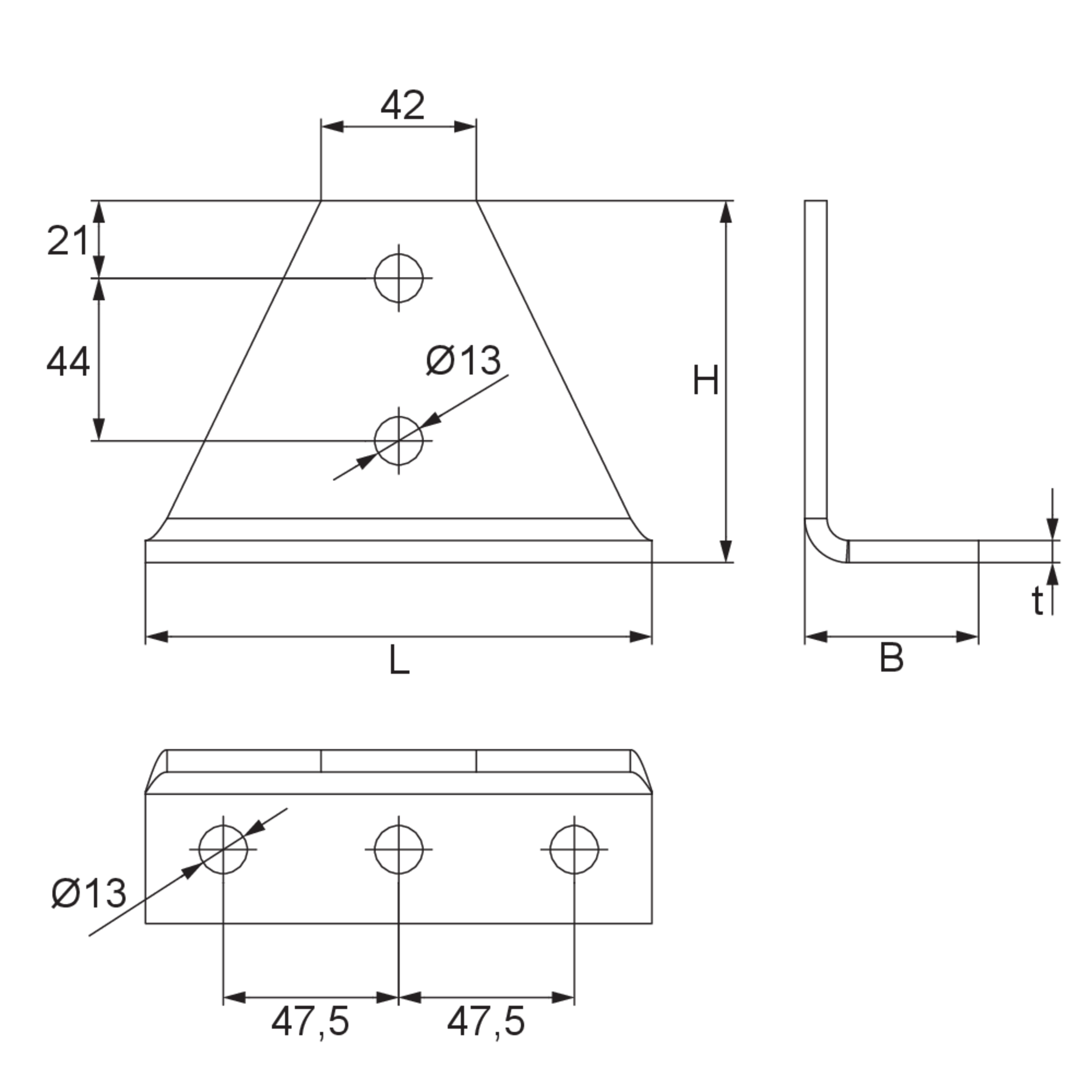

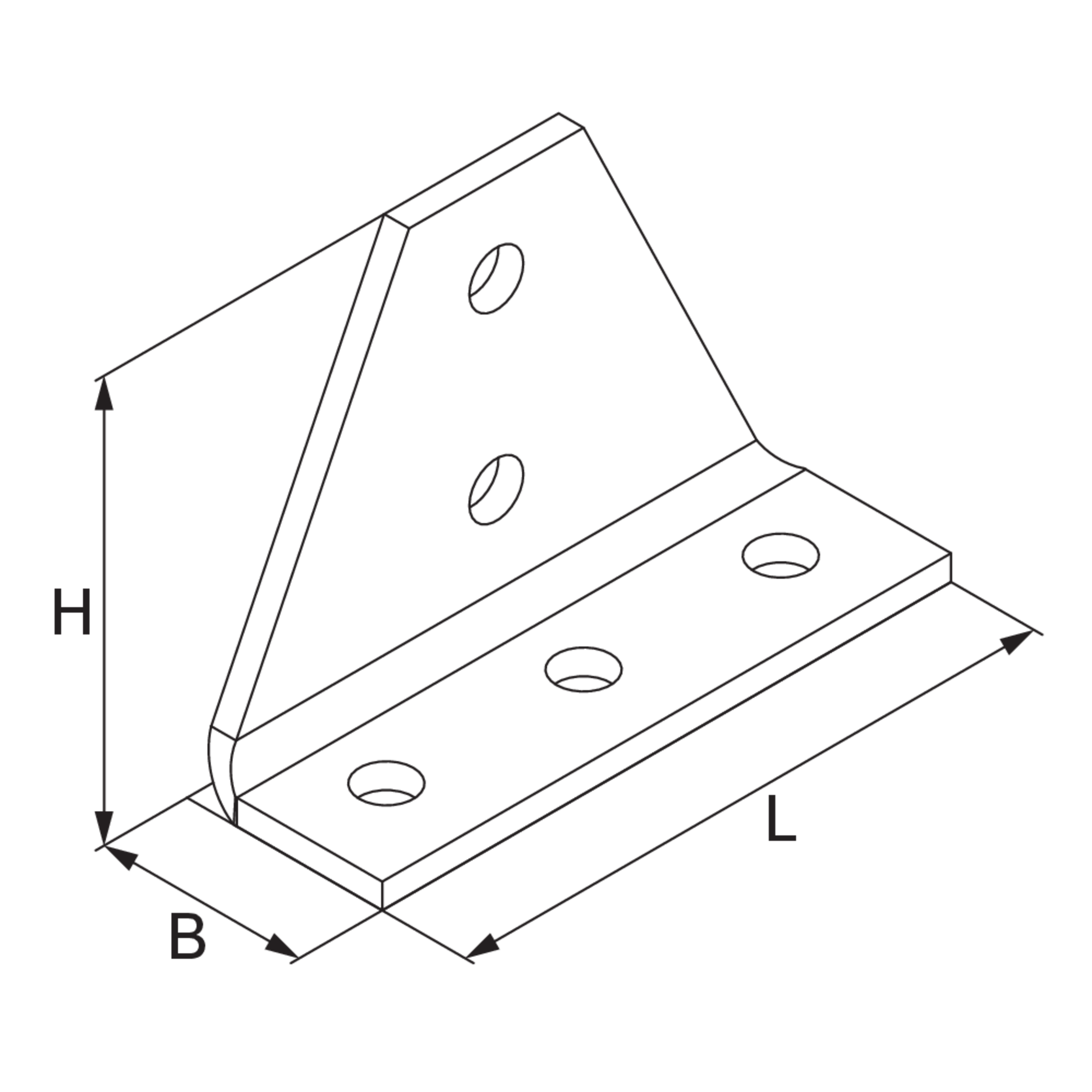

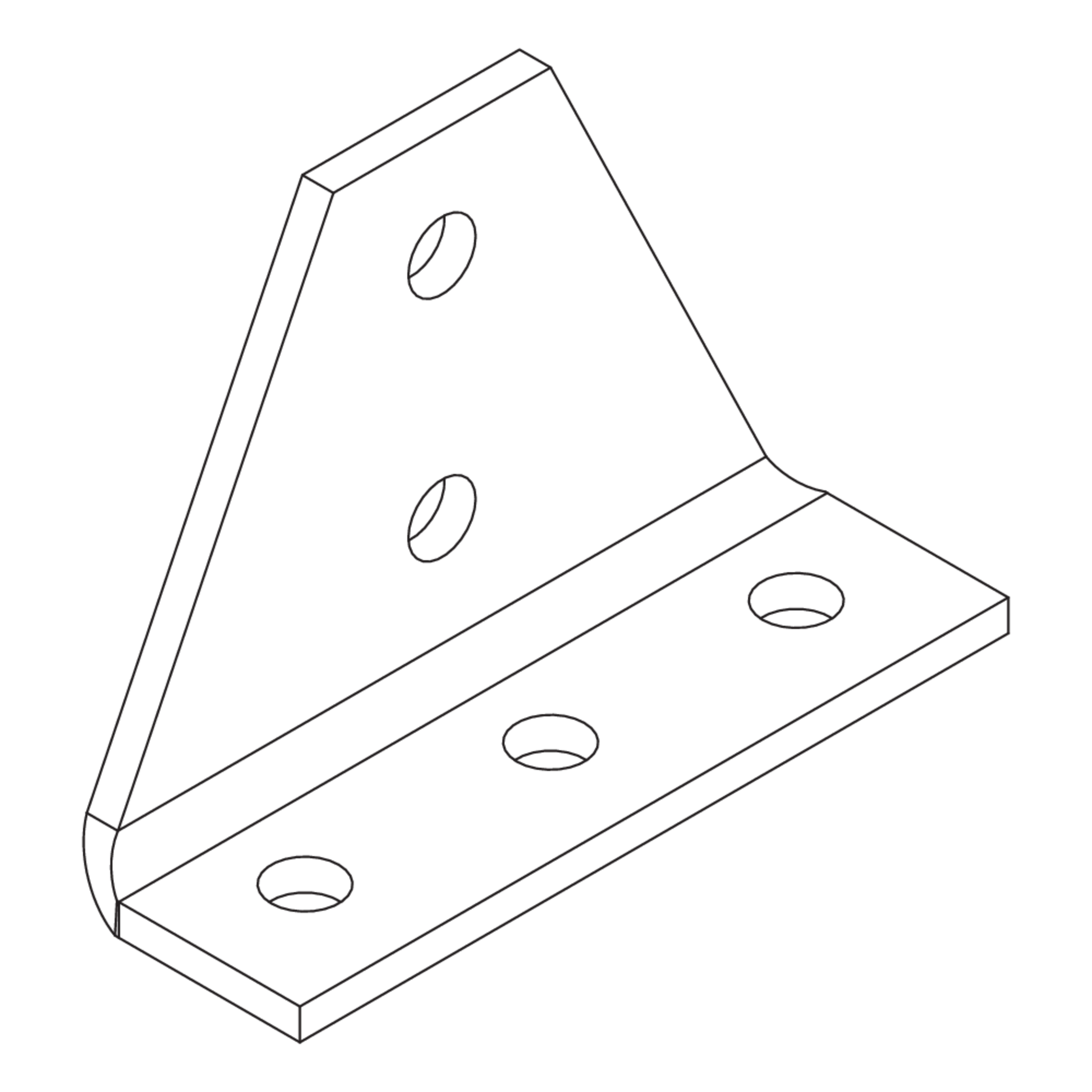

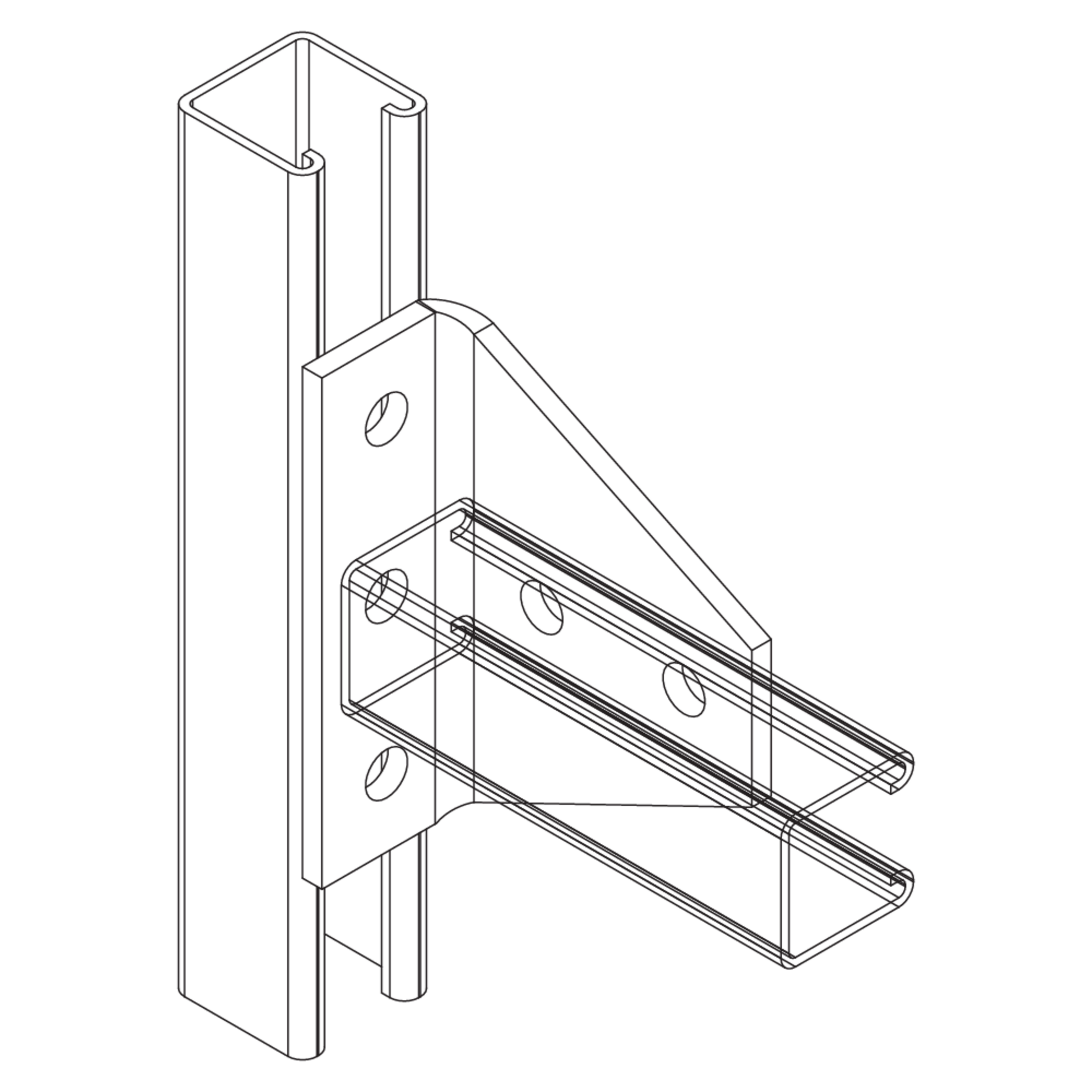

The channel joint connector AVLWBL is used to rigidly connect two mounting channels (A 41, KHA 41, KHAL 41) in a T-joint. It has Ø 13 mm fixing holes and is made of hot-dip galvanised steel. Fastening accessories must be ordered separately, depending on the application.
H
height
B
width
L
length
t
material thickness
W
Angle
G
Weight per storage unit
