Completely flexible assembly thanks to a wide range of easy-to-install formed parts for floor ducts. The formed parts include the flexible floor duct telescopic insert, horizontal and vertical bends, crossings and branches - i.e. elements that create changes of direction.
Floor Duct Formed Parts

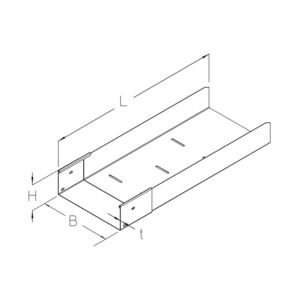

BKTE 100
Floor duct telescopic insert, height = 100 mm

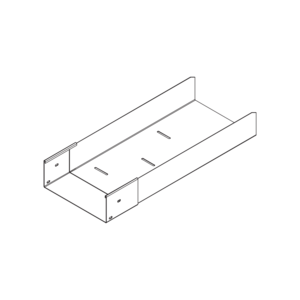

BKTE 110
Floor duct telescopic insert, height = 110 mm
BKB 100
Floor duct bend, height = 100 mm
BKB 110
Floor duct bend, height = 110 mm

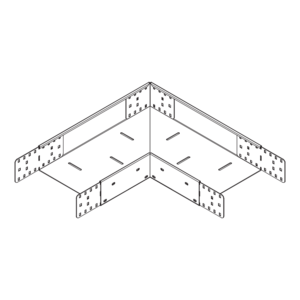

BKBG 100
Floor duct with mitre cut, height = 100 mm

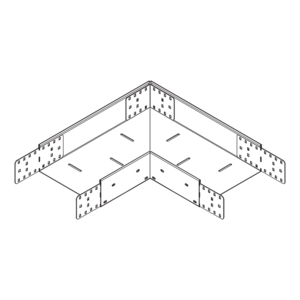

BKBG 110
Floor duct with mitre cut, height = 110 mm

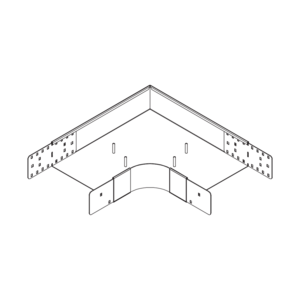

BKBR 100
Floor duct bend with radius, height = 100 mm

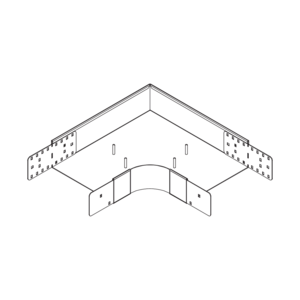

BKBR 110
Floor duct bend with radius, height = 110 mm
BKVB 100
Floor duct bend, variable, height = 100 mm
BKVB 110
Floor duct bend, variable, height = 110 mm
BKB45 100
Floor duct bend 45°, height = 100 mm
BKB45 110
Floor duct bend 45°, height = 110 mm

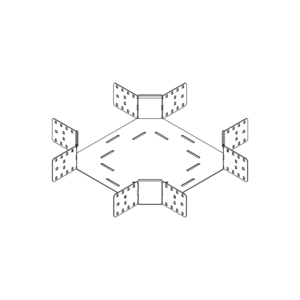

BKK 100
Floor duct crossing, height = 100 mm

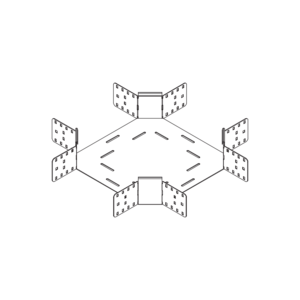

BKK 110
Floor duct crossing, height = 110 mm

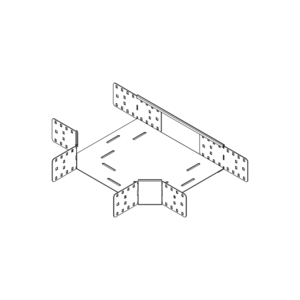

BKA 100
Floor duct tee, height = 100 mm

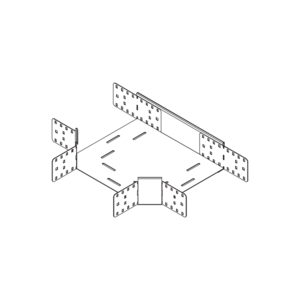

BKA 110
Floor duct tee, height = 110 mm
BKAA 100
Floor duct add-on tee, height = 100 mm
BKAA 110
Floor duct add-on tee, height = 110 mm
BKVAA 100
Floor duct attachment branch, variable, height = 100 mm
BKVAA 110
Floor duct add-on tee, variable, height = 110 mm
BKGR 100
Floor duct with miter cut, right, height = 100 mm

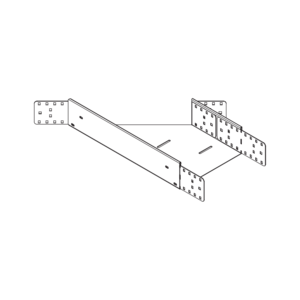

BKGR 110
Floor duct with miter cut, right, height = 110 mm
BKGL 100
Floor duct with miter cut, left, height = 100 mm
BKGL 110
Floor duct with miter cut, left, height = 110 mm

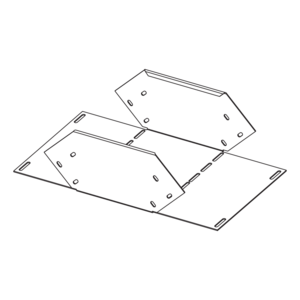

BKS 100
Floor duct riser, height = 100 mm
BKS 110
Floor duct riser, height = 110 mm
BKRKK 100
Floor duct reducer, height = 95 mm
BKRKK 110
Floor duct reducer, height = 105 mm
BKRKS 100
Floor duct reducer, height = 95 mm
BKRKS 110
Floor duct reducer, height = 105 mm
Vorteile
- Creates changes of the cable routing direction
- Easy to assemble
